Product Details


Model Power Stage Max Air flow Max Pressure Max Vacuum Weight
AT-70  5.5KW  1 Stage  1200 m3/h  241 mbar 224 mbar  93 kgs
AT-85  7.5KW  1 Stage  1444 m3/h  259 mbar 224 mbar 105 kgs
AT-100  11KW  1 Stage  1700 m3/h  241 mbar 220 mbar 130 kgs
AT-100  15KW  1 Stage  1700 m3/h  250 mbar 230 mbar 138 kgs
AT-150  15KW  1 Stage  2124 m3/h  290 mbar 270 mbar 145 kgs
AT-150  18.5KW  1 Stage  2124 m3/h  290 mbar 270 mbar 155 kgs
AT-200  22KW  2 Stage  3400 m3/h  241 mbar 224 mbar 198 kgs
AT-300  22KW  Stage  4248 m3/h  290 mbar 270 mbar 200 kgs
AT-300  30KW  Stage  4248 m3/h  290 mbar 270 mbar 223 kgs



Manvac High Speed Centrifugal Blower Performance characteristics:

1.Using the European IE2/IE3 standard (ABB or SIEMENS) high efficiency motor
2. Oil free operation, clean air output, without any oil pollution
3. Special transmission structure (impeller speed up to 13000~28400r/min)
4.The surface of the Teflon coating, suitable for operation of acidic and corrosive environment
5. Using Sweden SKF and Japan NSK genuine genuine high speed precision bearing, to ensure high speed and stable operation
6.Special fluid design, energy efficiency ratio of more than 70% (2 times higher than ordinary high-pressure blower)
7. Super large air volume and super power saving capacity (2~3 times production efficiency and power saving over 60%)

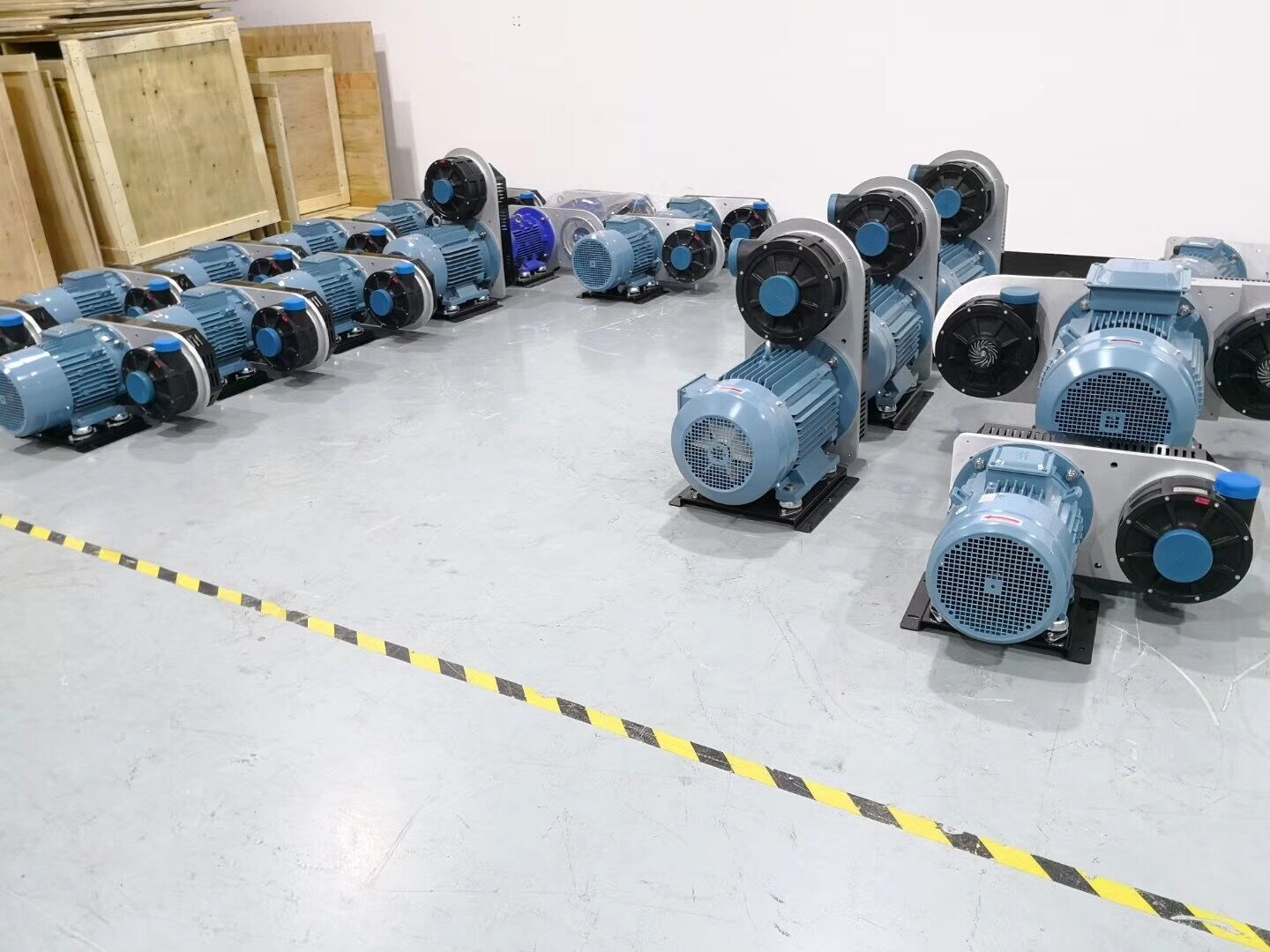

 15KW High Efficiency Motor High Pressure High Speed Centrifugal Blower Fan15KW High Efficiency Motor High Pressure High Speed Centrifugal Blower Fan

15KW High Efficiency Motor High Pressure High Speed Centrifugal Blower Fan
