Product Details

Model Power Stage Max Air flow Max Pressure Max Vacuum Weight
AT-70  5.5KW  1 Stage  1200 m3/h  241 mbar 224 mbar  93 kgs
AT-85  7.5KW  1 Stage  1444 m3/h  259 mbar 224 mbar 105 kgs
AT-100  11KW  1 Stage  1700 m3/h  241 mbar 220 mbar 130 kgs
AT-100  15KW  1 Stage  1700 m3/h  250 mbar 230 mbar 138 kgs
AT-150  15KW  1 Stage  2124 m3/h  290 mbar 270 mbar 145 kgs
AT-150  18.5KW  1 Stage  2124 m3/h  290 mbar 270 mbar 155 kgs
AT-200  22KW  2 Stage  3400 m3/h  241 mbar 224 mbar 198 kgs
AT-300  22KW  Stage  4248 m3/h  290 mbar 270 mbar 200 kgs
AT-300  30KW  Stage  4248 m3/h  290 mbar 270 mbar 223 kgs

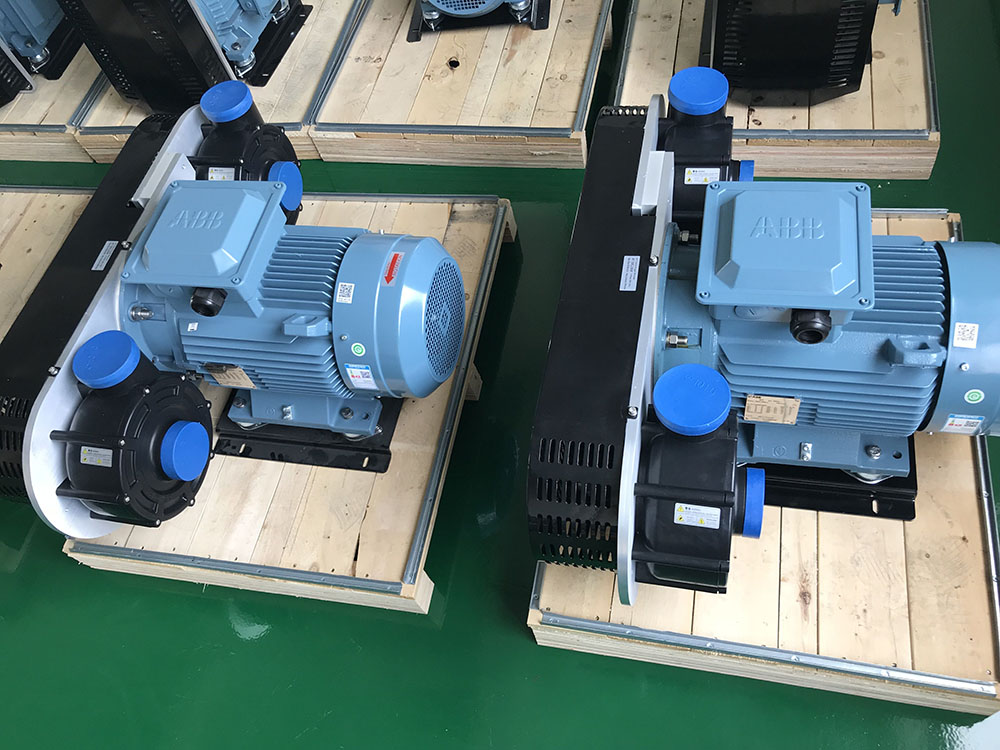

Manvac High Speed Centrifugal Blower Performance characteristics:


● Using the European IE2/IE3 standard (ABB or SIEMENS) high efficiency motor

● Oil free operation, clean air output, without any oil pollution

● Special transmission structure (impeller speed up to 13000~28400r/min)

● The surface of the Teflon coating, suitable for operation of acidic and corrosive environment

● Using Sweden SKF and Japan NSK genuine genuine high speed precision bearing, to ensure high speed and stable operation

● Special fluid design, energy efficiency ratio of more than 70% (2 times higher than ordinary high-pressure blower)
● Super large air volume and super power saving capacity (2~3 times production efficiency and power saving over 60%)
