Air Filter MF-12
Air Filter MF-12
Model:Air Filter MF-12
  • Phase:
  • Stage:
  • Frequency: (HZ)
  • Power: (kw)
  • Voltage: (V)
  • Current: (A)
  • AirFlow: (m3/h)
  • Vacuum: (mBar)
  • Pressure: (mBar)
  • Sound: (Db)
  • Weight: (kg)
Dimensions(L*W*H): (mm)
Product Details

Model PT D (mm) L (mm) H (mm) B (mm) Precision Air Flow (m3/hour) Weight (Kg)
MF-12 11/2 85 196 182 65 100 285 0.49



  •
  •
  •

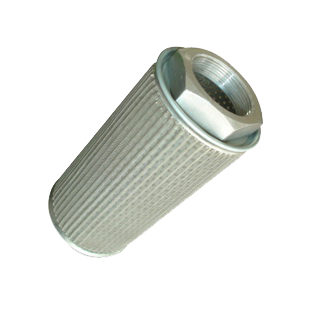

  • AIR FILTER
    •

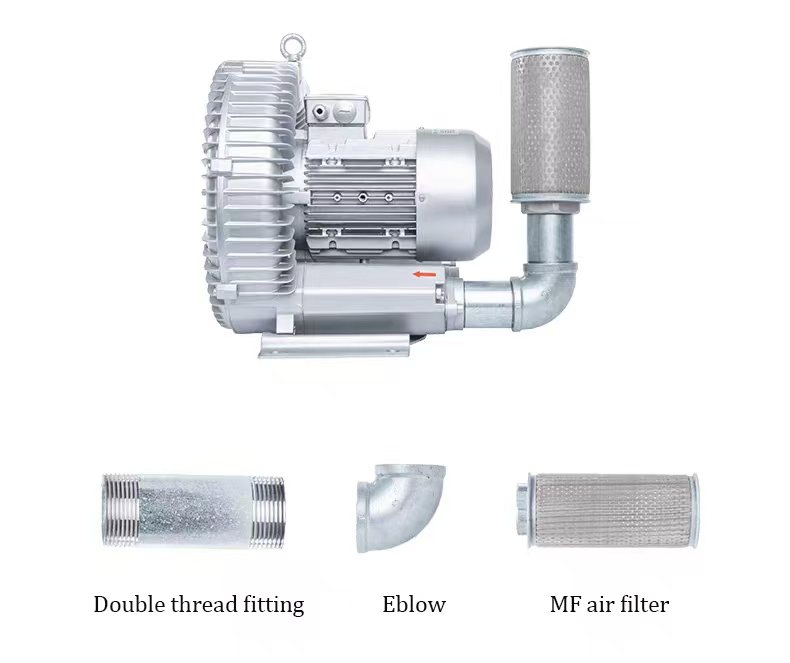

    • * Air filter is the inlet model and provides for all ring blower series applications.
    • * All air filters are cylindraceous and made by stainless net steel.
    • * Increase ventilation without act on blowers operation.
    • * All air filters can be safely cleaned and no maintenance required.
    • * For increase blowers service life, air filter is recommended to append.

  Type
     PT

 D mm   H mm   H1 mm  B mm   Weight kg  Fitration Mesh
MF-08   1" 56 169 153 46 0.19 100
MF-10   1/4" 70 184 171 54 0.29 100
MF-12  1 1/2" 84 193 180 65 0.40 100
MF-16  2" 102 215 199 75 0.57 100
MF-20  2 1/2" 159 353 326 90 1.14 100
MF-24  3" 159 353 326 105 1.18 100
MF-32  4" 208 353 338 147 2.95 100
