Product Details

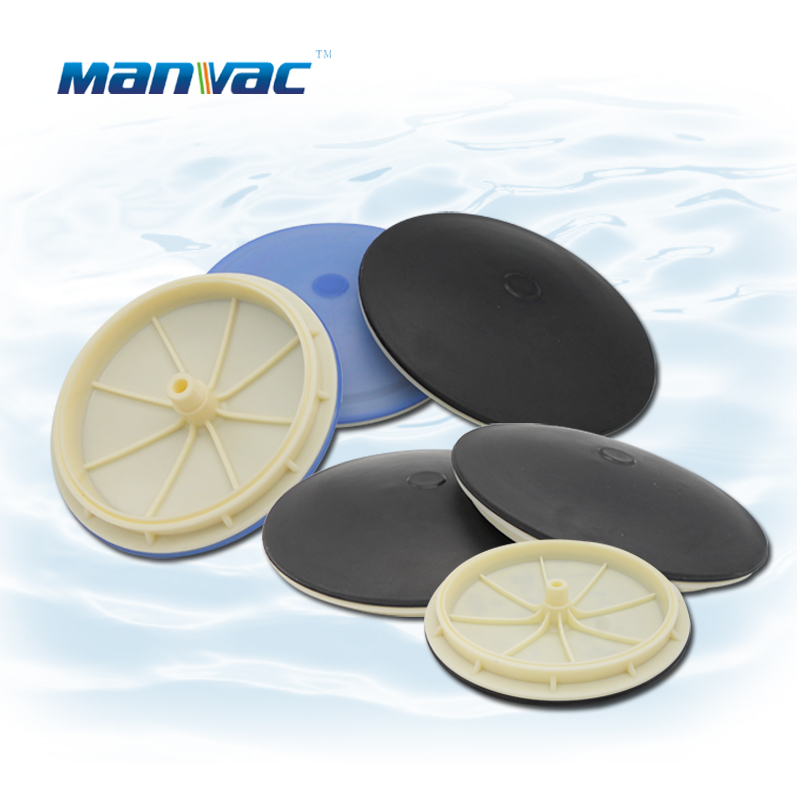

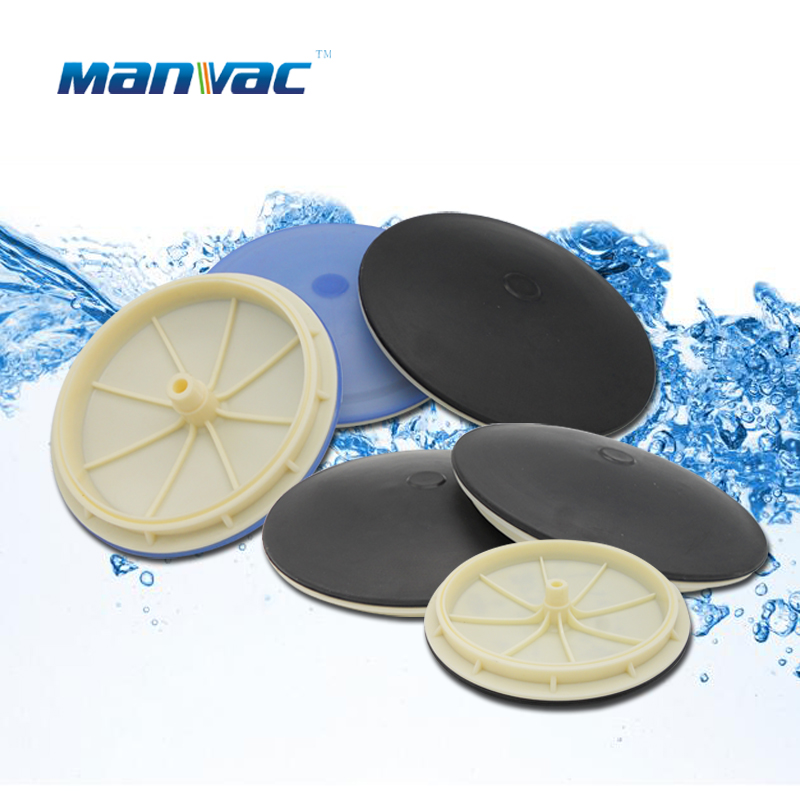

 Industrial Aeration Fine Bubble Disc Diffuser for Wastewater Treatment

High oxygen Aerator Membrane Fine bubble Disc Diffuser features a unique split pattern and slit shapes,
which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency.
A much highly effective and integrated check valve enables the aeration zones to be easily shut down
for air-on/air-off applications.

Model 215mm Disc Diffuser 260mm Disc Diffuser 300mm Disc Diffuser
Size 8 inch 9 inch 11.8 inch
Bubble Type Fine bubble Fine bubble Fine bubble
MOC EPDM/Silicon /PTFE membrane EPDM/Silicon /PTFE membrane EPDM/Silicon /PTFE membrane

Strengthened PP+GF(glass fiber) carrier plate Strengthened PP+GF(glass fiber) carrier plate Strengthened PP+GF(glass fiber) carrier plate
Connector 3/4 NPT 3/4 NPT 3/4 NPT
Bubble Size 1-2mm 1-2mm 1-2mm
Flow Range 1-6m³/h 1-8m³/h 1-10m3/h
Slit Quantity 5000 8900 10000
Service Area 0.2-0.64m² 0.25-1.0m² 0.3-1.2m2
Service Life >5 year >5 year >5 year
