stable low pressure ring blower for Natural gas combustion-supporting machine

The main accessories of PF series blower are all made of ADC-12 high-strength aluminum die-casting, and the impeller is designed as a multi-wing impeller, which is made up of 28 blades and impeller disks. The blades are made according to the hydrographic cambered surface, which can achieve the characteristics of high wind speed and large air volume.
FEATURES AT A GLANCE

          Left side                        Frontage                     Right side




TYPE
POWER
VOLTAGE
CURRENT
VACUUM
AIR FLOW
WEIGHT
1 PHRSE
PF75-02
0.2
220
1.5
0.5
5
10
PF100-05
0.4
220
2.5
1
8
13
PF125-1
0.75
220
5
1.1
14
17
PF150-2
1.5
220
9
1.3
28
30
3 PHASE
PF75-02
0.2
220/380
1.1/0.9
0.7
6
10
PF100-05
0.4
220/380
1.9/1.2
1.2
10
13
PF125-1
0.75
220/380
1.3/1.9
1.4
17
17
PF150-2
1.5
220/380
5.5/3.5
1.9
33
30
PF150-3
2.2
220/380
8/5
2.5
37
33
PF200-5
3.7
220/380
13/7.5
3.8
63
49

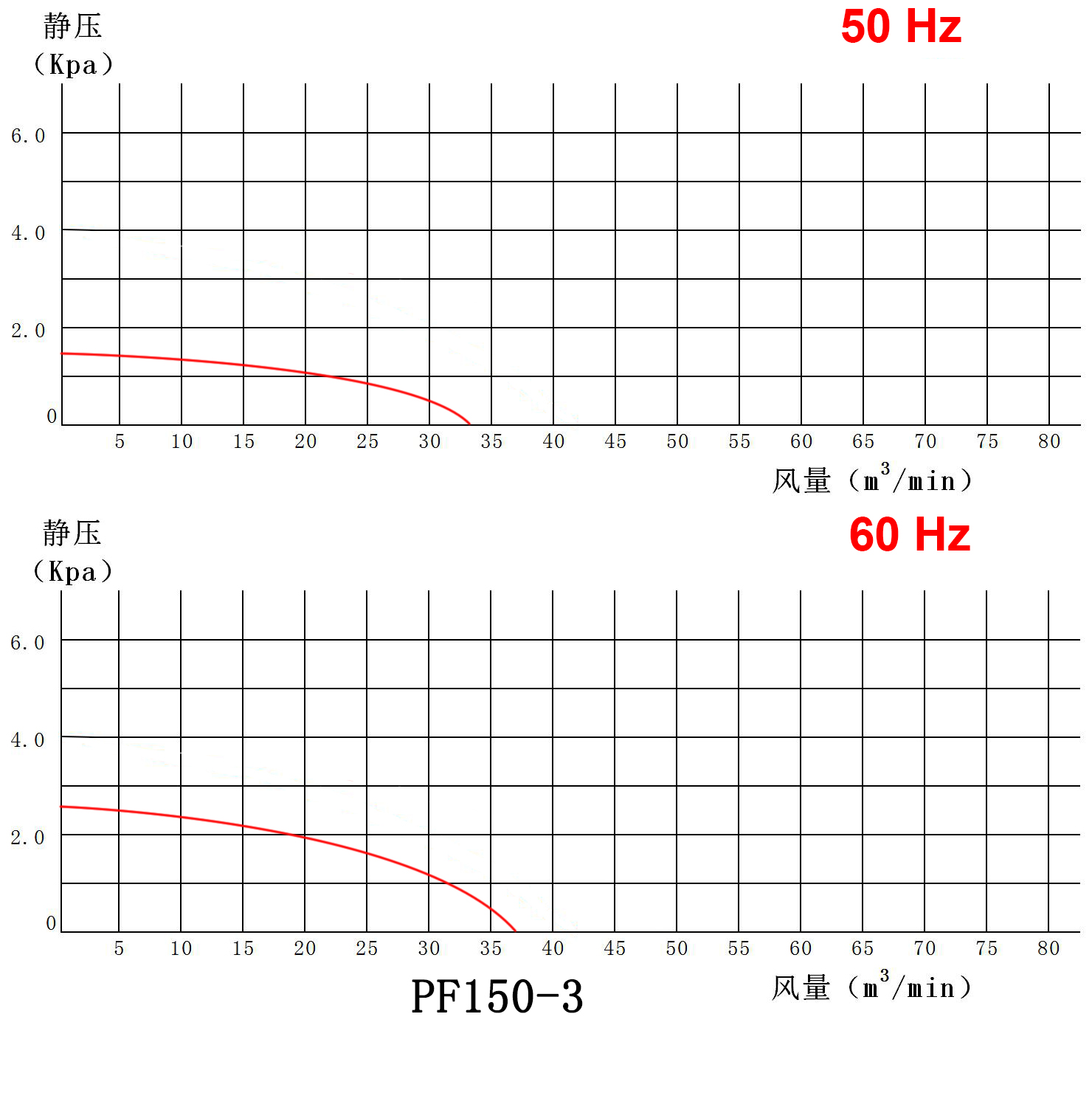

Performance graph
