Product Details

 Product Overview

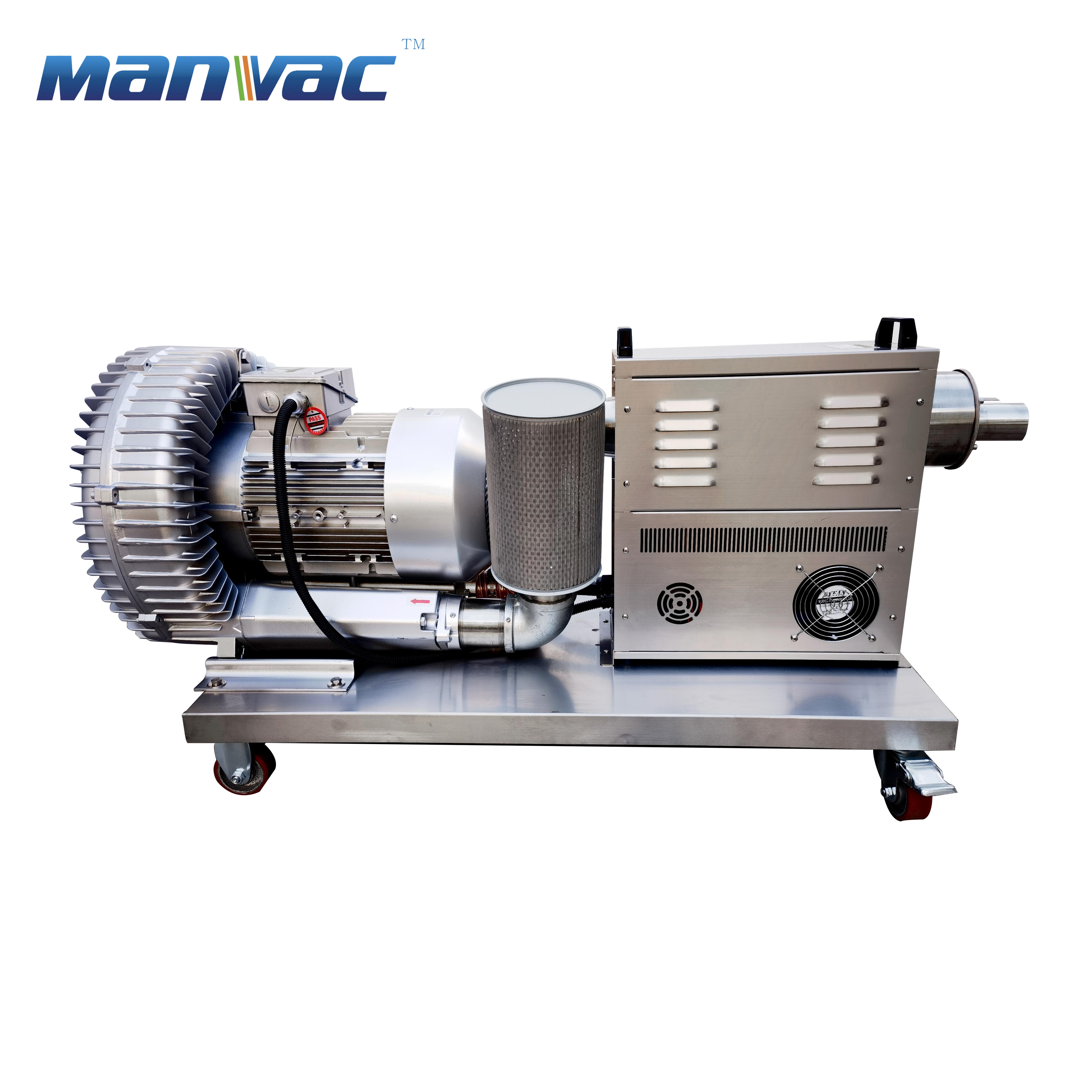

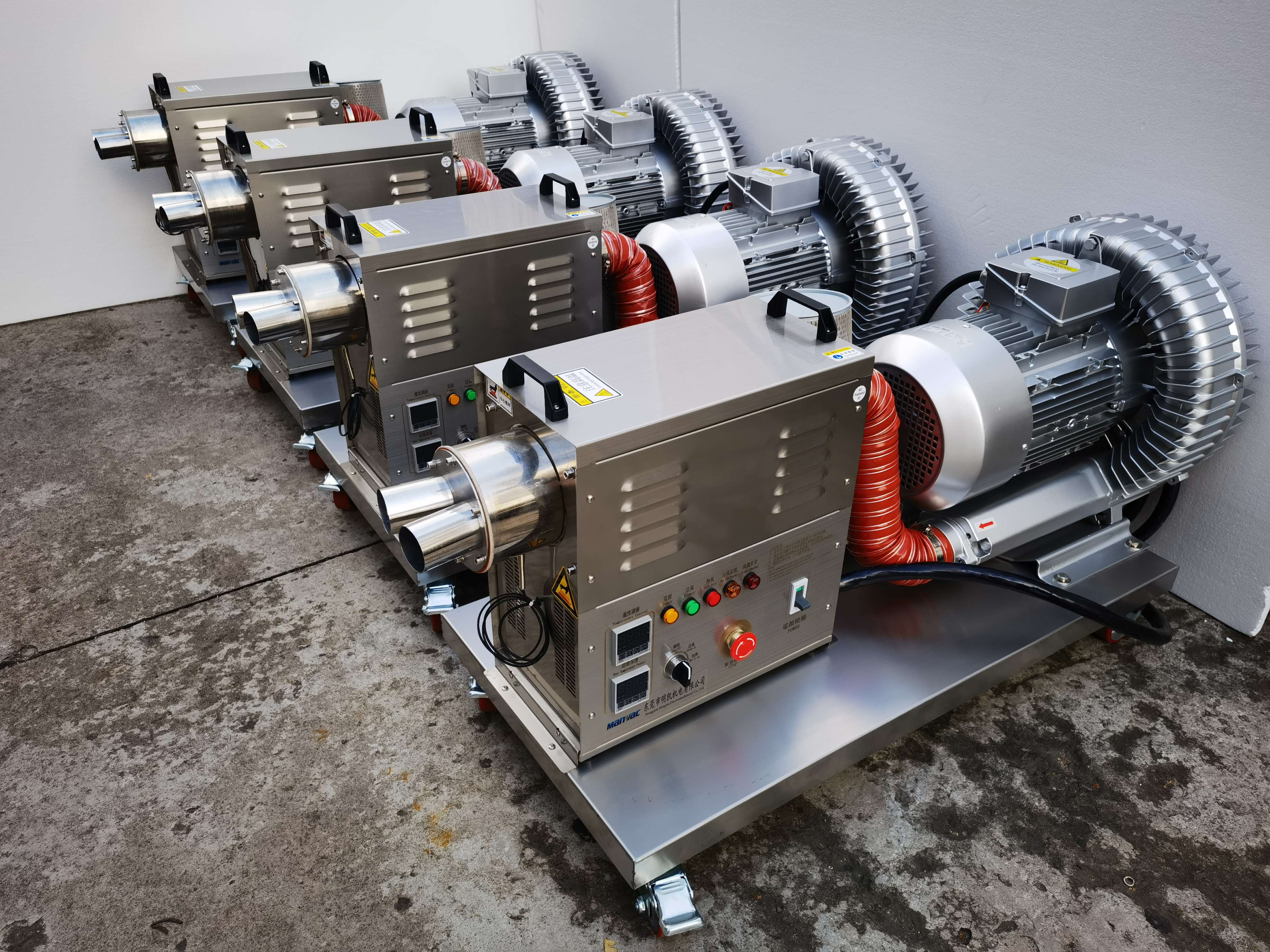

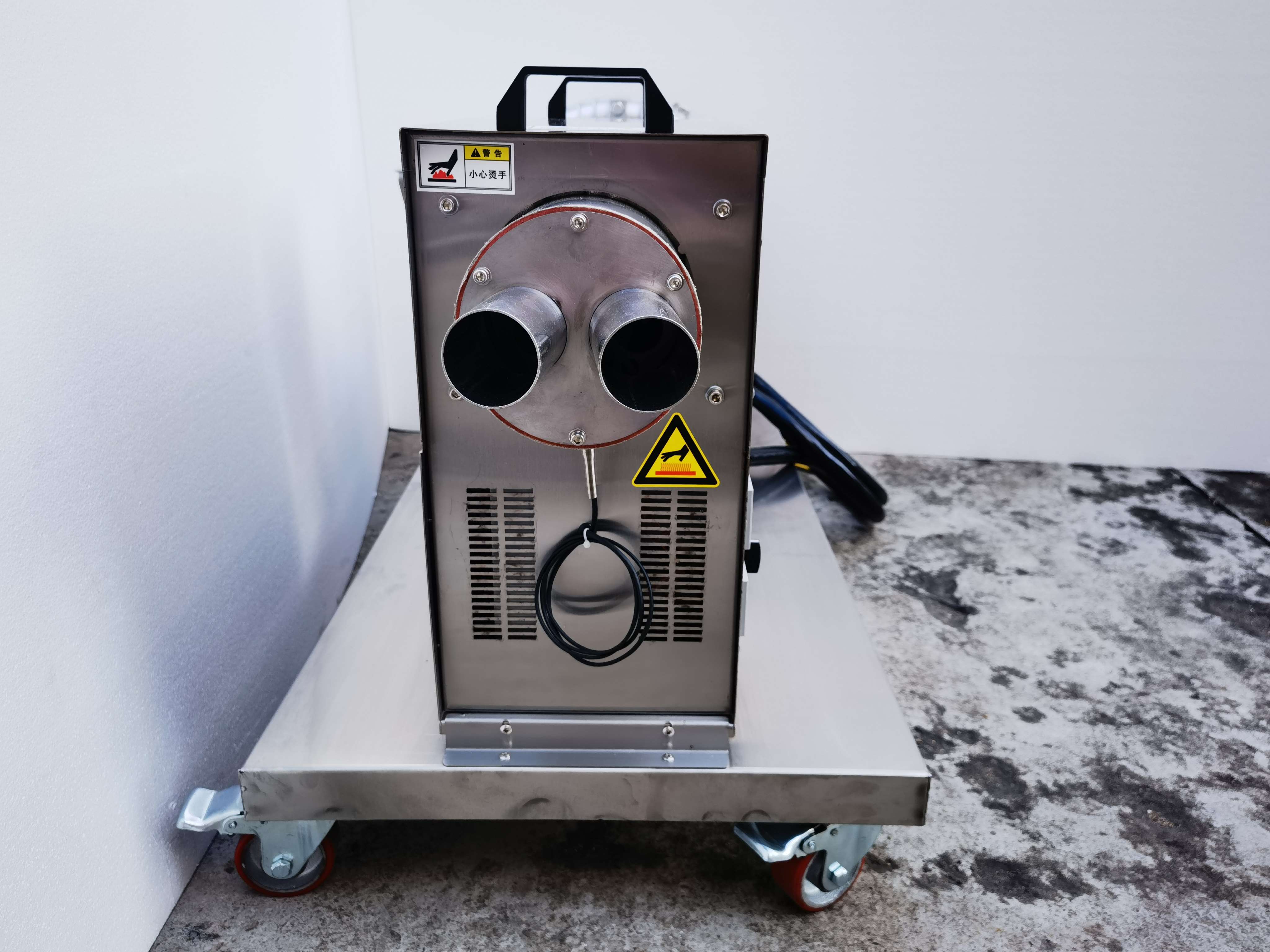

Industrial hot blower

Hot air blower is suitable for heating and drying in dry workshop, heat source equipment in drying room and heating in areas with small air flow. All kinds of industrial plants, workshops and steelmaking. Coal mine heating, preheating and drying of various construction sites, drying of anticorrosive inner walls of pipelines, speeding up the drying of paints, etc., and rescuing construction sites in winter. Warming, preheating and warming of the machine. Chemical, plastic and other products are dried, food is dried after cleaning, and heat-shrinkable packaging is used as an example.
FEATURES AT A GLANCE
High Efficency
Energysaving
Environmental
100% oil free design,low shake,stable performance.A large number of installed instance proved their efficiency optimization, operation safety, widespread application and the best reliability.

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
    Model
Phase
  Weight
    (KG)
  Power
   (KW)
  Voltage
     (V)
   Max   airflow
  (m3/h)
   Max vacuum
  (mbar)
   Max  pressure
   (-mbar)
                                                                                                        50HZ
2MV 210 H06
3
10
0.4
200-240
80
130
-120
2MV 310 H06
3
11
0.55
200-240
100
120
-110
2MV 310 H16
3
12
0.75
200-240
100
150
-150
2MV 410 H06
3
13
0.75
200-240
145
120
-120
2MV 410 H16
3
16
0.85
200-240
145
160
-160
2MV 410 H26
3
17
1.3
200-240
145
200
-170
2MV 510 H06
3
20
0.85
200-240
210
100
-110
2MV 510 H16
3
22
1.3
200-240
210
170
-170
2MV 510 H26
3
23
1.6
200-240
210
190
-200
2MV 510 H36
3
25
2.2
200-240
210
270
-220
2MV 610 H06
3
25
1.6
200-240
265
180
-170
2MV 610 H16
3
28
2.2
200-240
265
220
-235
2MV 610 H26
3
34
3.0
200-240
265
280
-280
2MV 710 H06
3
27
1.6
200-240
318
150
-160
2MV 710 H16
3
30
2.2
200-240
318
200
-210
2MV 710 H26
3
36
3.0
200-240
318
290
-270
2MV 710 H36
3
40
4.0
200-240
318
330
-290
2MV 810 H07
3
54
4.0
345-415
530
200
-200
2MV 810 H17
3
63
5.5
345-415
530
300
-300
2MV 810 H27
3
66
7.5
345-415
530
430
-320
2MV 910 H07
3
93
8.5
345-415
1050
210
-210
2MV 910 H17
3
116
12.5
345-415
1050
270
-280
2MV 910 H37
3
126
18.5
345-415
1050
460
-340

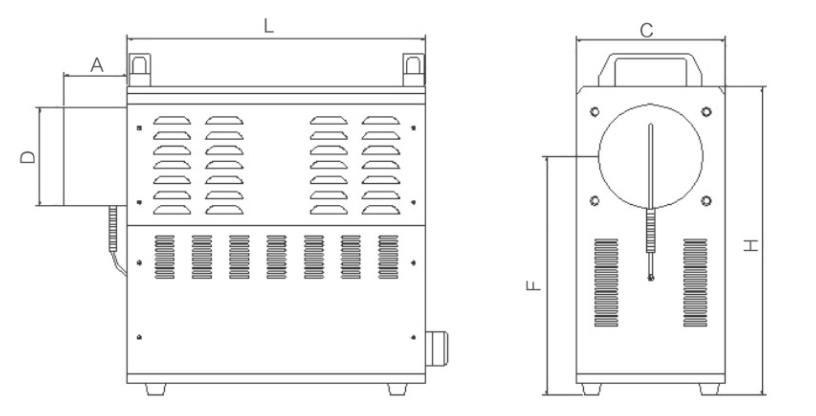

POWER
A(cm)
C(cm)
D(cm)
F(cm)
H(cm)
L(cm)
3-15KW
8.5
20
13.3
31
41
40
10-30KW
8.5
26
13.3
36
45
52
30-60KW
13
36
21.9
43
60
70
PRODUCT CONFIGURATION

Characteristic 1.

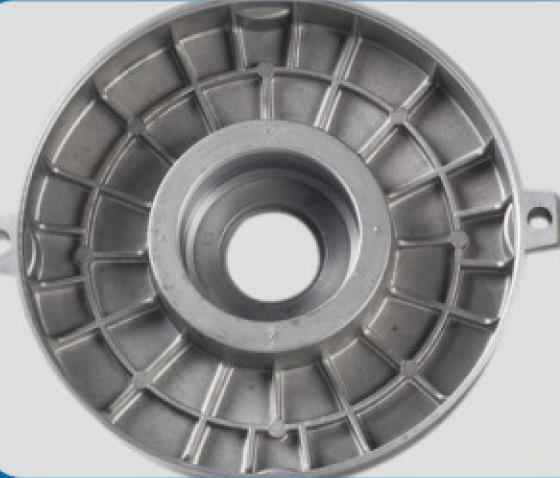

Steel ring and cast aluminium layer line inside of MV moforback coi/erbearing base

Characteristic 2.

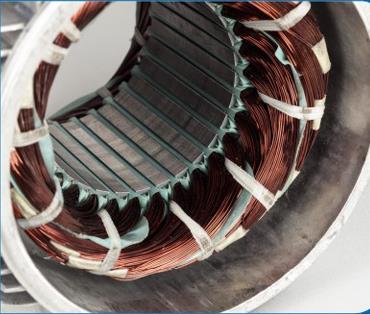

Enlarge electric connection box, easy to operate. Nut and screw totally applied copper material. Increase diameter and length of connection terminal. Electrical conductivity better and stable.

Characteristic 3.

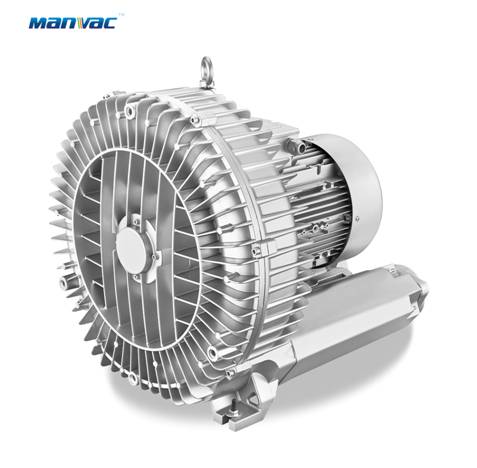

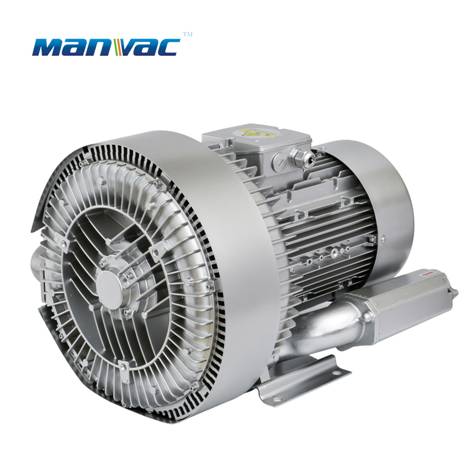

MV Ring blower, increased 10% the external diameter and thickness of rotor. Enlarge the motor shell,protect blower from overload
Successful Project

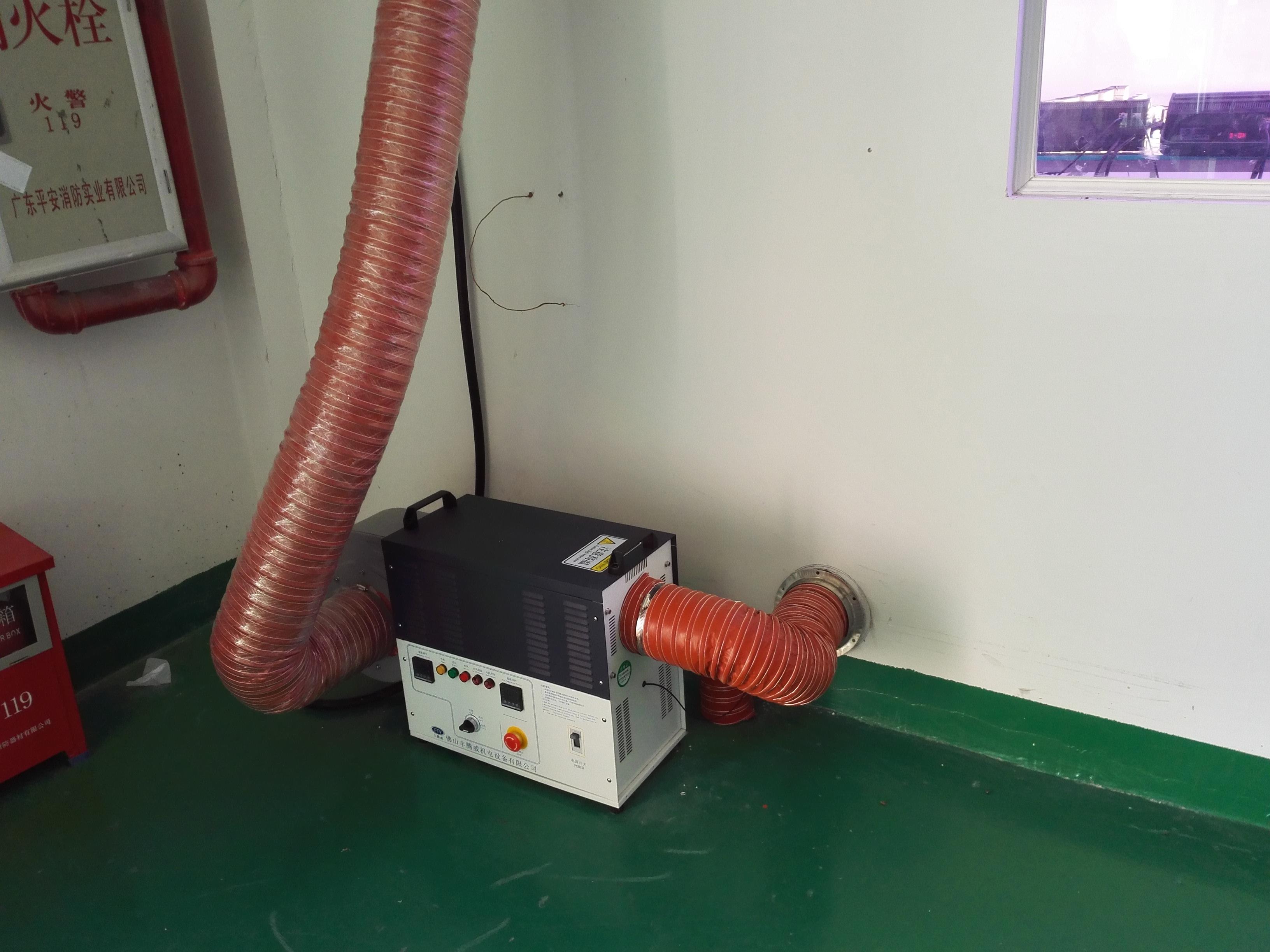

Indoor air heating

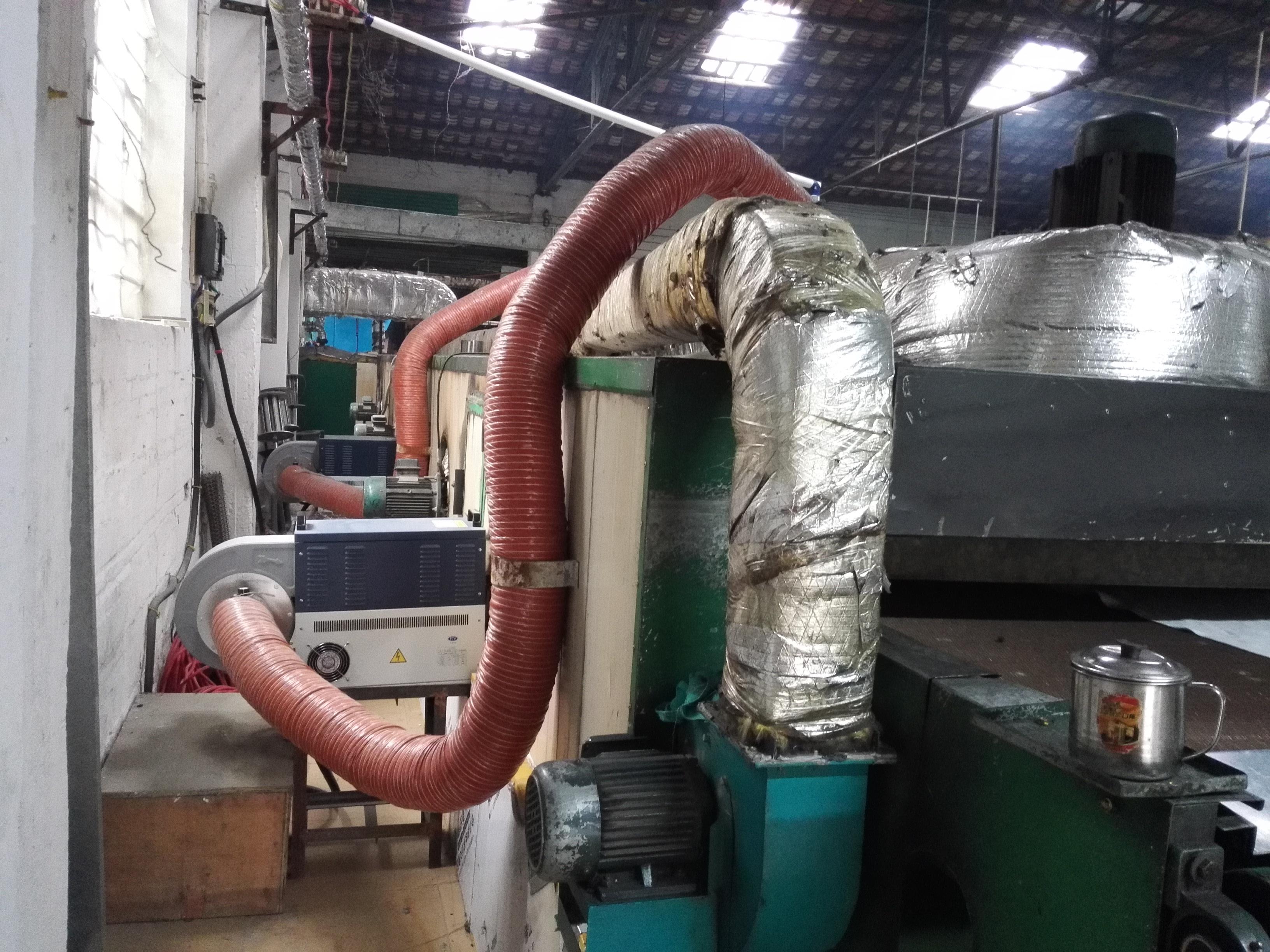

Production line heating
Workshop heating

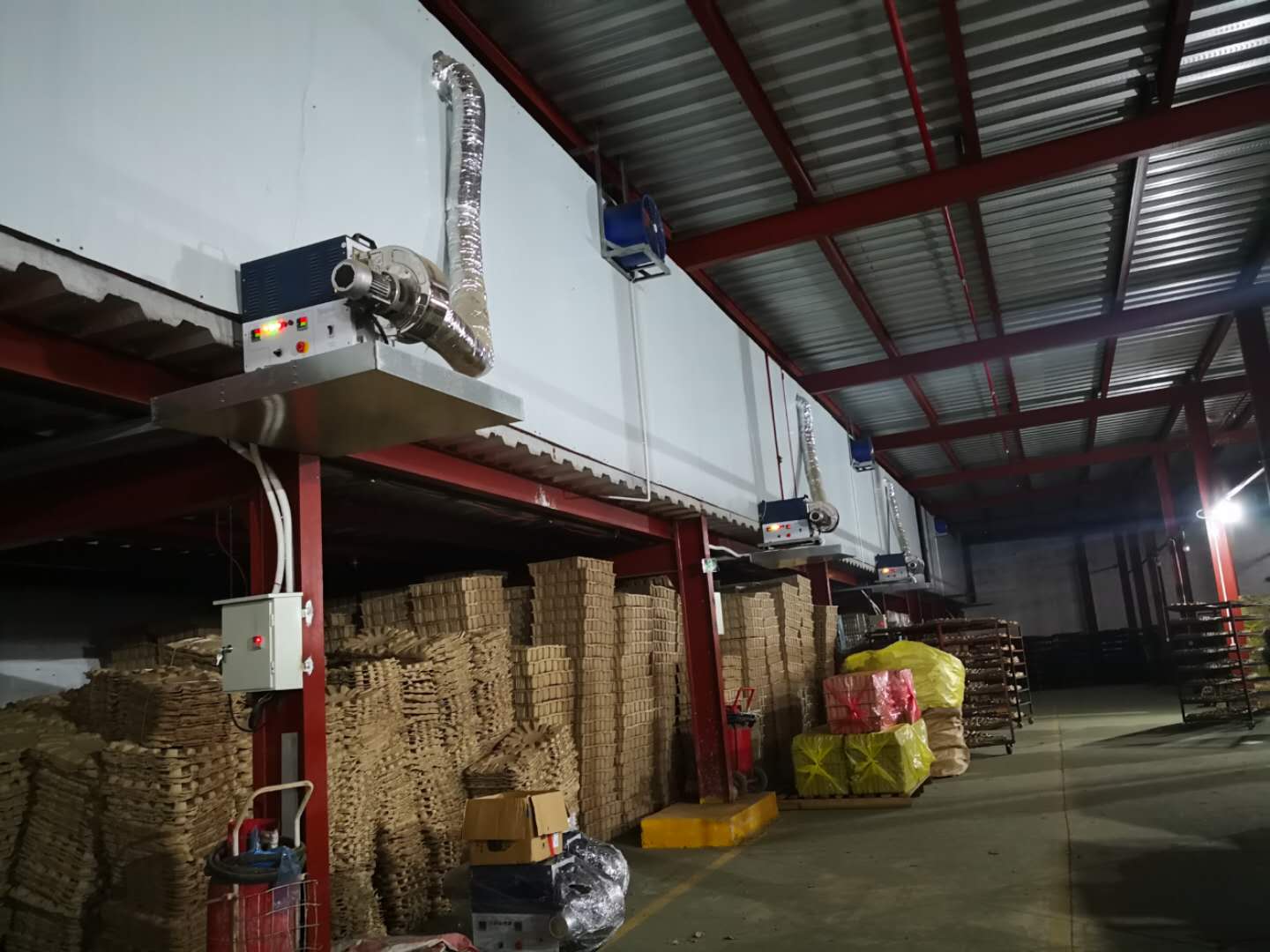

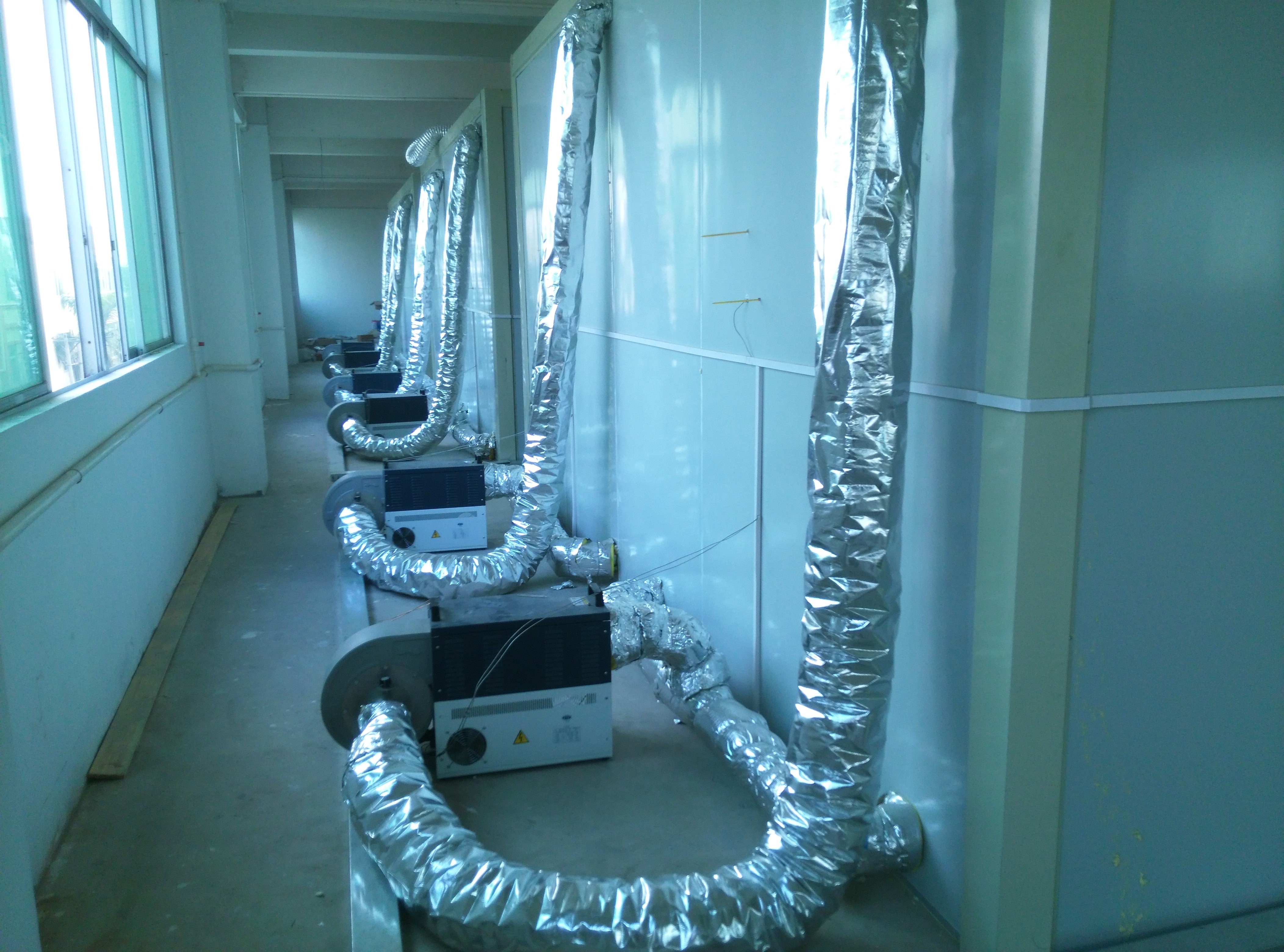

Warehouse heating
Machine preheating
Accelerated paint drying
SIMILAR PRODUCTS
220V Single Phase Blower

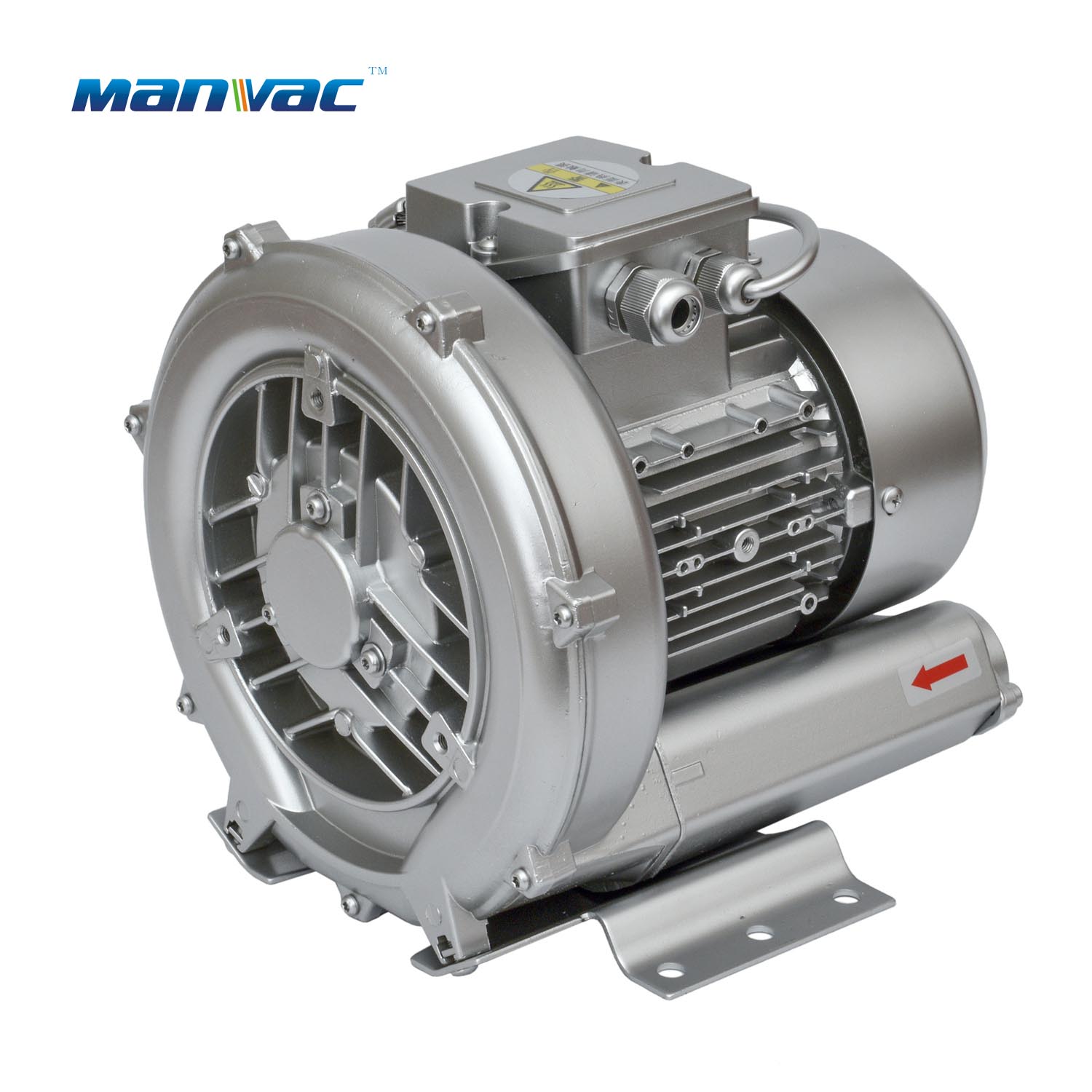

Single Stage Ring Blower
