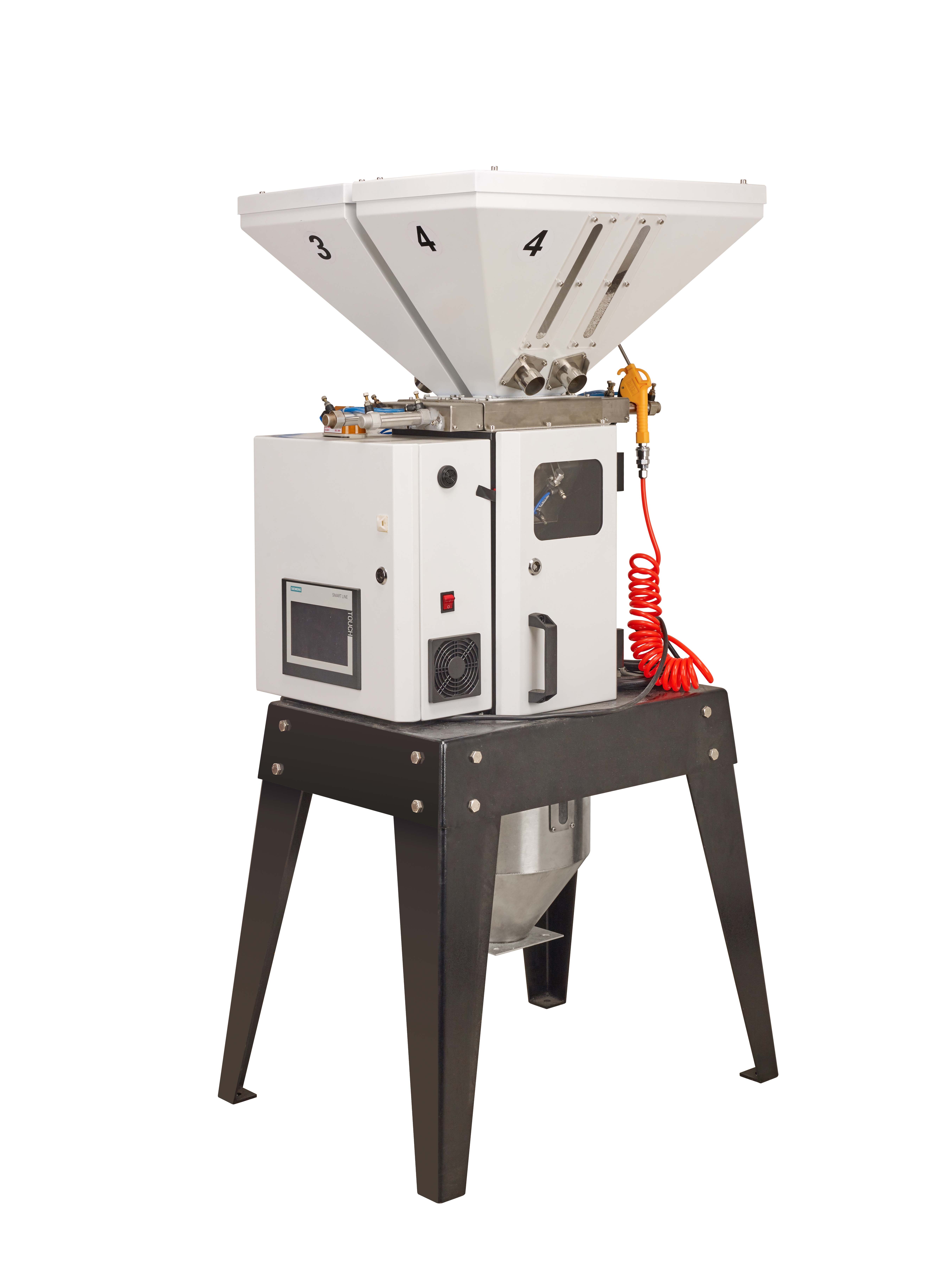

Automatic batching and weighing system of automatic masterbatch metering mixer for weighing mixer of manufacturer

This series of weighing mixer is suitable for the occasions where many kinds of raw materials are needed for plastic injection,extrusion or hollow molding, and they are accurately mixed according to the weight ratio. The controller of this series of products adopts Siemens PLC control system in Germany and adopts advanced batching algorithm, which can automatically calibrate every time it is turned on to ensure the accuracy, and the operation is easy to learn and convenient.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
principle of operation
When the machine starts to work, the metering valve of the main material barrel is opened according to the set weight value and
the time value calculated by the metering valve. When the blanking time arrives, the metering valve is closed to detect the weight
of the weighing pan. If it is within the error range of the set blanking value, the next drum is switched for metering, and so on
until the blanking of each drum is completed. After discharging, the weighing tray valve is opened, the raw materials fall into
the mixing barrel, and the agitator is started to stir until the set stirring time is reached, and the agitator stops, and the
baffle plate is manually opened or the discharging valve is automatically opened to make the stirred raw materials fall into the
injection molding machine or the storage barrel, and so on.
PRODUCT SPECIFICATIONS
model
Anverage throughput
Batch
Capacity
Total power
Main material
Additive ratio
Material hopper
Mixing chamber
CGB-50
50
0.6
0.12
5-100
0.5-10
18
6
CGB-100
100
1.2
0.12
5-100
0.5-10
32
20
CGB-200
200
2.2
0.25
5-100
0.5-10
32
20
CGB-400
400
4.5
0.25
5-100
0.5-10
45
20
CGB-600
600
8
0.55
5-100
0.5-10
70
40
CGB-800
800
8
0.55
5-100
0.5-10
100
40
CGB-1200
1200
12
1.5
5-100
0.5-10
130
80
CGB-2000
2000
20
1.5
5-100
0.5-10
160
80
CGB-2500
2500
25
1.5
5-100
0.5-10
180
100
CGB-3000
3000
30
3
5-100
0.5-10
230
180
