 Product Overview

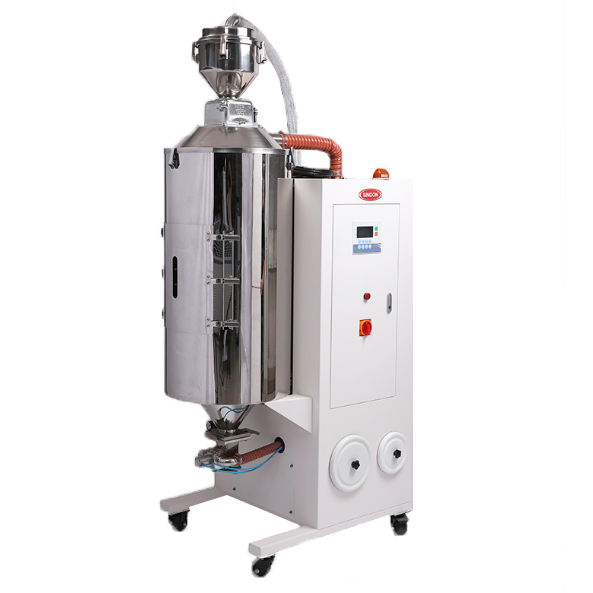

Two-ln-One Dryers

Drying: based on the principle of water high temperature gasification, moisture of material wouldbe blown away by high pressure air from blower ter being high temperature gasified. A part of airwith moisture discharges through filter of moisture outlet; most part of air are recyclable afterbeing filtered through return air pipe.Conveying: suction force of high pressure blower makes avacuum inside hopper also produces differential pressure between hopper and outer space. Withthe common force of differential pressure and continuous suction, materials and air mixture wilbe sucked into hopper. Due to the filter block of hopper, materials will be ccumulated in hopperand the air is expelled from air outlet. Double-stage conveying is mainly accomplished by shiftingthree way valve of suction machine to control suction return circuit. Heatless regeneration; Thecompressed air after passing through inlet filter 11 enters into dry barrel 1 (or dried barrels 2)through pneumatic control valve 1. Then it make absorption dry with desiccant bed layer, andater exist from non-return valve 9 (or 10) , finally exist from the outlet to dry and purify air. A pariof dry air (about 15%) enters dry barrel 2 (or dried barrel 1) through current limitation pipe 8 toblow and regenerate desiccants with saturated water, then air passes through pneumatic controlvalves 1 to exist out of muffler 7. Drying barrel1 , 2 work alternately to regenerate.
FEATURES AT A GLANCE
1.MVL-U integrates autoloading and drying into one unit.
2.Adopts microprocessor and P.l.D controlsystem to accuratelycontroldrying temperature.

3.Hopper are made of stainless steelto eliminate materialcontamination.

4.Full functionalalarming system can immediately show faults.


loader for optional
Drying system control
Hopper inside image
PRODUCT SPECIFICATIONS
Model
20U
40U
80U
120U
160U
230U
300U
450U
600U
Hooper capacity(kg)
12
25
50
75
100
150
200
300
400
Drying blower(kw)
0.05
0.12
0.12
0.12
0.12
0.12
0.18
0.18
0.55
Feeding blower(kw)
0.75
0.75
0.75
0.75
0.75
1.5
1.5
1.5
1.5
Drying heater(kw)
2.2
3
3.9
3.9
6
6
12
12
18
Ari inlet pipe(inch)
2
2
2.5
2.5
3
3
3
3
4
Suction pipe(inch)
1.5
Drying hopper capecityL)
20
40
80
80
80
160
230
300
450
Net.(kg)
120
130
145
200
220
220
250
320
450
PRODUCT CONFIGURATION
Touch screen
(Adopt PLC control with LCD)
Dew-pointmonitor
XCD-OP High-effect filter(HEPA)
