CX centrifugal blower 3 phase Diagram
2013/6/24

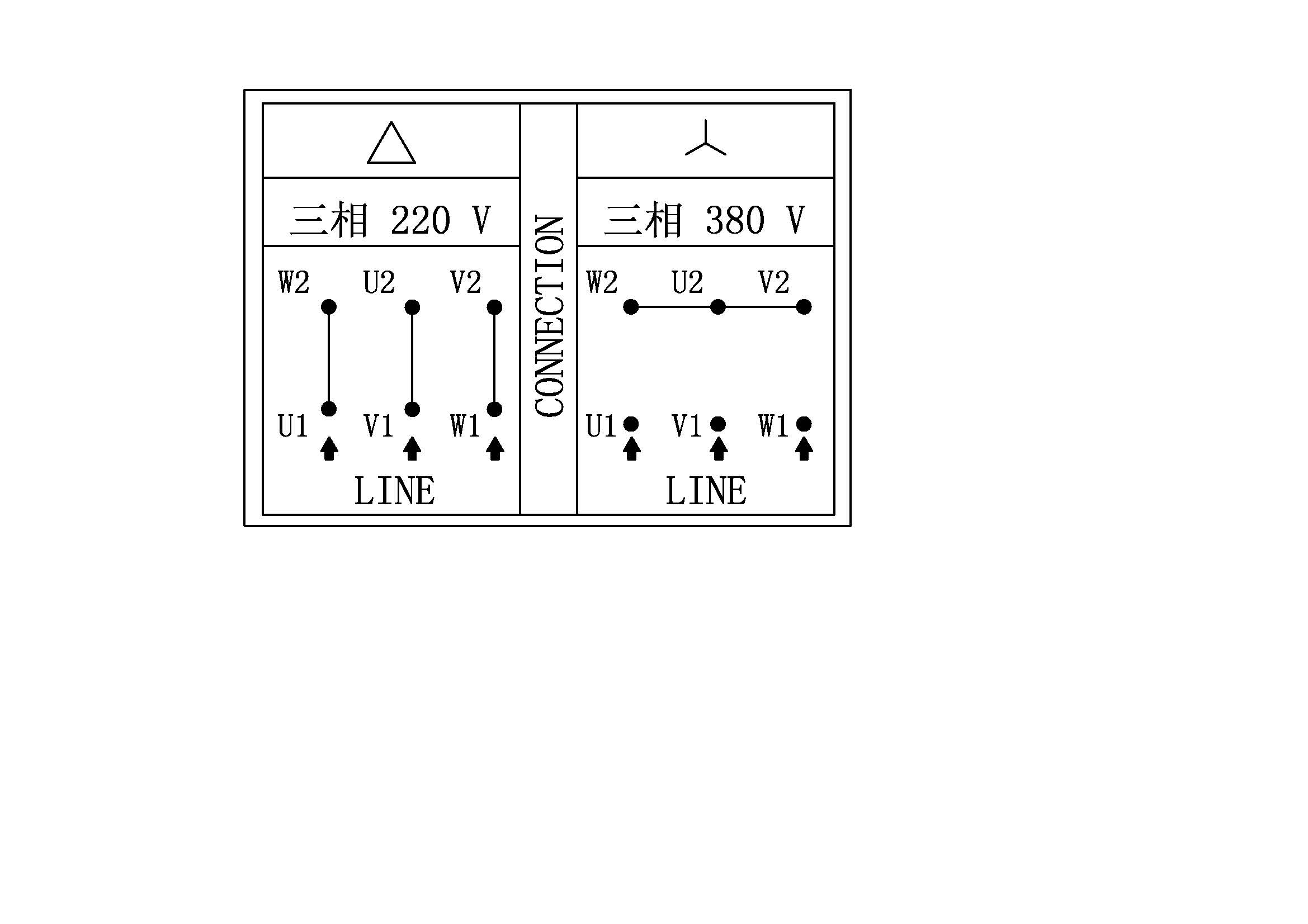

Please check enclosed diagram for three phase.

If you are three phase 220V,please link as left one,if you are three phase 380V,please link as right one.

This Diagram is suitable for CX turbo blower below 3.7KW.
