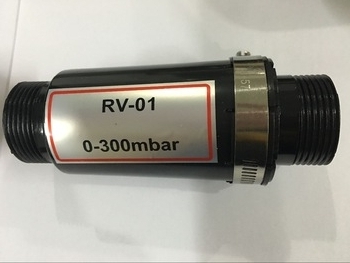

Pressure relief valve RV-01
Model:Pressure relief valve RV-01
- Phase:
- Stage:
- Frequency: (HZ)
- Power: (kw)
- Voltage: (V)
- Current: (A)
- AirFlow: (m3/h)
- Vacuum: (mBar)
- Pressure:0-300 (mBar)
- Sound: (Db)
- Weight: (kg)
Dimensions(L*W*H):143 (mm)
Product Details

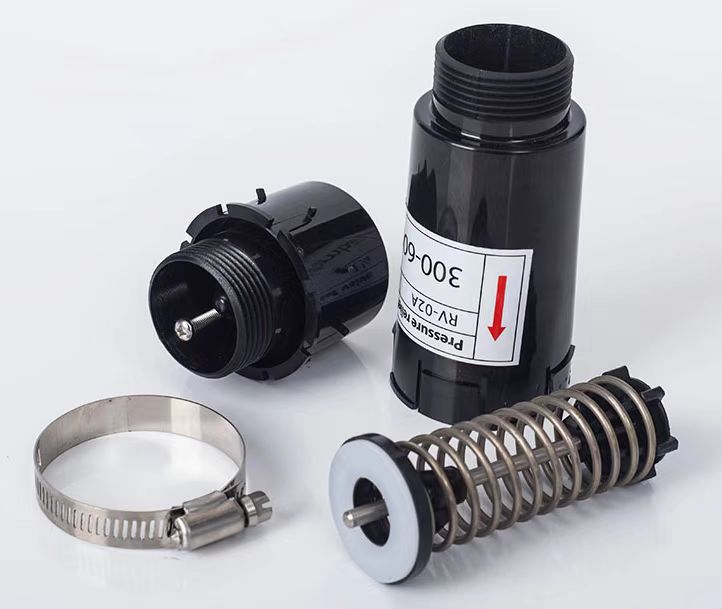

pressure relief valve

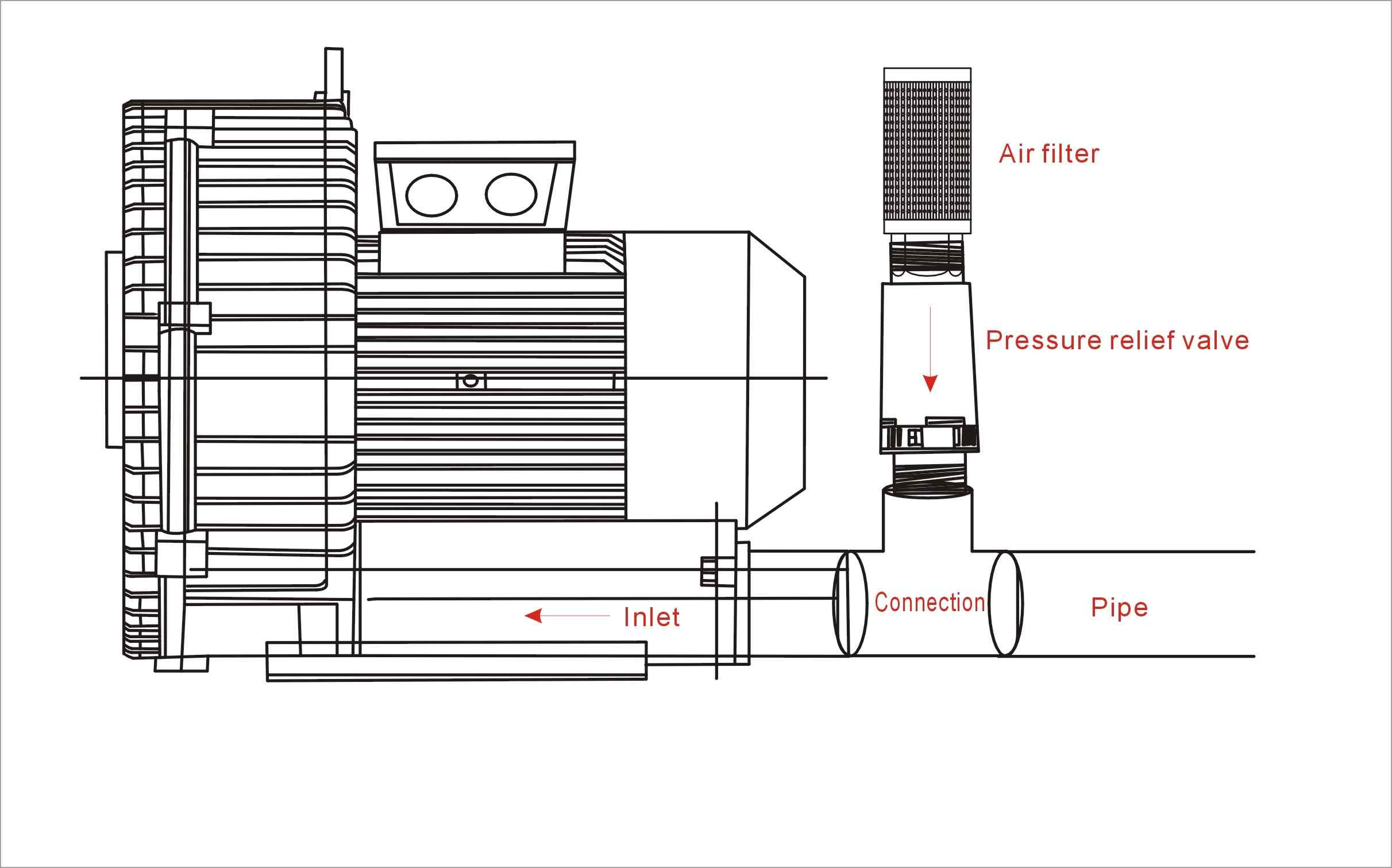

The pressure relief valve for high-pressure blower is mainly used to regulate the pressure of high-pressure blower，Install the pressure relief valve for the high-pressure blower on the outlet or inlet pipe of the blower,The pressure relief valve releases the excess pressure through the air flow,So as to play the role of protecting the high-pressure blower.
principle
When the pressure of the pressure relief valve on the suction port and the air outlet exceeds the pressure value set by the blower， or when the pressure fluctuation exceeds the set value, the pressure relief valve will be opened immediately within 0.2 seconds，and the excess pressure will be released through the air flow，So as to play the role of protecting the blower.
When the pressure in the blower drops to a safe value, the valve closes slowly and does not cause a second fluctuation in the blower pressure.
Selection and ordering data
| Model |
PT |
L (mm) |
pressure range |
| RV-01 |
11/4'' |
143 |
0-300mbar |
