 Air Blower Driven Micro Bubble Tube Diffuser for Aeration System



Product Description:

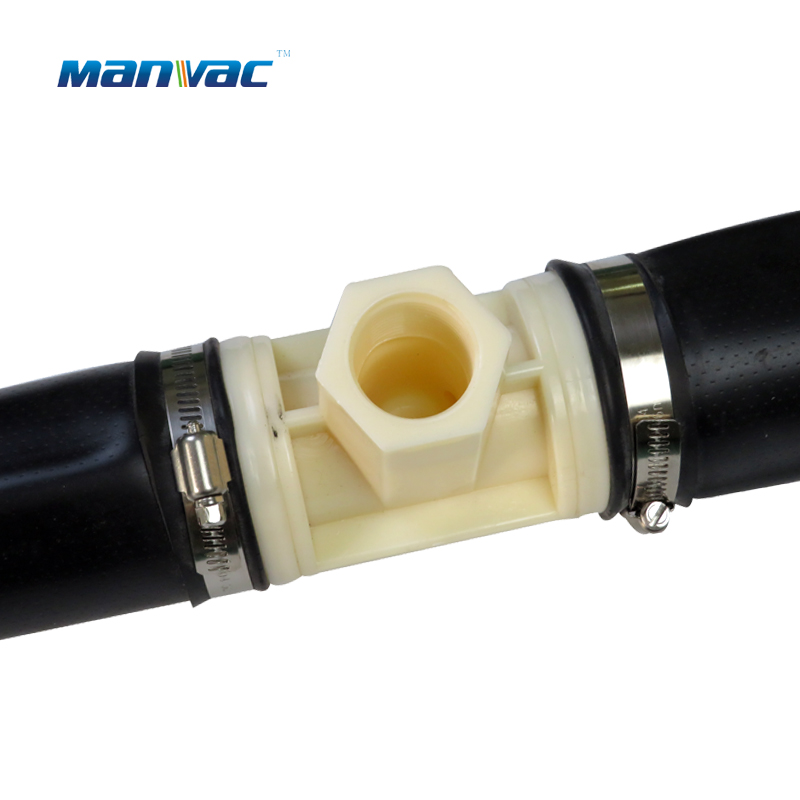

Fine bubble tube diffuser for effluent treatment can be connected on one side or in pairs to different rectangular and round
tubes (ABS material)with the appropriate adapter. The membranes are manufactured with premium quality EPDM material
and are available with fine or coarse-bubbleperforation. The support tubes(ABS or PVC material)can be reused when
membranes are replaced.

MOC:EPDM

Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm
perforations.Compression molding with modern equipment utilizing individual thermocouples and
vacuum technology ensures a repeatable very high quality product.

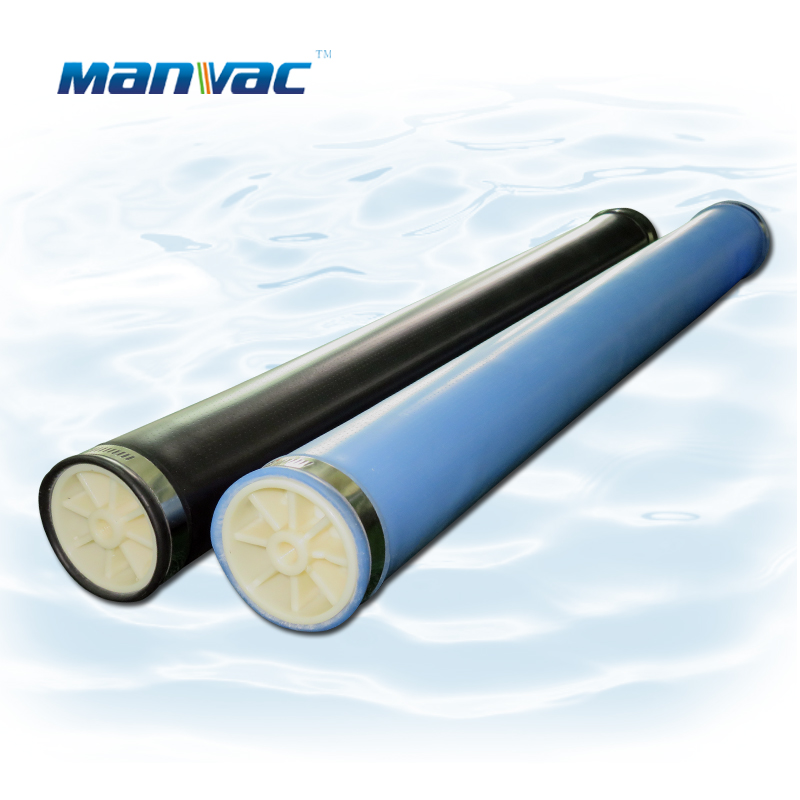

MOC:Silicon

Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .
Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is
designed to resist tearing and creep,while producing fine bubbles at a modest headloss.

Technical Parameters
Model
φ63
φ93
φ113
MOC
EPDM/Silicon membrane
ABS tube
EPDM/Silicon membrane

ABS /PP carrier plate
EPDM/Silicon membrane

ABS /PP carrier plate

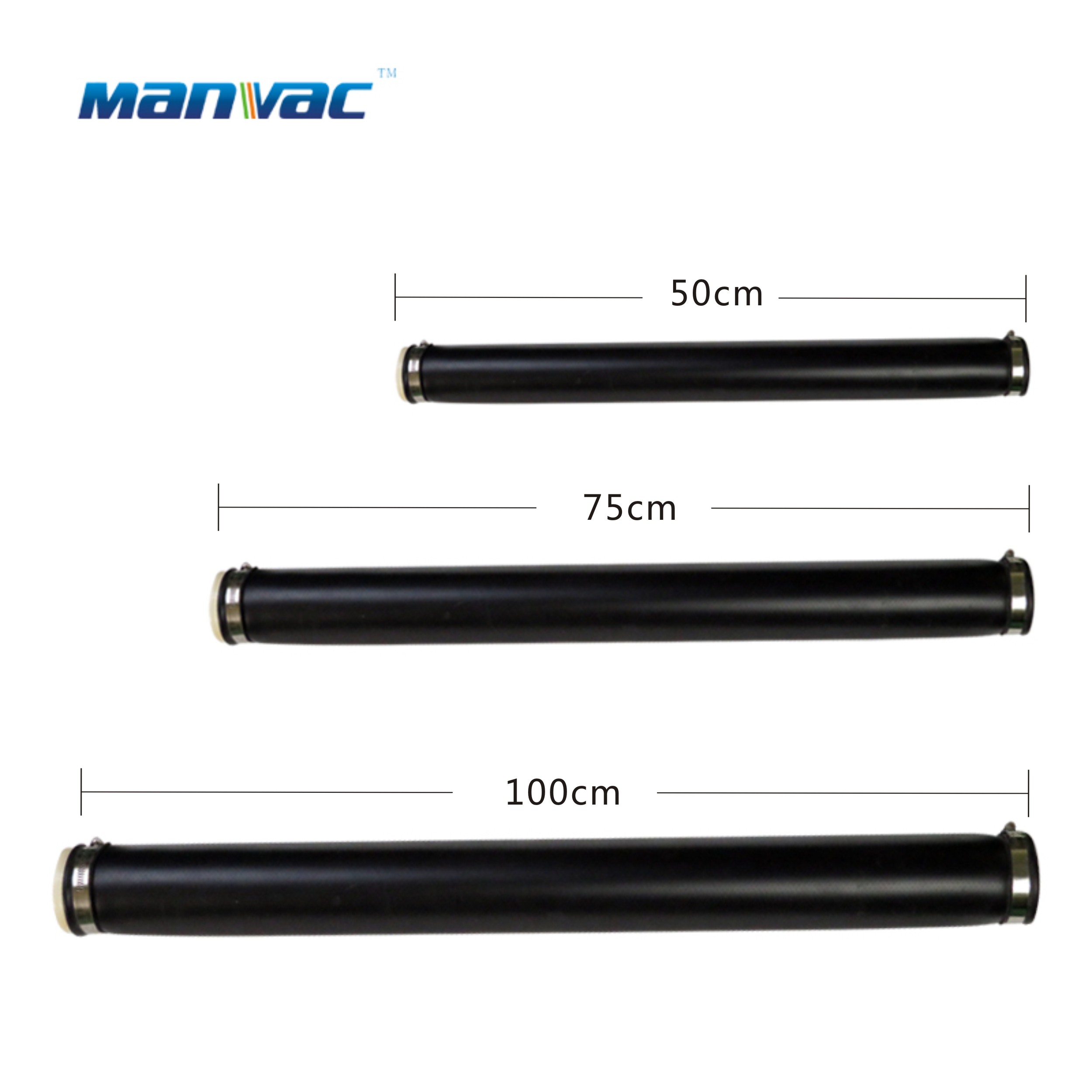

Length
500/750/1000mm
500/750/1000mm
500/750/1000mm
Connector
3/4 NPT
3/4 NPT
 3/4  NPT
Flow  range
2-14m³/h
5-20m³/h
6-28m³/h
Bubble Size
1-2mm
1-2mm
1-2mm
Service Area
0.75-2.5m²
1.0-3.0m²
1.5-3.5m²
Service Life
>8 year
>8 year
>8year

Main features

♦ High oxygen transfer efficiency
♦ Low cost of total ownership
♦ Anti-clogging, corrosion resistant
♦ Ease of installation,2 minutes for one diffuser
♦ Maintenance-free design, 8 years service life
♦ EPDM membrane with excellent performance

Typical applications

♦ Preservation aeration of waste water
♦ Oxygenation of activation basins
♦ Oxygenation to stabilize sludge
♦ Aeration of rivers and lakes
♦ Aeration of fish ponds
♦ CO admission for neutralization
