Product Details

 Technical Paramater

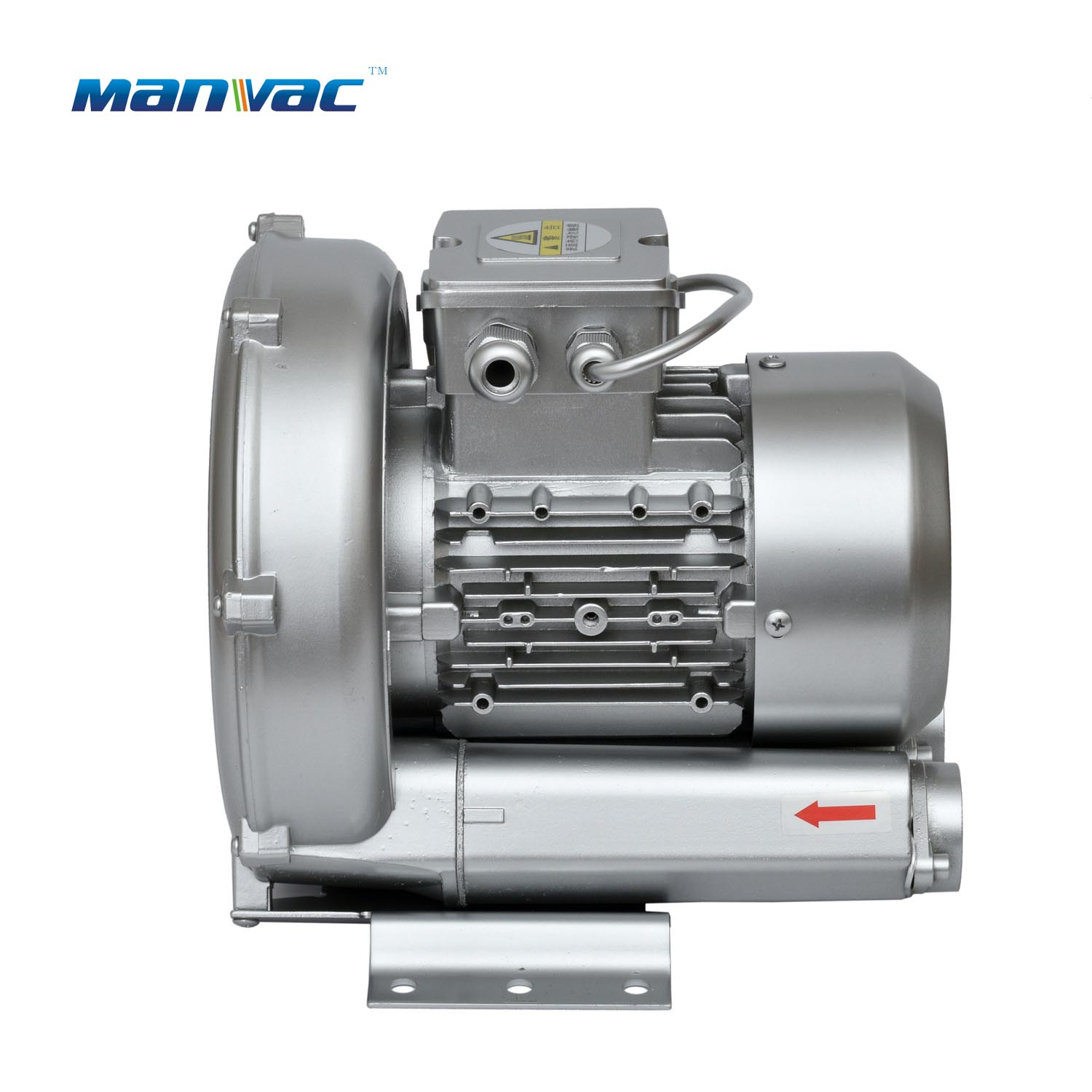

Single Phase Air Blower for Aquaculture Fish Farming Model No. 2MV 210 A11
Phase 1
Stage Single
Frequency 50HZ 60HZ
power 0.37KM 0.45KM
Voltage 220V-240V
Current 2.7A 3.0A
Max Airflow 80m3/h 96m/3h
Max Vacuum -110mbar -130mbar
Max pressure 110mbar 140mbar
Net weight 11Kg
Rotation 2850BPM 3450BPM
Sound 53db 56db
Level of protection IP54
  Insulation class F

Ring Blower,Soplador regenerativo ,side channel blower ,Functional Features:



 1. Light weight high pressure big volume low noise.

 2. Aluminum alloy material, greatly reduce weight, achieve the goal of lightweight.

 3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame,
  motor axis of special design, can be suitable for long time use.

 4. Special blade design, high pressure, big air volume, low noise, long service life.

 5. Special air damper, air volume control stability is high, easy to operate .

Model

Phase

Frequency

(Hz)

Power

(KW)

Voltage

(V)

Max airflow

(m3/h)

Max pressure

(mbar)

Max vacuum

(mbar)

Weight

(KG)

single-phase blower

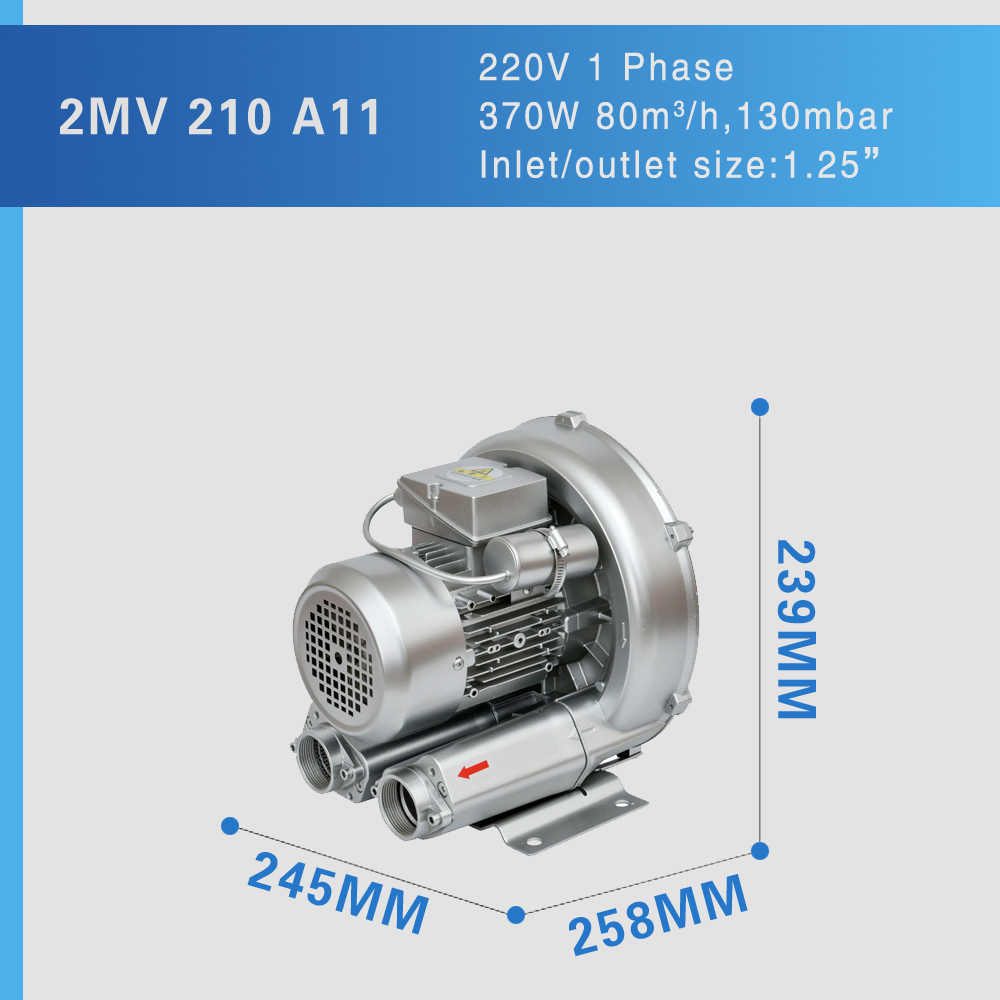

2MV 210 A11

1

50

0.37

220-240

80

110

-110

11

60

0.45

220-240

96

140

-130

2MV 230 A11

1

50

0.37

220-240

100

110

-110

11

60

0.45

220-240

120

140

-130

2MV 310 A01

1

50

0.55

220-240

100

120

-120

13

60

0.62

220-240

120

150

-130

2MV 310 A11

1

50

0.7

220-240

100

150

-150

14

60

0.8

220-240

120

160

-150

2MV 320 A31

1

50

1.1

220-240

120

280

-240

17

60

1.3

220-240

145

250

-230

2MV 410 A11

1

50

0.8

220-240

145

160

-150

15

60

0.9

220-240

175

140

-160

2MV 410 A21

1

50

1.1

220-240

145

190

-150

16

60

1.3

220-240

175

190

-180

2MV 420 A11

1

50

1.5

220-240

150

290

-280

26

60

1.75

220-240

180

280

-250

2MV 430 A11

1

50

0.8

220-240

180

110

-100

16

60

0.9

220-240

210

110

-100

2MV 430 A21

1

50

1.1

220-240

180

210

-170

17

60

1.3

220-240

210

145

-145

2MV 510 A11

1

50

1.1

220-240

210

160

-160

21

60

1.3

220-240

255

160

-150

2MV 510 A21

1

50

61.5

220-240

210

200

-190

24

60

1.75

220-240

255

180

-180

2MV 530 A21

1

50

1.5

220-240

270

120

-140

26

60

1.75

220-240

330

100

-110

2MV 610 A11

1

50

2.2

220-240

270

250

-230

30

60

2.55

220-240

315

270

-250

2MV 710 A11

1

50

2.2

220-240

318

190

-190

30

60

2.55

220-240

376

200

-190
