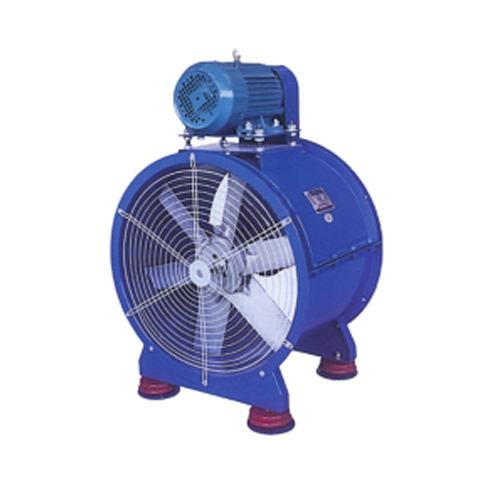

 T40, KT40 axial blower


T40 axial blower is suitable for ventilation or strengthening heating and heat dissipation in general factories, warehouses, offices, residences, if the casing is removed, it can be used as a free blower, or it can be installed in series at intervals in a long exhaust duct to increase the wind pressure in the pipeline. This series of products according to the needs of users, in the structural design of the motor external (motor on the machine) belt drive, model is KT40, its performance parameters are the same as KT40 blower, can also according to the needs of users to change the speed to meet the needs of users, its maximum effect can discharge high temperature gas or moisture-proof gas.

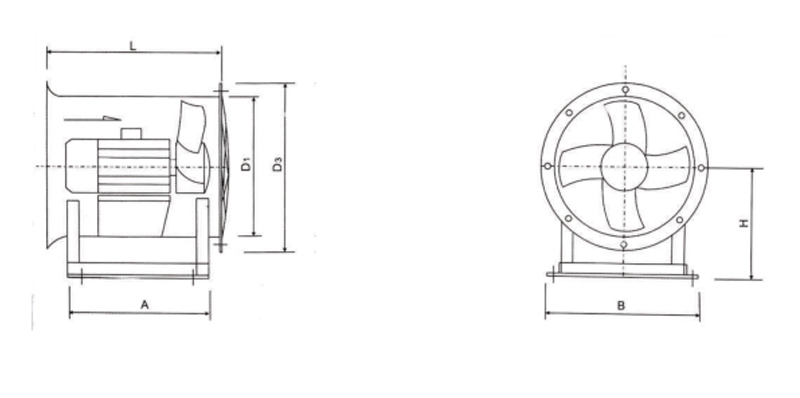

Schematic diagram



The main parameters


NO. Impeller diameter(mm) Blade angle(deg) rotate speed(r/min) Equipped with motor(Kw-p) Air(m³/h) Full pressure(Pa)
2.5
250
250
30
30
2900
1450
0.18-2
0.09-4
2010
1010
152
38
3
300
300
30
30
2900
1450
0.55-2
0.12-4
3480
1740
219
55
3.5
350
350
30
30
2900
1450
0.75-2
0.12-4
5520
2760
298
75
4
400
400
30
30
2900
1450
1.5-2
0.25-4
8240
4120
390
97
5 500 30 1450 0.75-4 8050 152
6
 600
600
30
 30
1450
 960
1.5-4
 0.75-6
13900
 9200
219
 96
7
 700
700
25
 25
1450
 960
3.0-4
 0.75-6
22100
 14600
 300
131
8
 800
800
25
 25
1450
 960
5.5-4
 1.5-6
33000
 21800
389
 171
9  900 25  960  3-6  31300  218
10  1000  25  960  5.5-6  42700  267
11.2  1120  25  960  7.5-6 56960   310





NO. D1 D2 D3 A B L H
2.5 260 290 320 220 270 280 240
3  310  340  370  220  300  280  240
3.5  360  390  420  220  340  280  260
4  410  440  470  270  380  350  300
5  510  540  570  270  440  350  360
6  610  650  680  410  540  460  450
7  710  750  780  450  630  550  500
8  810  850  890  450  740  550  600
9  910  950  995  600  800  650  650
10  1010  1050  1100  650  900  700  700
11.2  1130  1175  1220  650  950  730  760
