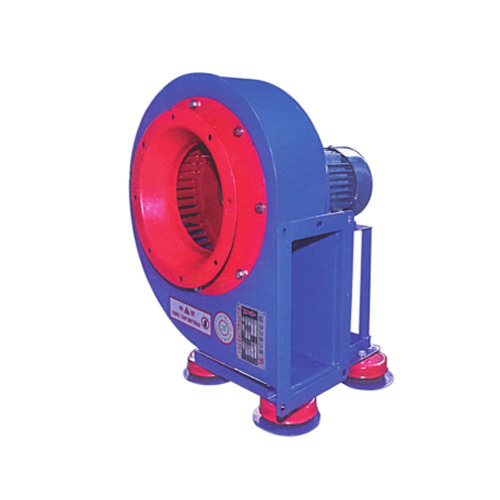

 WDF high temperature resistant multi-wing centrifugal blower

WDF high temperature blower for drying industry, boiler industry, cleaning industry, painting industry, food drying industry and research and development of new products, blower casing and motor with metal casting installation connection, motor shaft head installed heat dissipation blades, metal castings and shaft head to cool down, to ensure the motor at high temperature normal operation. The operating temperature of the fan is between 150 °C and 180 °C, and the gas transported is air or other gases that do not spontaneously combust, do not self-explode, do not entangle, are harmless to the human body, and are not corrosive to steel materials. It can also be used as a non-corrosive, non-spontaneous combustion, non-viscous substance hot gas, steam, flue gas in various industries. Other similar properties can also be used, but the temperature of the conveying medium must not exceed its rated temperature range. There is no sticky substance in the gas, and the dust and hard plasmid contained in it are not more than 150m/m³.

The main parameters


Product model Equipped with motor(kw-p) Rotate speed(r/min) Flow rater(m3/h) Full pressure(pa) Noise(db A)
WDF-1 0.12-2 2800 3058 412 72
WDF-2 0.18-2 2800 405 450 75
WDF-3 0.25-2 2800 504 860 75
WDF-4 0.37-2 2800 660 850 76
WDF-5 0.55-2 2800 850 1020 76
WDF-6 0.75-2 2800 1200 1210 80
WDF-7 1.1-2 2800 1900-2500  1128-932  82
WDF-8  2.2-2 2800   4200-6300 1471-1275  84
