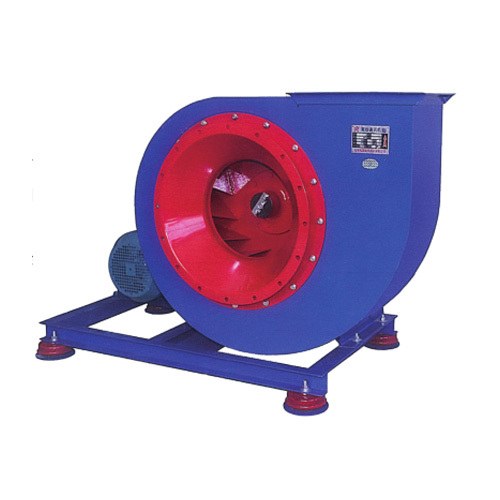

C6-48 dust exhaust centrifugal blower

The main parameters

（No.）	rotate speed(r/min)	Equipped with motor(Kw-p)	flow rate(m³/h)	Full pressure(Pa)
3.15A	2900	2.2-2	1369-3060	1587-1163
	1450	0.55-4	684-1530	397-291
4A	2900	5.5-2	2748-6374	2594-1859
	1450	1.1-4	2582-3187	553-465
5A	1450	3-4	4401-6252	918-724
	960	0.75-6	1705-4139	449-317
6.3A	1450	7.5-4	10091-12505	1369-1150
	960	2.2-6	3411-8279	711-504
3.15C	1600	0.75-2	755-1688	483-354
	1800	0.75-2	850-1899	611-448
	2000	0.75-2	944-2110	755-553
	2240	1.1-2	1057-2363	948-694
	2500	1.1-2	1181-1909	1181-1070
	2500	1.5-2	2152-2687	1015-865
	2800	1.5-2	1322-2138	1433-1344
	2800	2.2-2	2410-2954	1274-1086
	3150	2.2-2	1487-2711	1880-1615
	3150	3-2	3017-3323	1507-1376
4C	1250	0.75-2	1184-2748	481-345
	1400	0.75-2	1326-3077	603-433
	1600	1.1-2	1516-2850	789-672
	1600	1.5-2	3183-3517	624-565
	1800	1.5-2	1705-3957	999-716
	2000	2.2-2	1895-4396	1234-884
	2240	2.2-2	2122-2589	1550-1505
	2240	3-2	3056-4924	1451-1110
	2500	3-2	2369-3411	1933-1810
	2500	4-2	3932-5495	1737-1384
5C	1000	0.75-2	1776-3035	486-436

No.	r/min	Kw-p	m³/h	Pa
5C	1000	1.1-2	3479-4312	410-344
	1120	1.5-2	1990-3896	610-514
	1120	1.5-2	4415-4829	475-432
	1250	2.2-2	2221-4349	760-641
	1250	2.2-2	4927-5390	592-538
	1400	3-2	2487-6036	954-675
	1600	4-2	2842-6899	1247-882
	1800	5.5-2	3198-6262	1580-1332
	1800	5.5-2	7095-7761	1230-1118
	2000	7.5-2	3553-6958	1953-1647
	2000	1.1-2	7883-8623	1521-1381
6.3C	800	1.1-2	2343-4116	494-464
	800	1.5-4	4857-6900	443-350
	900	1.5-4	3198-4631	625-588
	900	2.2-4	5464-7762	561-443
	1000	2.2-4	3554-6071	772-693
	1000	3-4	6859-8625	651-547
	1120	3-4	3980-7794	696-818
	1120	4-4	8831-9660	755-686
	1250	4-4	4442-7588	1208-1085
	1250	5.5-4	8699-10781	1019-855
	1400	5.5-2	4975-8499	1517-1362
	1400	7.5-2	9743-12074	1279-1073
	1600	7.5-2	5686-8233	1985-1866
	1600	11-2	9713-13799	1782-1403
8C	800	4-4	5821-14200	789-560
	1250	4-15	9090-22100	1956-1380
10C	800	11-4	11850-29200	1050-880
12.5C	630	18.5-4	18210-45030	1270-883
