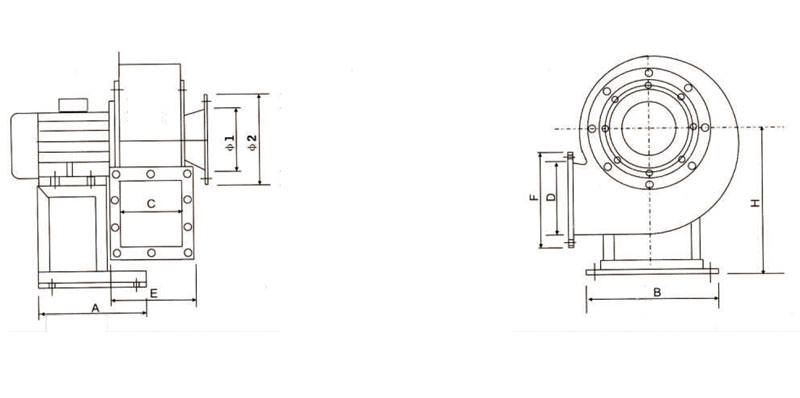

Schematic diagram

The main parameters

Number	power(KW)	rotate speed(r/min)	flow rate(m³/h)	Full pressure(Pa)
4D	4	2900	3242-3846	2039-2049
	5.5	2900	4451-5660	2030-1882
4.5D	7.5	2900	4613-5477	2579-2589
	11	2930	6338-8059	2569-2392
5D	11	2930	6332	3187
	15	2930	7513-8693	3197-3167
	18.5	2930	9874-11055	3079-2951
5.6D	18.5	2930	8896	4001
	22	2930	10555	4011
	30	2950	12214-15531	3971-3707
6.3D	5.5	1450	6333-8695	1265-1255
	7.5	1450	9876-11057	1216-1167
	37	2950	12667-15029	5060-5080
	55	2970	17391-22114	5031-4687
7.1D	11	1450	9066-14136	1647-1608
	15	1450	15827-19207	1539-1333
8D	18.5	1450	12969-17805	2088-2098
	22	1450	20223-22641	2039-1951
	30	1470	25059-27477	1833-1696
	30	1470	18465-21908	2647-2716
9D	37	1480	25351-28794	2657-2579
	45	1480	32237-39122	2471-2147
	55	1480	25330-34775	3265-3422
10D	75	1480	39498-44221	3344-3246
	90	1480	48943-53666	3180-2922
	90	1480	35587-42222	4099-4275
11.2D	110	1480	48857-55492	4295-4197
	132	1490	62127-68762	4070-3903
	160	1490	75397	3667
	30	980	23561-32346	1794-1882

Number	A	B	C	D	E	F	1	2	G	H
3.15	380	350	165	205	225	265	250	310	200	350
4	500	420	206	265	266	325	320	380	260	450
5	500	420	256	325	316	385	400	470	330	500
6.3	560	600	320	410	400	490	500	570	410	650

Number	A	B	C	D	E	F	1	2	G	H
3.15	460	850	165	205	225	265	250	310	200	380
4	460	850	206	265	266	325	320	380	260	480
5	580	1000	256	325	316	385	400	470	330	520
6.3	580	1300	320	410	400	490	500	570	410	680

Number	A	B	C	D	E	F	1	2	G	H
8	1500	1200	408	525	488	605	630	710	510	780
10	1800	1420	510	650	610	750	800	890	630	980
12.5	1960	1590	630	815	730	915	1000	1100	780	1200
