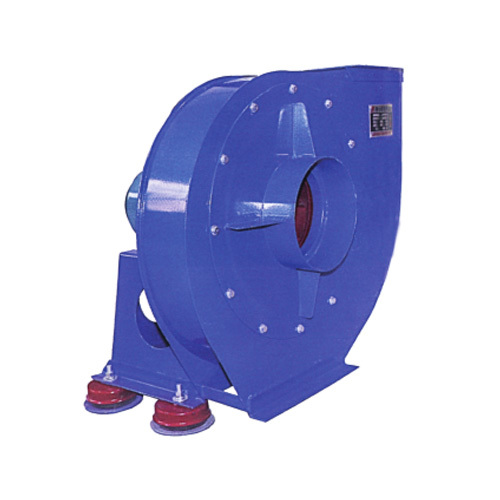

Y6-30/G6-30 boiler centrifugal blower

The medium discharged by Y6-30/G6-30 centrifugal blower is air and non-corrosive, non-spontaneous combustion and non-viscous gas, and its temperature does not exceed 80 °C. The blower has the characteristics of high pressure and small flow, which is suitable for wind transportation and boiler ventilation during processing of grain and cotton.

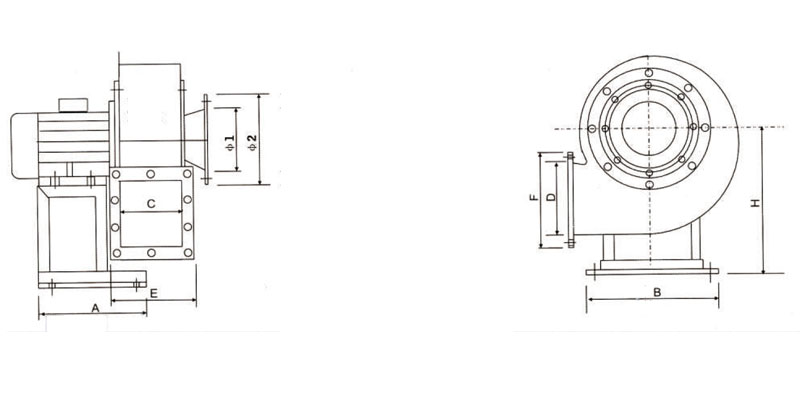

Schematic diagram

The main parameters

Number（No.）	rotate speed(r/min)	Equipped with motor(Kw-p)	flow rate(m³/h)	Full pressure(Pa)
5A	2900	7.5-2	2240-4776	4393-3217
6C	2400	11-2	3204-6830	4325-8168
	2200	7.5-4	2937-6261	3638-2667
	2000	5.5-4	2670-5962	3011-2207
	1800	4-4	2403-5123	2442-1785
7C	2020	2-15	4282-9129	4178-3060
	1840	11-2	3900-8316	3462-2540
	1680	7.5-2	3562-7592	2893-2118
	1500	5.5-4	3180-6779	2305-1687
9C	1800	4-30	8120-14680	5482-4746
	1800	37-4	15990-17300	4403-4020
	1645	2-22	7420-12210	4580-4109
	1645	4-30	13410-15810	3962-3354

Number	A	B	C	D	E	F	1	2	G	H
5A	500	1150	130	250	190	310	250	310	315	520
6C	550	1200	155	300	215	360	300	360	380	620
7C	600	1350	180	350	240	410	350	410	450	730
9C	970	1650	230	450	310	530	450	520	570	880
