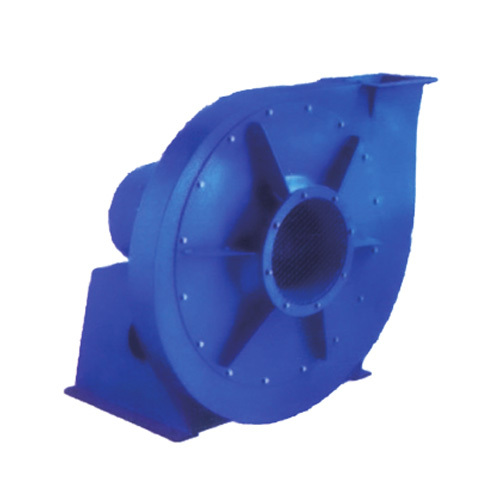

9-14-13 high-pressure centrifugal blower, is a special blower for carton machinery, also suitable for forging furnace and high-pressure forced ventilation, and can be widely used in conveying materials, conveying air and non-corrosive non-spontaneous combustion, does not contain viscous gas, the maximum temperature of the medium can not exceed 80 °C, and the dust and hard particles contained in the intermediary ≤ 150mg/m³. It can also be made into CD or transmission according to the use environment, and temperature-resistant, anti-corrosion and explosion-proof form.
Number(No.) |
rotate speed(r/min) |
Equipped with motor(Kw-p) |
flow rate(m³/h) |
Full pressure(Pa) |
5A |
2900 |
5.5 |
1240-1900 |
5480-5930 |
2900 |
7.5 |
1960-2960 |
5930-6310 |
|
2900 |
11 |
2970-3160 |
5360-6580 |
|
6.3A |
2900 |
7.5 |
1183-2100 |
7837-8233 |
2900 |
11 |
2167-3667 |
8213-7533 |
|
2900 |
15 |
3734-5500 |
7467-4767 |
Number |
A |
B |
C |
D |
E |
F |
G |
H |
1 |
2 |
5A |
510 |
370 |
160 |
115 |
220 |
175 |
370 |
430 |
220 |
290 |
6.3A |
630 |
460 |
195 |
140 |
255 |
200 |
390 |
460 |
270 |
340 |
