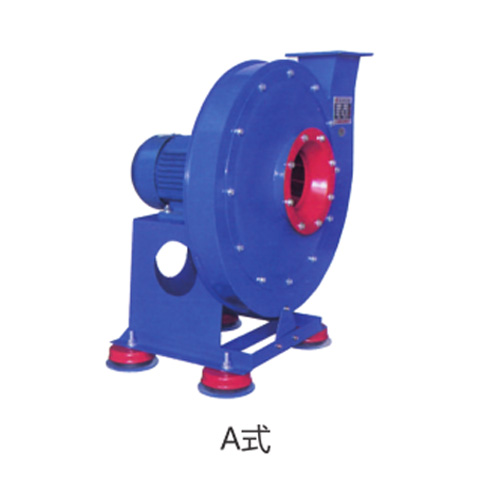

9-19 9-26 AD type high pressure centrifugal blower

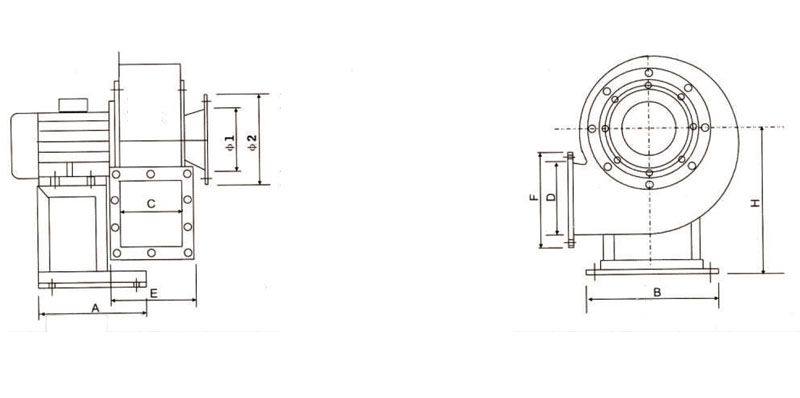

Schematic diagram

The main parameters

Number	rotate speed	Equipped with motor	flow rate	Full pressure
3.15A	2900	1.1-2	390-810	1919-1745
3.55A	2900	2.2-2	560-1160	2545-2310
4A	2900	3.0-2	824-1704	3584-3253
4.5A	2900	5.5-2	1174-2504	4603-4112
5A	2900	11-2	1610-3488	5697-5080
5.6A	2900	18.5-2	2262-4901	7182-6400
6.3A	2900	30-2	3220-6978	9149-8148
7.1D	2900	5.5-2	4610-9988	11717-10426
8D	2900	11-2	6594-14287	15034-13362
	1450	4-15	3297-7144	3620-3231
9D	1450	4-22	4695-10171	4597-4101
10D	1450	37-4	6440-15455	5840-4958
11.2D	1450	75-4	9047-21713	7364-6246
	960	6-22	5990-14375	3182-2705
12.5D	1450	110-4	12577-30186	9229-7822
	960	37-6	8327-19985	3975-3377
14D	1450	220-4	17670-42409	11668-9878
	960	75-6	11699-28078	5004-4249
16D	1450	401-4	26377-63305	15425-13035
	960	110-6	17463-41912	6570-5575

Number	A	B	C	D	E	F	1	2	G	H
3.15A	290	312	72	100	132	155	150	220	233	350
3.55A	337	332	81	113	142	175	150	220	256	410
4A	360	365	92	130	125	165	180	240	295	470
4.5A	435	400	103	145	163	205	200	260	297	492
5A	425	450	115	160	175	220	220	285	340	502
5.6A	560	525	130	180	190	240	245	310	370	560
6.3A	700	585	145	202	205	262	320	370	456	670

Number	Equipped with motor	flow rate	Full pressure
5.6	4-15日-	11827-27300	2122-1234
	7.5-4	9199-21233	1283-746
	3.0-4	6571-15167	655-381
	1.5-6	4928-11375	368-214
6.3	4-15	14166-3220	1825-1086
	11-4	11333-25760	1168-695
	4.0-6	500-19320	657-391
	2.2-6	6611-15026	397-263
7.1	4-30	9791-45833	2322-1362
	4-15	15833-36000	1486-871
	7.5-6	11875-27500	836-490
	3.0-6	9236-21388	505-296
8	4-30	24375-55713	2183-1322
	4-15	18750-42856	1292-782
	7.5-4	15000-34285	827-501
	4.0-6	11250-25713	465-281
9	37-4	30187-70437	2130-1268
	4-22	26250-61250	1610-959
	11-6	21000-49000	1031-614
	5.5-6	15750-36750	579-345
10	45-4	36666-85416	2052-1213
	4-22	29333-68333	1313-776
	11-4	22000-51250	739-437
	5.5-4	18333-42708	513-303
11.2	4-15	46362-108003	2084-1233
	37-4	41210-96002	1646-074
	4-22	30908-72002	1172-693
	7.5-4	23180-54000	521-308

Number	A	B	C	D	E	F	1	2	G	H
4A	440	420	130	196	190	256	220	585	308	472
4.5A	530	490	145	220	205	280	250	310	390	560
5A	540	520	160	245	220	305	280	320	380	540
5.6A	730	560	180	275	240	335	320	365	410	630
6.3A	800	620	202	310	262	370	360	410	463	685
