Product Details

 Product Description :

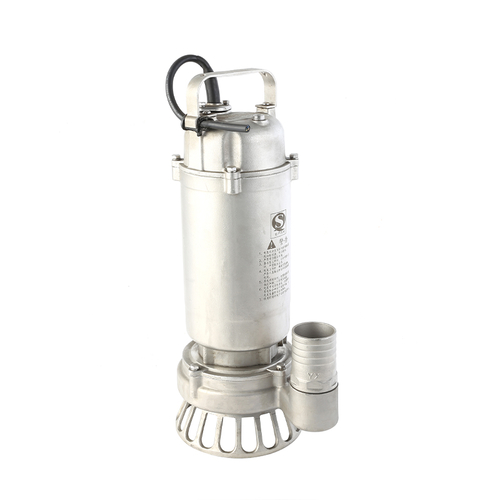

1. WQ(D)-S series all stainless steel casting sewage pump adopts unique single and double flow channel impeller structure,which greatly improves the ability to pass the dirt.

2. Adopt fluororubber double-end mechanical seal and fluororubber O-ring seal, which can effectively prevent water from entering the motor .

3. Overheat and current protector can be installed in the electric pump to prevent the motor from overheating(ascustomer’s request).
Application :

It is suitable for buildings, hospitals, residential quarters, municipal engineering，road traffic and construction, factory sewage , aquaculture, pharmaceuticals, beverages, seawater and salt water, solid particles contained in general corrosive media, longfiber waste water, sewage.


Table of performance parameters

No.

Model

Rated flow

Rated head

Power

Voltage

Outlet

Speed

(m3/h)

(m)

(kW)

(V)

(mm)

(r/min)

1

WQ(D)3-7-0.25S

3

7

0.25

220/380

25

2860/2900

2

WQ(D)4-5-0.25S

4

5

0.25

220/380

32

2860/2900

3

WQ(D)7-3-0.25S

7

3

0.25

220/380

40

2860/2900

4

WQ(D)3-9-0.37S

3

9

0.37

220/380

25

2860/2900

5

WQ(D)5-7-0.37S

5

7

0.37

220/380

32

2860/2900

6

WQ(D)7-5-0.37S

7

5

0.37

220/380

40

2860/2900

7

WQ(D)3-12-0.55S

3

12

0.55

220/380

25

2860/2900

8

WQ(D)4-10-0.55S

4

10

0.55

220/380

32

2860/2900

9

WQ(D)7-7-0.55S

7

7

0.55

220/380

40

2860/2900

10

WQ(D)10-9-0.75S

10

9

0.75

220/380

40

2860/2900

11

WQ(D)12-8-0.75S

12

8

0.75

220/380

50

2860/2900

12

WQ(D)15-6-0.75S

15

6

0.75

220/380

65

2860/2900

13

WQ(D)8-15-1.1S

8

15

1.1

220/380

40

2860/2900

14

WQ(D)12-12-1.1S

12

12

1.1

220/380

50

2860/2900

15

WQ(D)20-6-1.1S

20

6

1.1

220/380

65

2860/2900

16

WQ(D)6-18-1.5S

6

18

1.5

220/380

40

2860/2900

17

WQ(D)15-15-1.5S

15

15

1.5

220/380

50

2860/2900

18

WQ(D)25-7-1.5S

25

7

1.5

220/380

65

2860/2900

19

WQ15-20-2.2S

15

20

2.2

380

50

2900

20

WQ25-12-2.2S

25

12

2.2

380

65

2900

21

WQ15-25-3S

15

25

3

380

50

2900

22

WQ25-15-3S

25

15

3

380

65

2900

23

WQ15-34-4S

15

34

4

380

50

2900

24

WQ25-27-4S

25

27

4

380

65

2900
