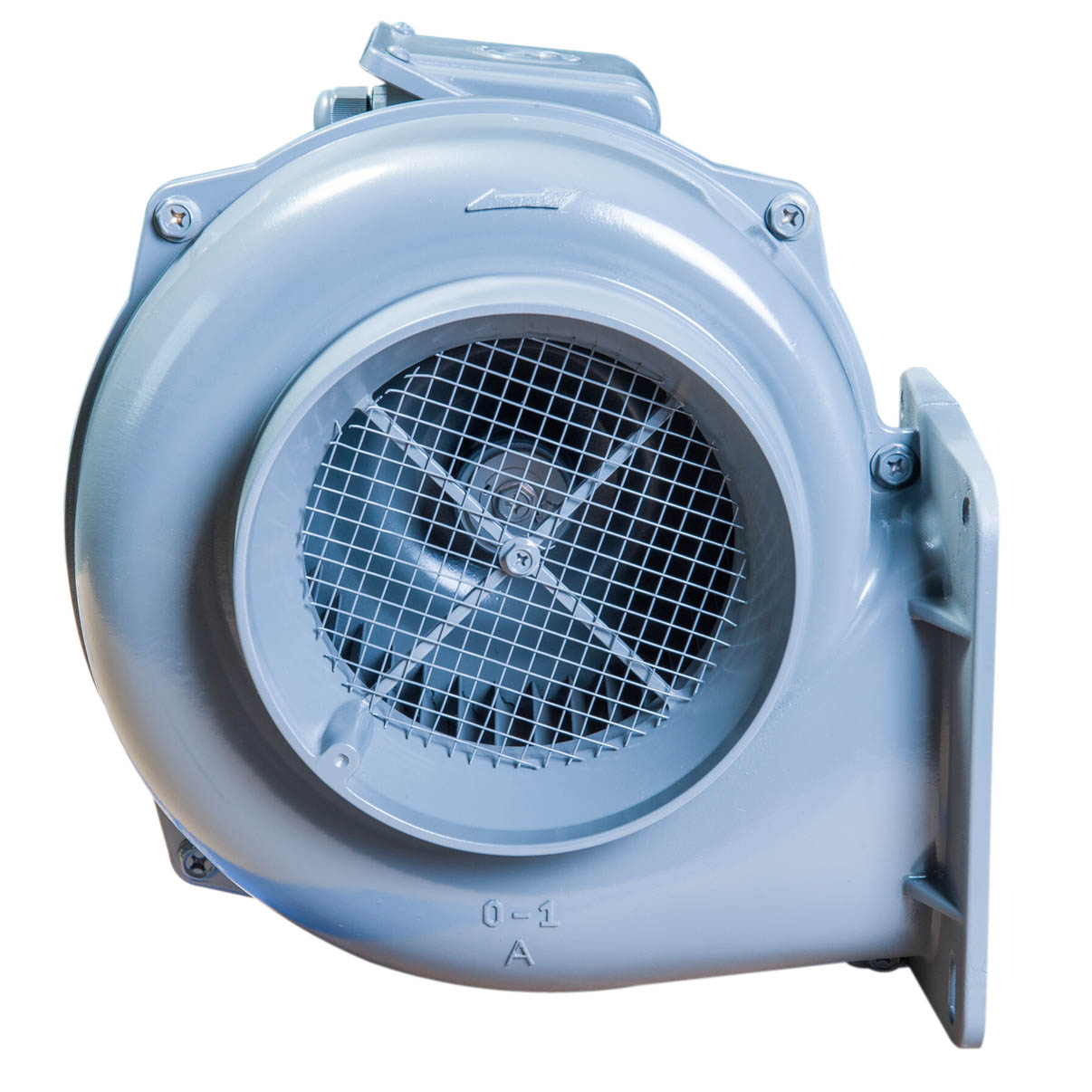

stable low pressure ring blower for Natural gas combustion-supporting machine

The main accessories of MS series blower are all made of ADC-12 high-strength aluminum die-casting, and the impeller is designed as a multi-wing impeller, which is made up of 28 blades and impeller disks. The blades are made according to the hydrographic cambered surface, which can achieve the characteristics of high wind speed and large air volume.

FEATURES AT A GLANCE


          Left side                        Frontage                     Right side

TYPE	POWER	VOLTAGE	CURRENT	VACUUM	AIR FLOW	WEIGHT
1 PHRSE
MS-202A	0.2	220	1.5	0.5	8	6
MS-405A	0.4	220	2.5	0.6	15	8
MS-751A	0.75	220	5	0.7	23	11
SM-1502	1.5	220	9	0.9	29	21
MS-1503	2.2	220	8	1.1	39	24
3 PHASE
MS-202A	0.2	220/380	1.1/0.9	0.8	10	6
MS-405A	0.4	220/380	1.9/1.2	0.8	17	8
MS-751A	0.75	220/380	3/1.9	1	25	11
MS-1502	1.5	220/380	5.5/3.5	1.3	37	21
MS-1503	2.2	220/380	8/5	1.7	47	24

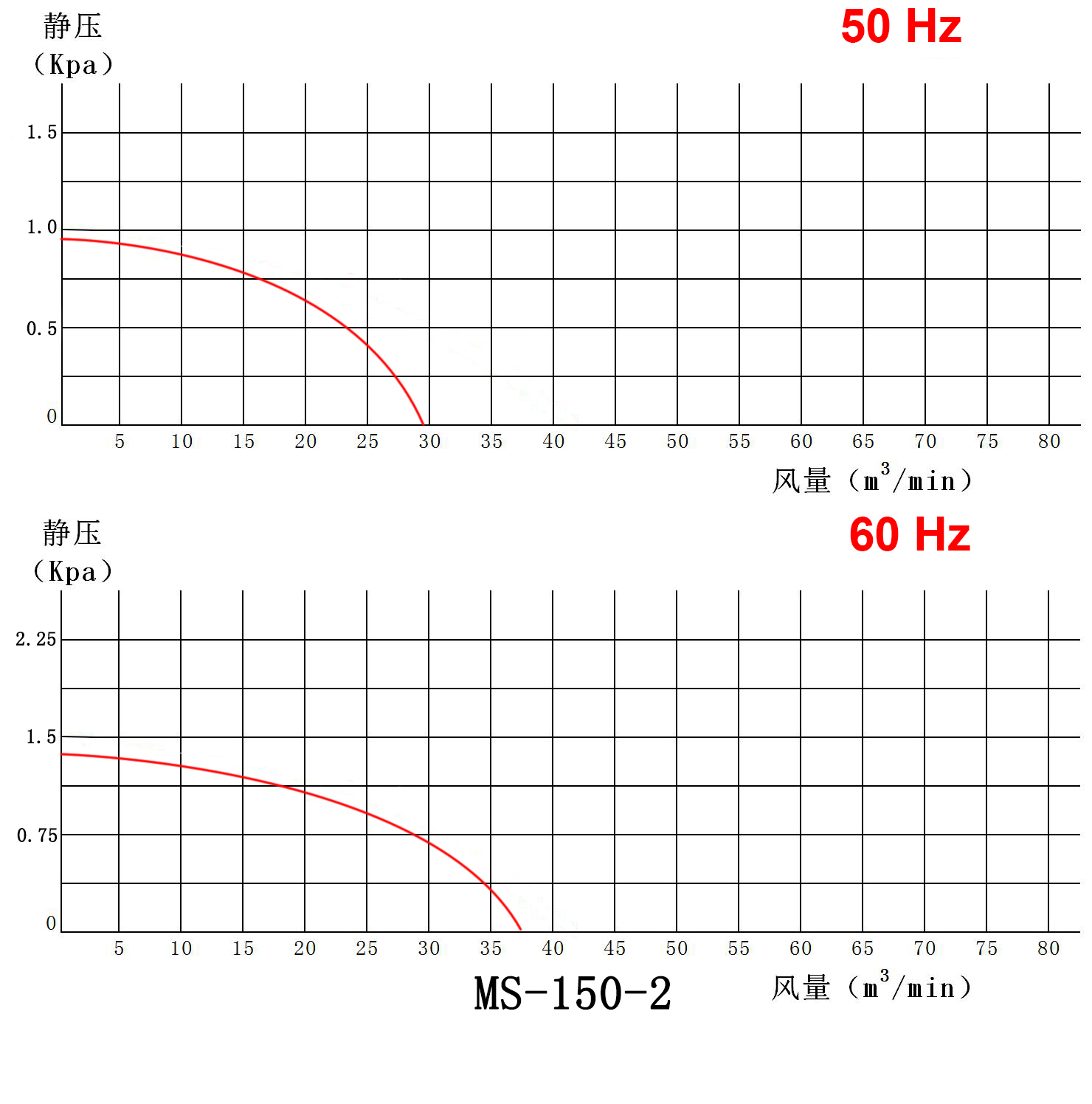

Performance graph

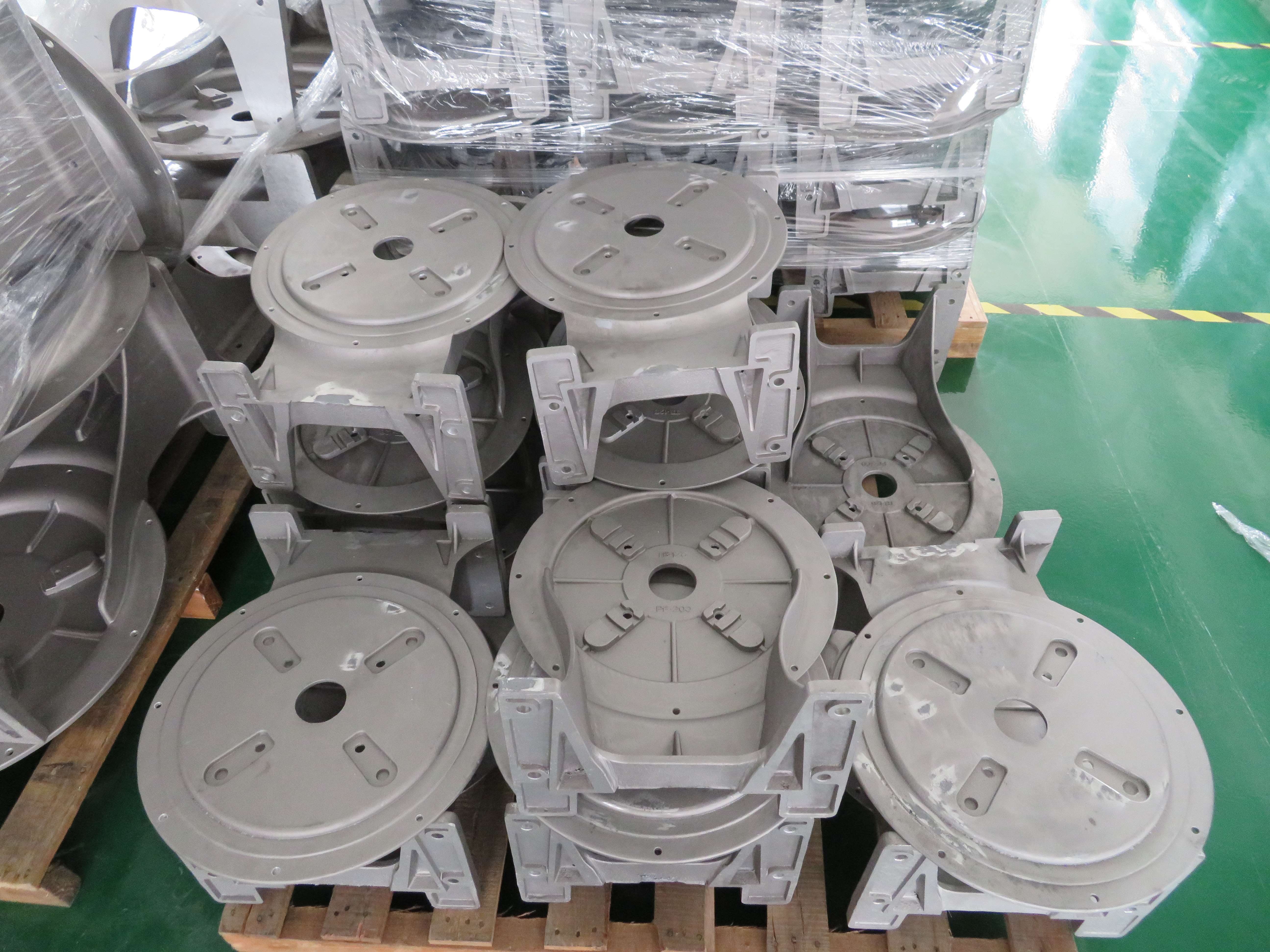

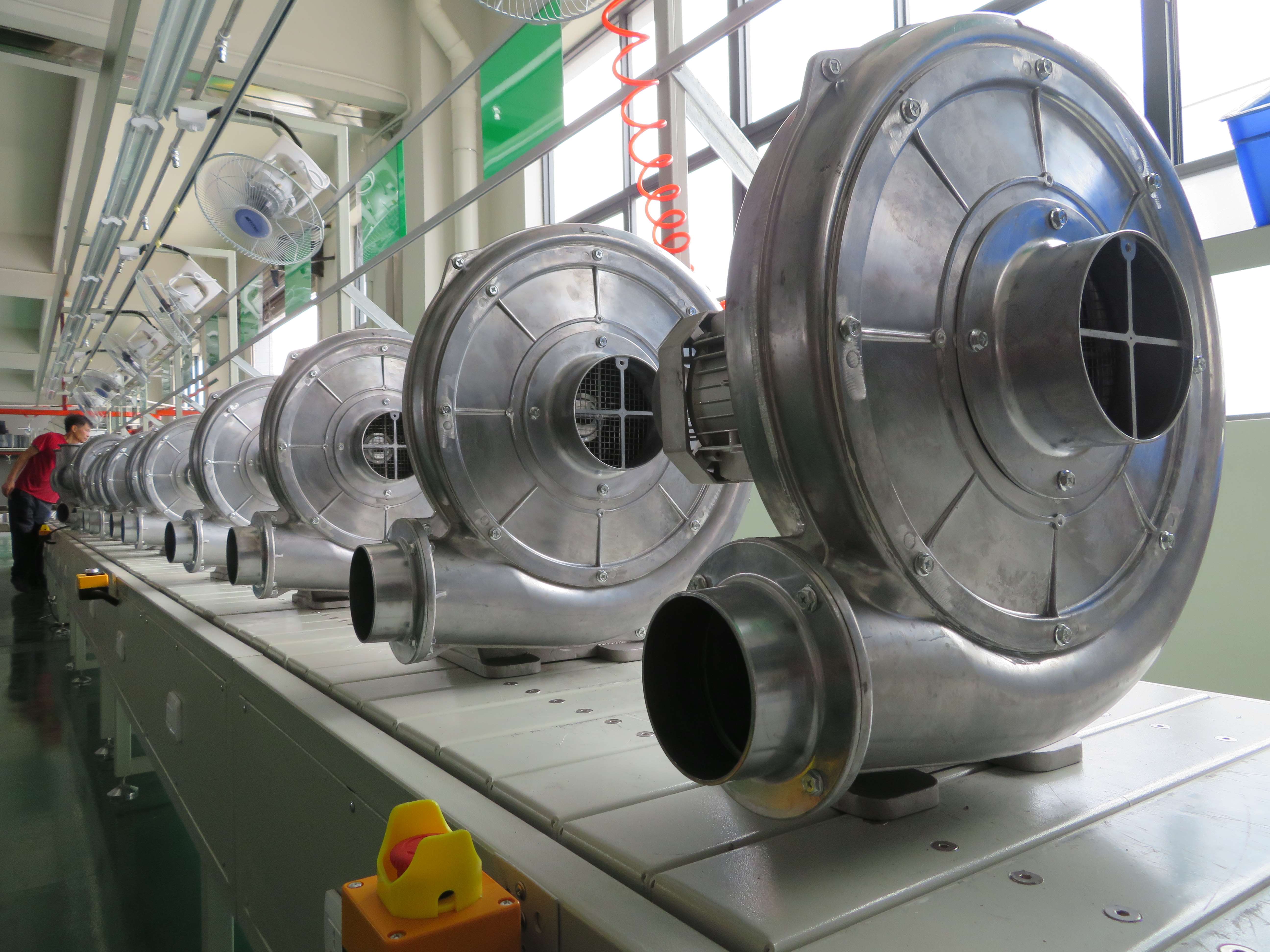

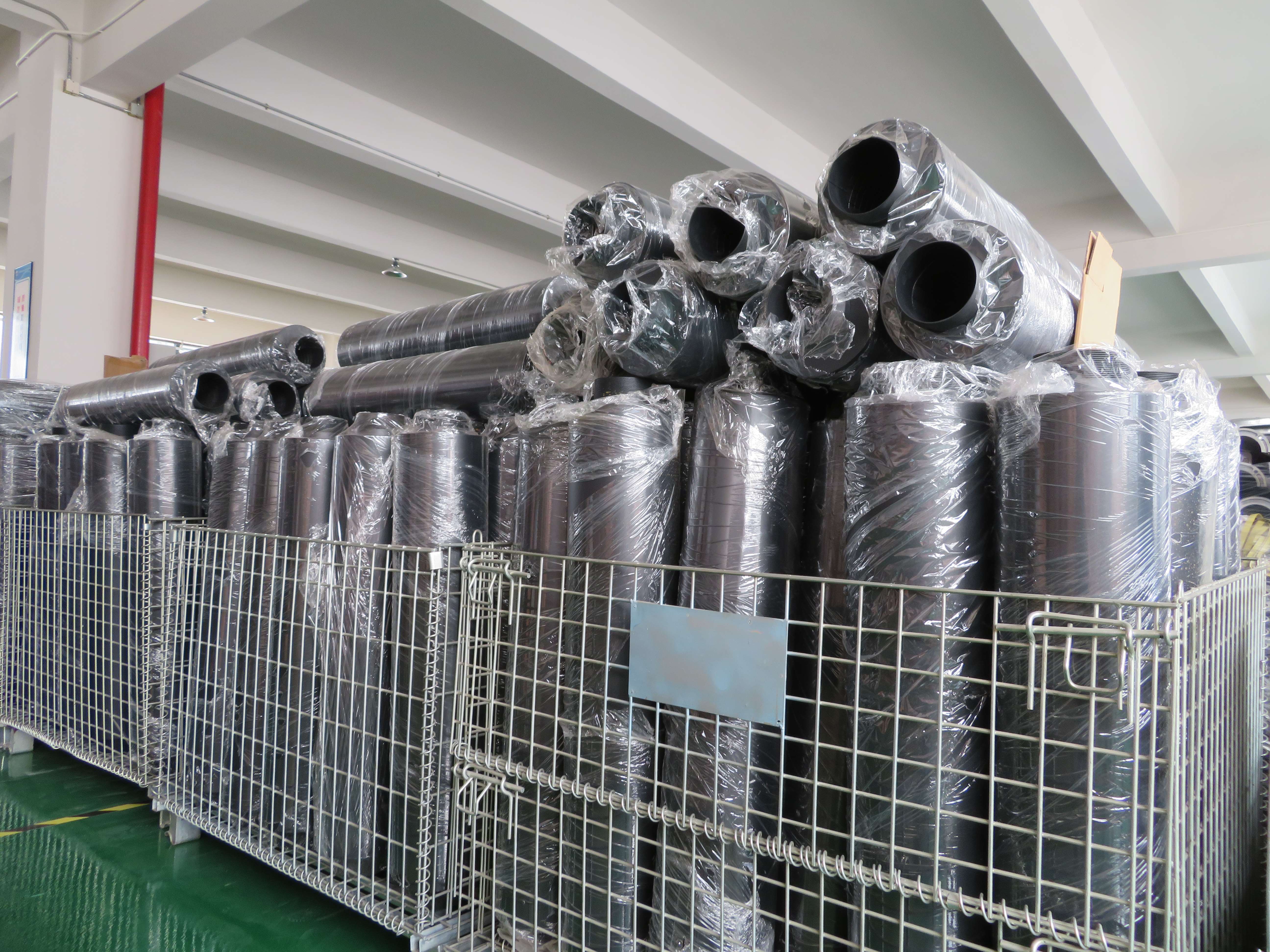

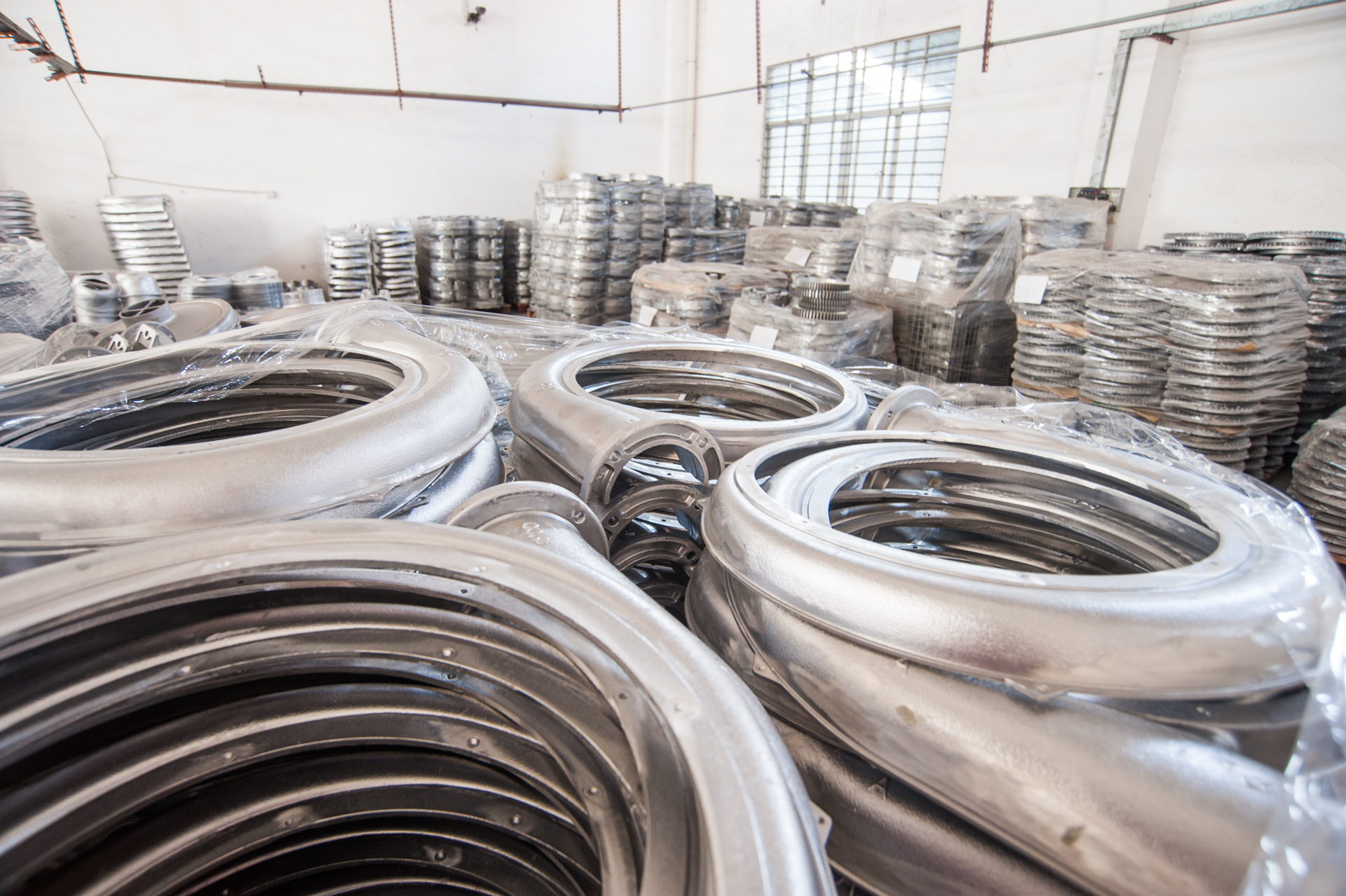

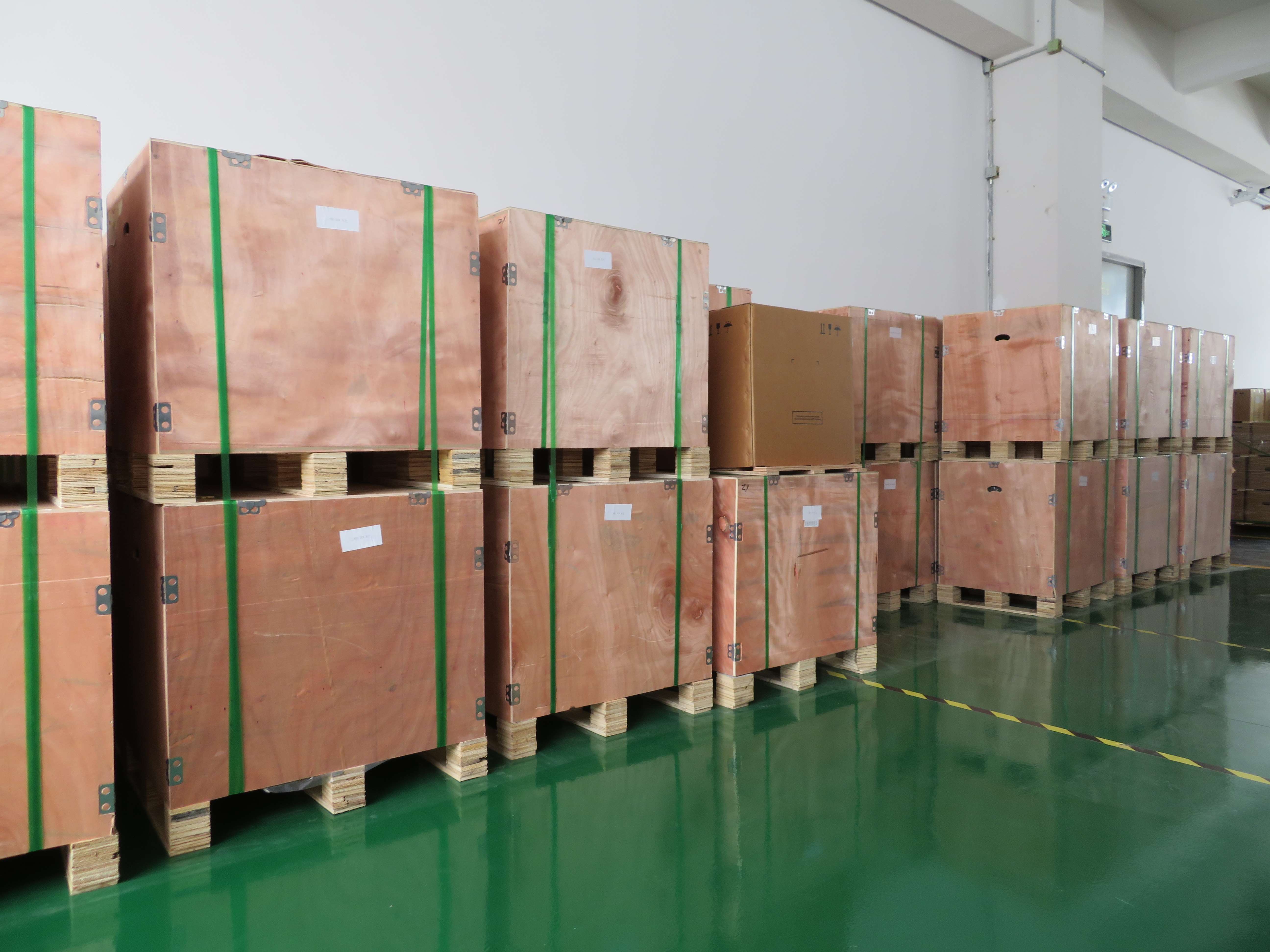

Our factory

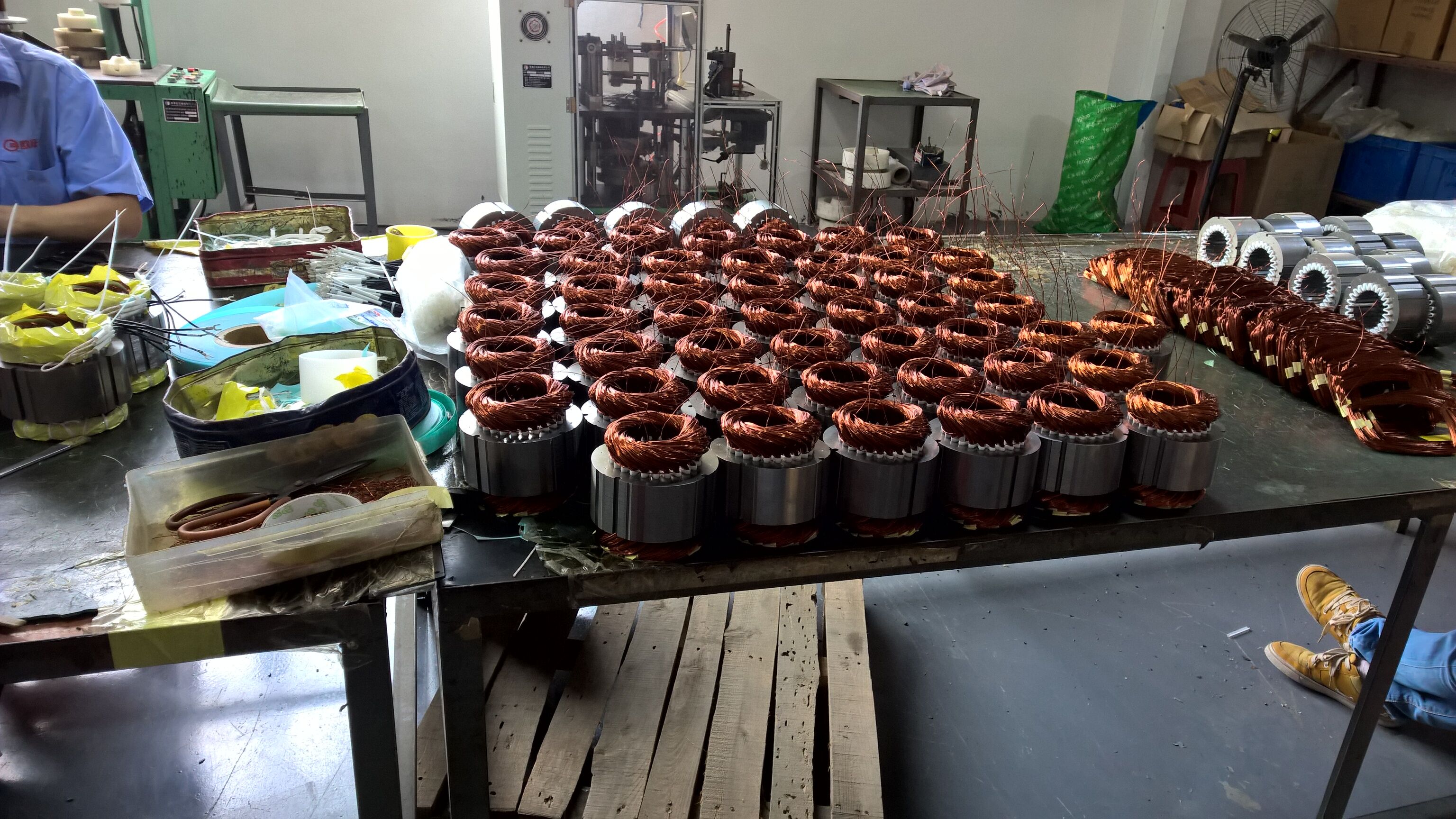

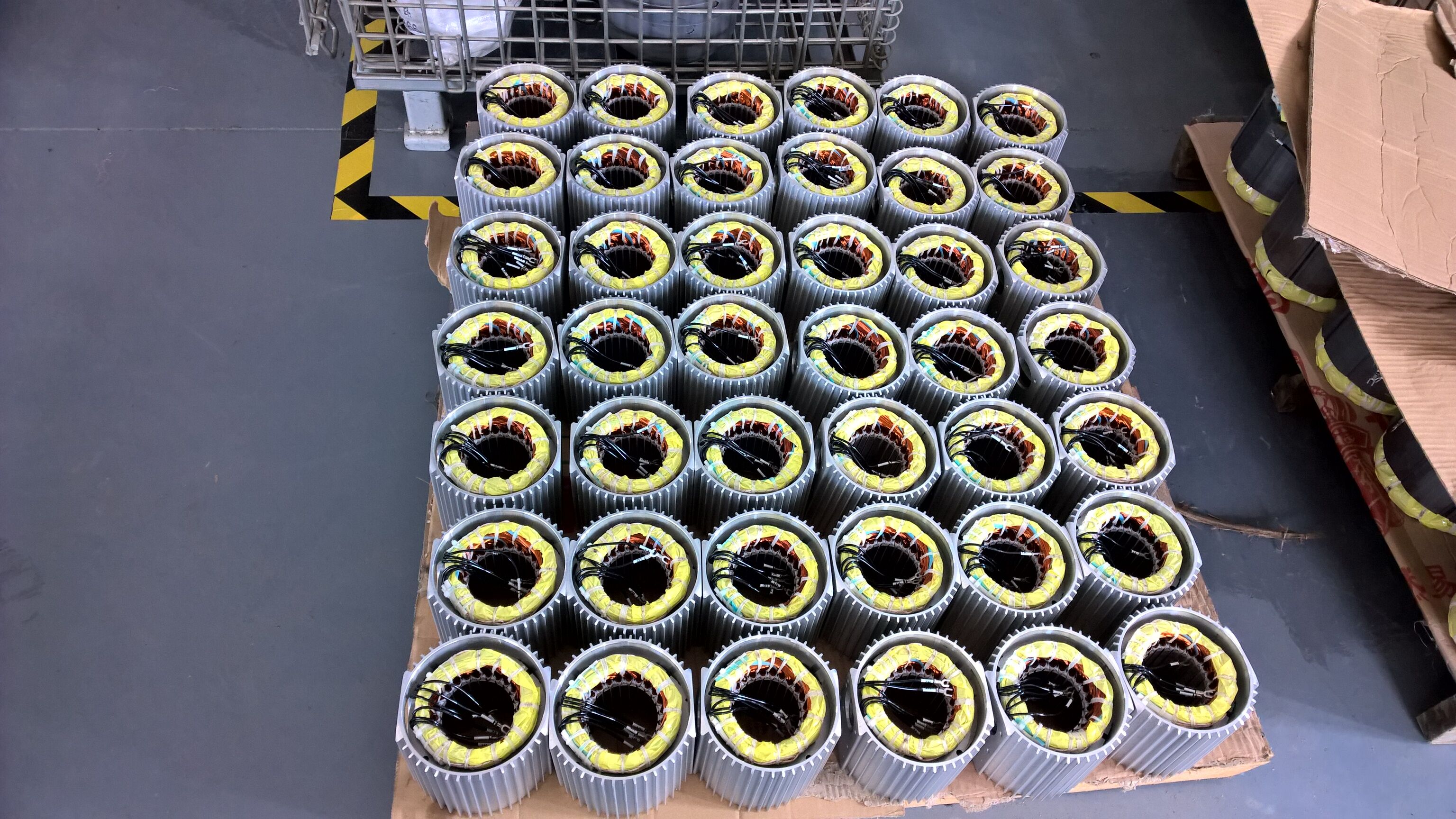

Pure copper coil

High strength protection

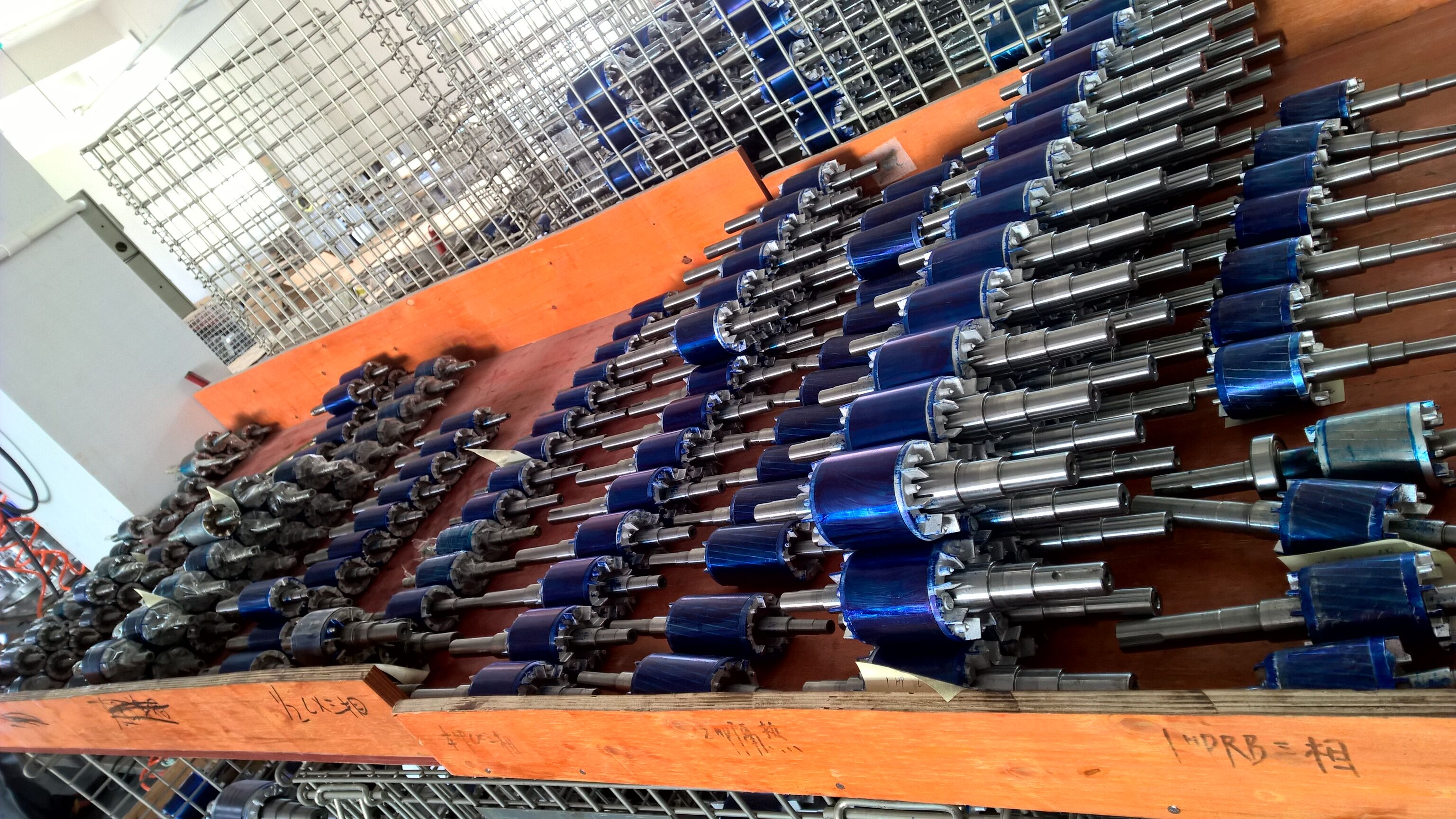

Steel shaft core
