Product Details

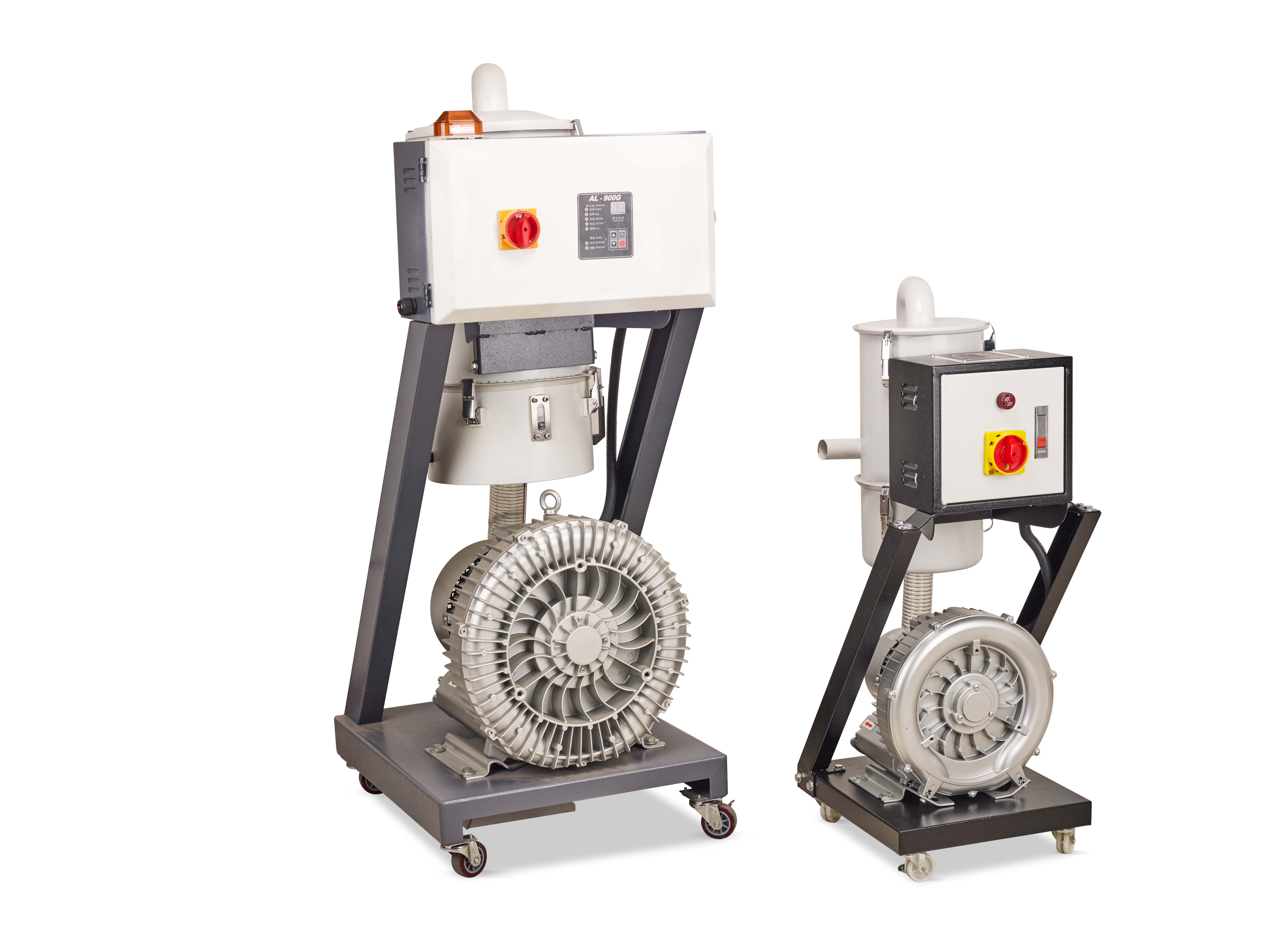

Factory Price High Power Recycling Hopper Plastic Loader Suction Machine Automatic Dust Removal Vacuum Plastic
Manvac A pair or tow/four separation type automatic material feeding machine series,suitable for the transport of plastic particles,the main use of motor operation to produce a vacuum,so that the material can produce a pressure difference to transport the plastic.
Product Description
• A pair of two / four feeder, can greatly save the cost. • Under suction type design, filter, collocation cyclone baffle and separation type dust collecting barrel, effectively reduce the load of filter. • Host standard equipped with alarm lights for the alarm device, the other to provide a buzzer for matching. • Separation and installation of the main engine and the hopper, the operation is simple, beautiful and durable. • Can HMH collocation (vacuum hopper) or HVH (electric eye hopper), to meet the use of various combinations of workshop. • Adopt stainless steel hopper, wear resistant non polluting material. • Separation type dust collecting bucket, which is convenient for removing dust. • Hopper equipped with diaphragm valve, so that the material is more smooth. • Using the European safety plug, the use of safe and reliable. • Using hopper filter mesh for 30 mesh, wire diameter is 0.1 MM stainless steel wire production, when conveying the feedstock recycling material accounted for 30% and above, the optional mesh for 14 orders, wire diameter is 0. 5mm stainless wire making filtering net, increase the service life.
Model
Motor Power
(KW)
Specification
Dimensions
(CM)
Net weight
(KG)
Hopper
(CM)
Hopper capacity
(L)
Storage capacity
Delivery value
(KG/H)
Feeding height
(M)
TC-1HP
0.75
3
46*38*820
46
40*30*44
6
7.5
300
4
TC-2HP
1.5
3
60*50*820
58
40*30*50
6
7.5
500
4
TC-3HP
2.2
3
60*50*82
85
40*30*50
6
7.5
600
4
TC-5HP
3.75
3
60*50*110
100
40*30*50
6
7.5
800
4
TC-7.5HP
5.5
3
60*50*140
120
40*30*70
10
12
1000
4
TC-10HP
7.5
3
60*50*140
130
40*30*70
10
12
1200
4
CERTIFICATE
SUCCESSFUL PROJECT
Company Profile
Dongguan Mingkai Electromechanical Co., Ltd.is located in Dongguan, a garden city with the reputation of "world factory".Established in July 2002, Factory space 6000m2. In the field of plastics industry, food industry, chemical or pharmaceutical industry or even in the sector of environment. Wide range of Products: side channel blower, high speed turbo blower, industrial air products with high efficiency motor, NSK and SKF bearings. More than 10 years, experience for industrial air products. Dia casting machine, CNC machining equipment, automa tic wire winding machine, electric test machine, rotor balancing machining machinejmpeller balancing testing and machining machine etc.
