Product Details



CF-160-QS Double Inlet Centrifugal Blower


Air conditioning blower is a new type, energy-saving, high efficiency, variable speed and low noise business blower, this type of blower is compact structure, easy to install, small size, large air volume, high pressure, small vibration, with three-phase pressure regulator or inverter, can implement stepless speed regulation, especially suitable for ventilation places with strict noise requirements and large air volume change range, and is an ideal supporting product for air conditioning, purification and other industries.


Prodcut Description
The high-temperature and high-pressure refrigeration steam coming out of the compressor enters the condenser through the high-pressure hose; Because the outside temperature is lower than the temperature of the refrigerant entering the condenser, with the help of the condensing fan, the refrigerant flowing in the condenser is large Part of the heat is taken away by the outside air, so that the high-temperature and high-pressure gas is condensed into a high-temperature and high-pressure liquid.

When this kind of high-temperature and high-pressure liquid flows through the throttling expansion valve, due to the throttling effect, the volume suddenly becomes larger and the pressure is lowered, and the mist liquid that becomes low-pressure and low-temperature enters the evaporator and vaporizes under constant pressure, because the temperature of the refrigerant in the vaporization tube is lower than the circulating air in the car outside the evaporator tube, so it can absorb the heat in the air outside the tube, so that the air temperature flowing through the evaporator is reduced, so as to produce the refrigeration cooling effect, and the vaporized refrigeration steam is sucked and compressed by the compressor to become a high-temperature and high-pressure gas to complete the circulation of a refrigeration system.

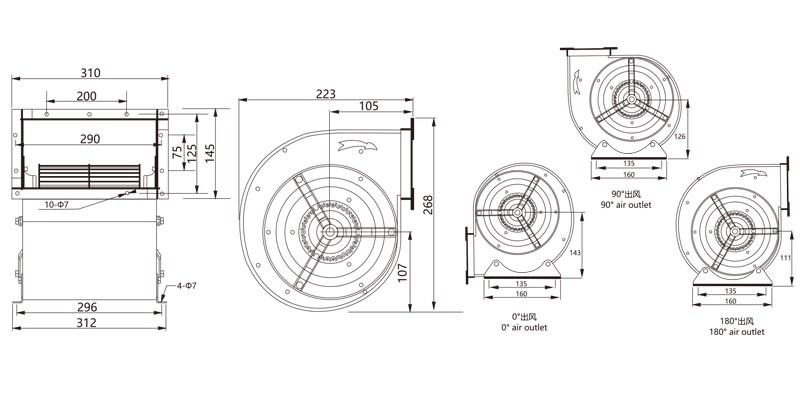

Schematic diagram





The main parameters

Model Frequency Voltage currenlr Power Speed Air Volume

Statlc



Poressure

 Noise
NO Hz  V A W r/min m3/h Pa dB(A)
CF 4E-160-QS 50 220 0.9 150 3000 3100 120 68
CF 4E-160-QS 60 220 1.8 300 2800 4500 150 68
