Product Details

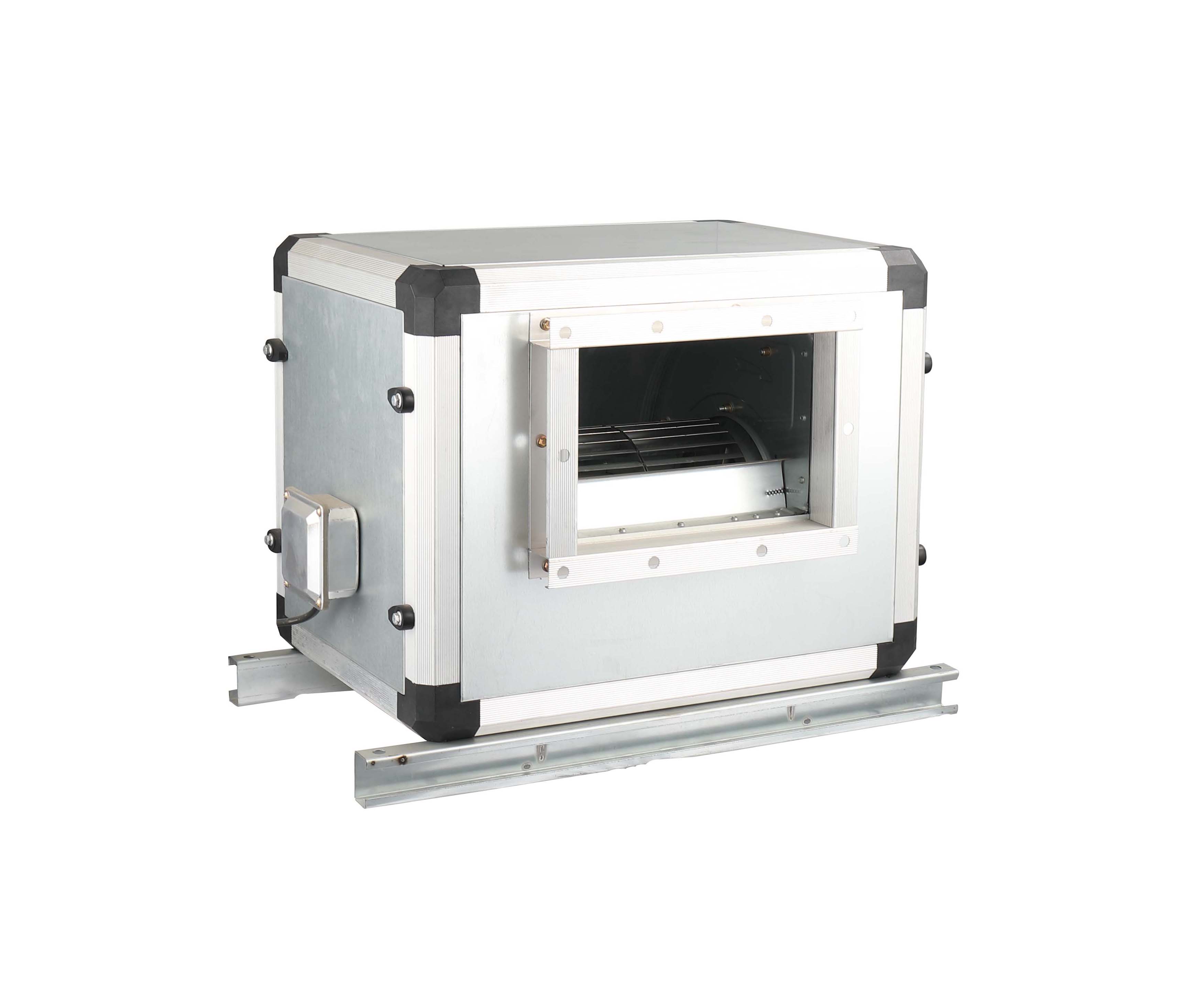

SCF-280-QS Box Centrifugal Blower





The SCF series cabinet centrifugal blower is a new type of fan developed andlaunched by our company based on the introduction, digestion. andabsorption of advanced technology at home and abroad. The box bodyadopts a profile frame box board assembly design, and the hinge board ismade of high-quality cold*rolled steel plate bent, which is a double-layercomposite structure,The interior is filled with fire-resistant insulation andsound-absorbing materials to prevent frosting in low-temperatureenvironments and effectively reduce noise and vibration, lt is an idealproduct for ventilation, ventilation, and smoke exhaust in hotels, hotelscinemas, basements, industrial and mining enterprises, office buildingsservice areas, and other places, lt is an updated product of fire exhaust blowers for high*rise buildings and has been sold well throughout the country.receiving high praise from users.

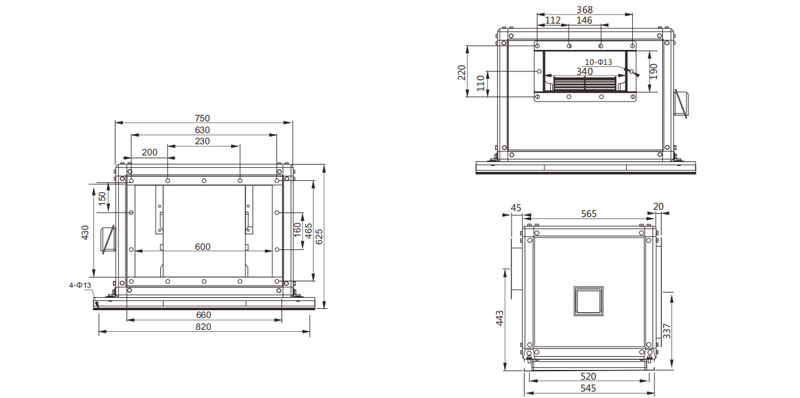

Schematic diagram






The main parameters

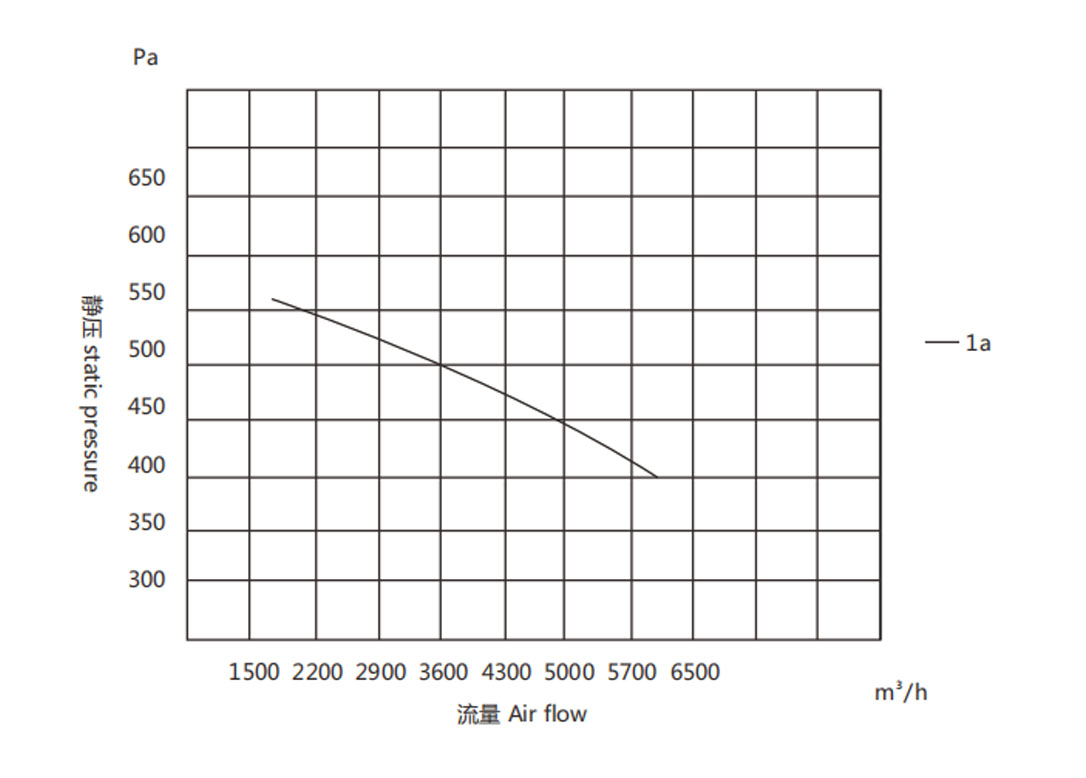

Model NO.ON THE CURVE Frequency Voltage Currentr Max.powerinpur Speed Air Volume Poressure Noise Caocitnce
No   HZ V A W r/min m³/h Pa dB(A) μF
SCF4D-280-QS 1a 50 380 3.85 1500 1350 5500 500 78 -
SCF4D-280-QS 1a 50 380 10.5 2200 1330 5350 490 79 40
