Product Details

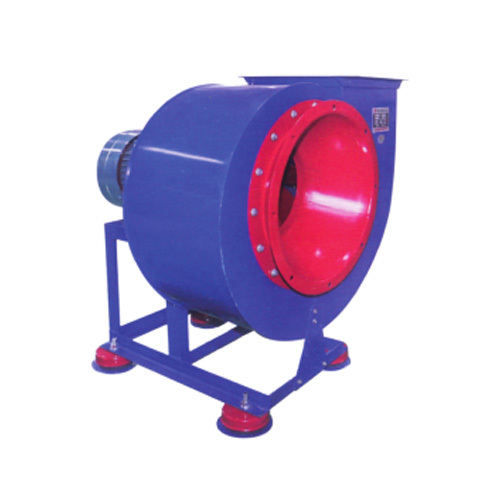

 T4-72 centrifugal blower


The T4-72 centrifugal blower can transport air and other non-spontaneous combustion, harmless to human beings, non-corrosive to steel materials. The gas is not allowed to have viscous substances, the dust and hard particles contained in it are not more than 150mg/m³, the gas temperature does not exceed 80 °C, the machine is suitable for indoor ventilation and ventilation of general factories and buildings, which can be used as input gas and output gas.

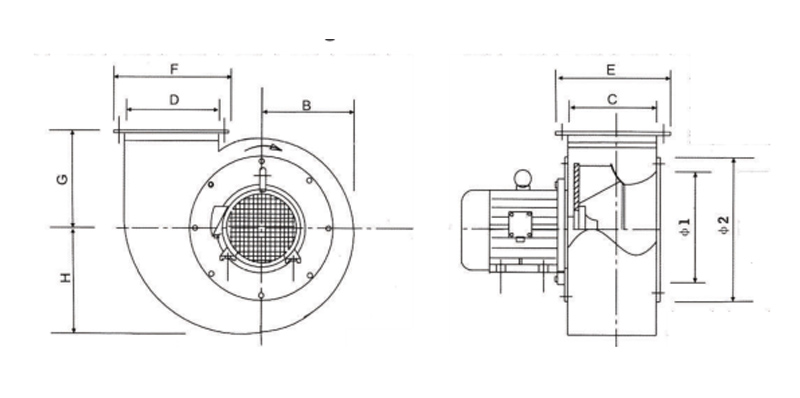

Schematic diagram



The main parameters
(NO.) rotate speed(r/min) Equipped with motor(Kw-p) flow(m3/h) Full pressure(Pa)
3A
2900
1450
1.5-2
0.75-4
1588-3049
794-1524
1142-716
285-179
3.5A
2900
1450
3.0-2
1.1-4
2522-4841
1261-2421
1556-976
388-243
4A
2900
1450
5.5-2
1.1-4
3764-7226
1882-3613
2036-1275
506-318
4.5A
2900
1450
7.5-2
1.1-4
5360-10288
2680-5144
2582-1616
641-402
5A
2900
2900
11-2
15-2
7352-8318
9284-14113
3195-3145
3067-1998
6A
1450

1450
960
2.2-4

4.0-4
1.5-6
3676-7057

6352-12194
4206-8075
792-497

1142-716
499-313






Number B C D E F Φ1 Φ2 G H
3A 250 185 312 245 372 300 360 225 315
3.5A 290 215 365 275 425 350 410 265 370
4A 335 250 416 310 476 400 460 300 420
4.5A 380 280 470 340 530 450 520 340 475
5A 420 310 520 390 600 500 560 380 526
6A 505 370 650 450 730 600 670 450 630
