Product Details

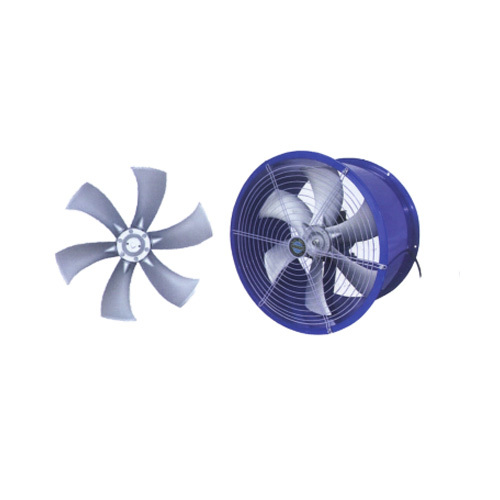

 Axial blower T35-11


T35-11 axial blower is a product that replaces 30K4, T35 analyzes and compares T40 and similar foreign products, determines the airfoil and cylindrical wheel structure of the fan through model-level experimental research, improves the motor design, and reduces the flow loss structurally. Therefore, the efficiency of the blower is increased to 89.5%, the noise level is reduced by 3.6dB than the sound level of A, and the strength at the root of the leaf is enhanced, and the phenomenon of blade fracture is avoided, and the series of blowers is a product jointly designed by the national blower energy-saving group in 1985. This series of blowers is suitable for transporting non-flammable, explosive, non-corrosive, no significant dust gas, and its temperature shall not exceed 60 °C. It is widely used for ventilation or heat dissipation in factories, warehouses, offices, and houses. It can also be installed in a long exhaust duct to increase the pressure in the duct, and the chassis can also be used as a free blower when removed. BT 35-11 is an explosion-proof axial blower, which can be used for ventilation of flammable, explosive and other volatile gases, and its performance parameters are consistent with T 35-11. FT35-11 position anti-corrosion axial blower, can be used to transport corrosive gases, its performance parameters are the same as T35-11.

Schematic diagram




The main parameters


 NO.  Impeller diameter(mm)  Blade angle(deg)  rotate speed(r/min)  Equipped with motor(Kw-p)  Air(m³/h) Full pressure(Pa)
 2.8
280
 280
30
 30
2900
 1450
0.25-2
 0.09-4
2921
 1464
186
 48
 3.15
315
315
30
 30
2900
 1450
0.37-2
 0.09-4
4141
 2072
237
 59
 3.55
 355
355
30
 30
2900
 1450
0.75-2
 0.12-4
5965
 2977
300
 74
 4
400
 400
30
 30
2900
 1450
1.5-2
 0.25-4
8513
 4263
380
 95
 4.5  450 30  1450  0.37-4  6070  121
 5
500
 500
30
 30
1450
 960
0.75-4
 0.37-6
8327
 5566
149
 64
 5.6
 560
560
30
 30
1450
 960
1.1-4
 0.37-6
11682
 7724
186
 61
 6.3
 630
630
30
 30
1450
 960
1.1-4
 0.75-6
16639
 11016
236
 104
7.1
710
710
30
 30
1450
 960
3.0-4
 0.75-6
23815
 15766
300
 131
8
800
800
30
 30
1450
 960
5.5-4
 1.5-6
34073
 22556
380
 167
 9  900 30  960  3.0-6   32119  211
 10  1000 30  960  4.0-6  44062   261
 11.2  1120 30  960  7.5-6  61091   337
