Product Details

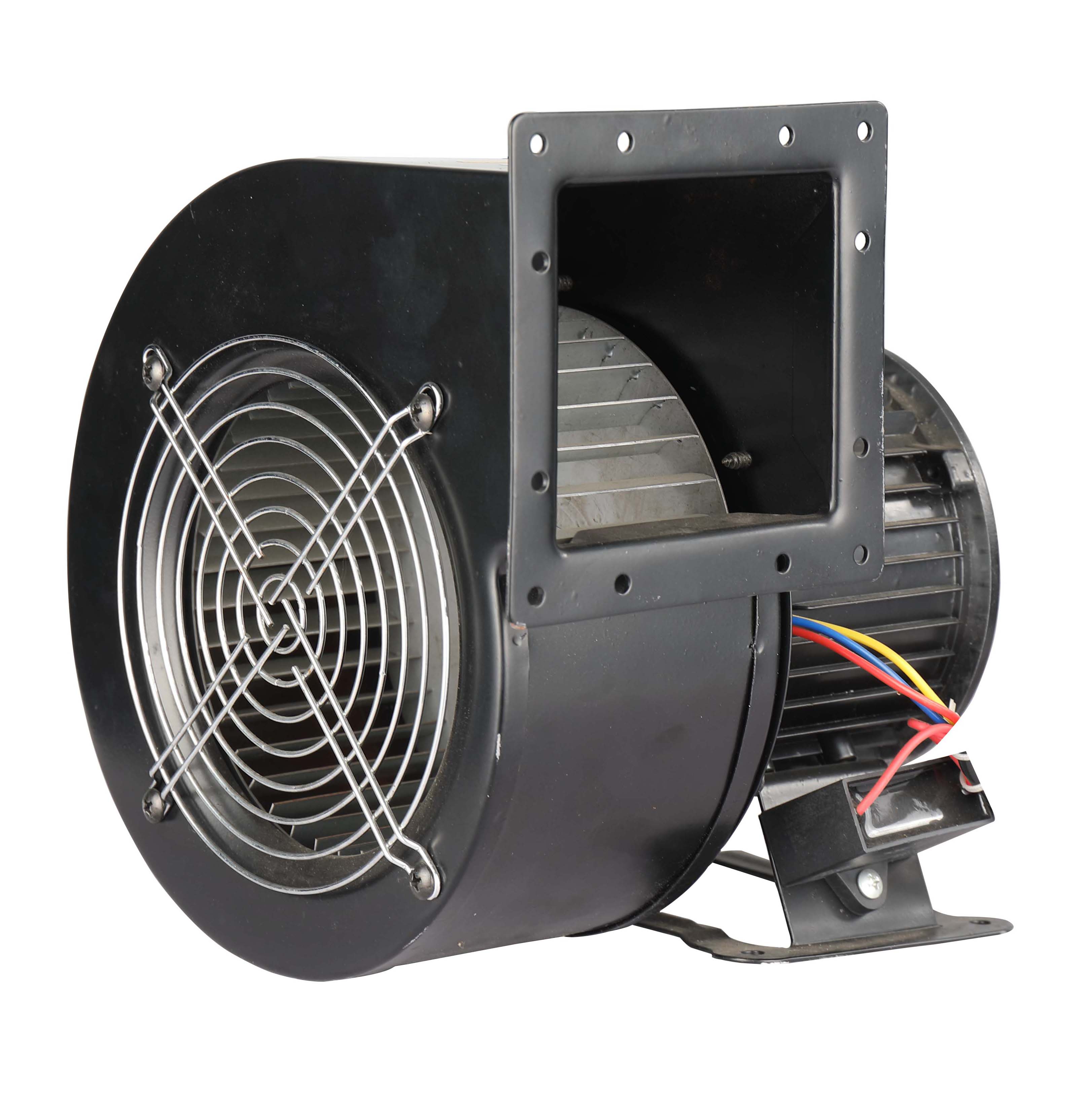

 FLJ gas mold blower


This series of blowers is composed of internal rotor or external rotor, asynchronous motor, metal impeller, etc., which meets international general specifications. It has excellent performance such as compact structure, small size, light weight, large air volume and easy installation. This series of blowers has high quietness, especially suitable for automatic control devices, electronic equipment forced ventilation pads. It can also be used indoors, pipeline dust exhaust, exhaust pads, environmental protection, air purification and pollution control, and air molds.

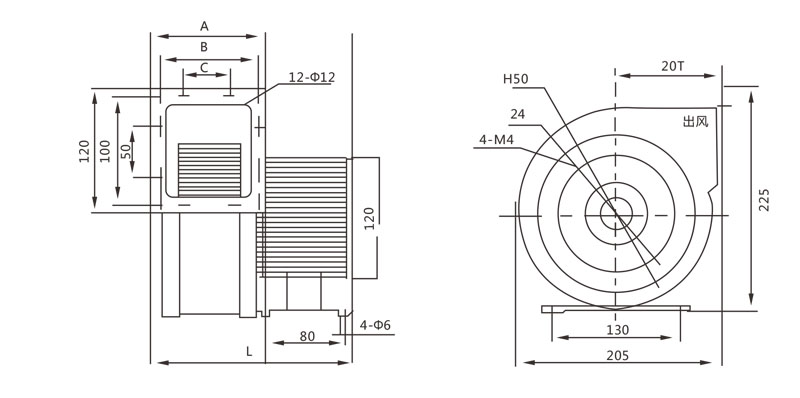

Schematic diagram




The main parameters


Model Frequency Voltage Currentr Max.powerinpur Speed Air Volume Pressure Noise Caoacitnce
No Hz V A W r/min M3/h Pa dB(A) μF
130FLJ-1 50 220 0.4 85 2200 3.6 280 ≤70 2.5/400
130FLJ-5 50 220 0.55 120 2600 5.5 350 ≤72 3/400
150FLJ-17 50 220 1.05 240 2600 9 420 ≤72 3.5/400
150FLJ-7 50 220 1.6 330 2800 11 450 ≤76 5/400
170FLJ-3 50 220 1.6 400 2700 12 500 ≤72 5/400
170FLJ-4 50 380 1.1 400 2700 12 500 ≤72 5/400
170FLJ-7 50 220 2.3 500 2700 15 530 ≤75 3.5/400
170FLJ-8 50 380 1.3 500 2700 15 530 ≤75 3.5/400
