Product Details

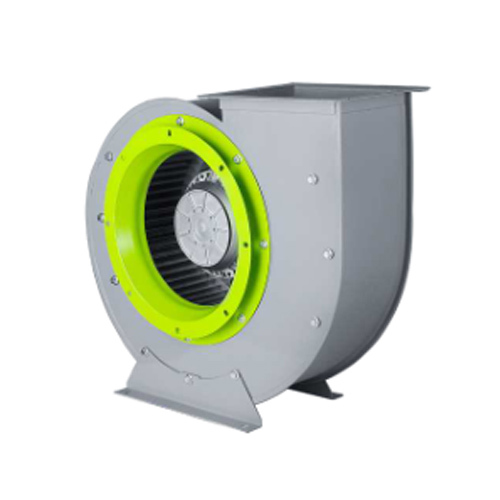

 YWL series external rotor centrifugal blowers
YWL series low-noise external rotor multi-wing centrifuge is our company absorbs advanced technology at home and abroad, research and development of Th production of new centrifugal blower, all using molded Th production, high-precision dynamic balance correction, the surface of high-grade electrostatic spraying treatment. It has the advantages of small size, large air volume, high efficiency, low vibration, low noise, convenient installation and debugging. The gas transported by this series of blowers is not allowed to have viscous substances, non-corrosive, non-flammable and explosive. According to the conditions of use of the motor, the blower must be used under the condition that the ambient temperature is -30 °C ~ 60 °C, the relative humidity is not more than 90%, and the altitude is not more than 1000m. This series of fans are widely used in civil, industrial buildings, laboratories and other ventilation, environment with strict noise requirements and air conditioning, purification and refrigeration industries


Schematic diagram







The main parameters


Model Frequency Voltage Currentr Powerinpur Ratek Speed  Air Volume  Pressure Noise Caoaitnce
No Hz V A W r/min M3/h Pa dB(A) μF
YWL2E-130  50  220  0.65  140  2650  700  260  65  5
YWL2E-150  50  220  0.8  180  2600  900  375  72  6
YWL2D-150  50  380  0.5  180  2600  900  375  72  /
YWL4E-200  50  220  1.4  330  1360  1500  325  62  10
YWL4D-200  50  380  0.8  310  1360  1500  325  62  1
YWL4E-250  50  220  2.8  580  1360  2300  440  65  18
YWL4D-250  50  380  1.3  560  1360  2300  440  65  /
YWL4E-300  50  220  6.3  1250  1360  3200  480  70  20
YWL4D-300  50  380  2.5  1250  1360  3200  480  70  /
YWL4E-300G  50  220  6.5  1400  1400  3500  500  71  20
YWL4D-300G  50  380  2.8  1300  1400  3500  500  71  /
YWL4E-300T  50  220  8  1800  1380  4000  520  72  30
YWL4D-300T  50  380  3  1600  1400  4000  520  72  /
YWL4E-350  50  220  11  2200  1380  4500  500  74  40
YWL4D-350  50  380  4.5  2800  1400  4700  540  75  /
