Product Details

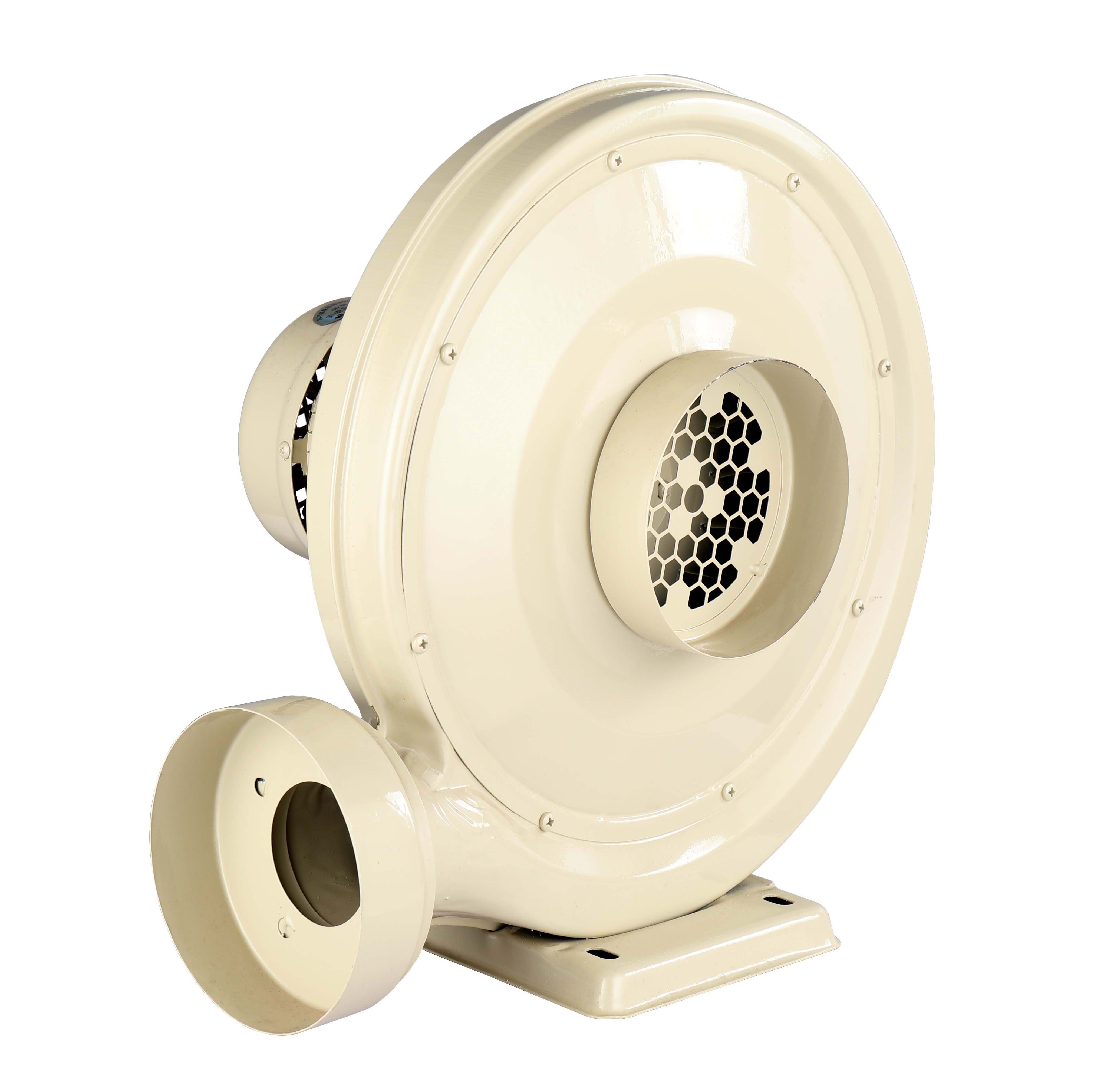

 New vacuum suction medium pressure blower series


The main parameters




Model number CZR80
 Profile size（mm)   L250 B405  H440
 Full pressure 1.7Kpa   Air outlet flange size (mm)  B1195  H2166  D1127.5
 Flow rate 18 m3/min     D2108.5 D368   4-d1φ8.5x13.5
 Noises  86 dB  Base plate and anchor screw hole size (mm)  H1238  L1130  I280
 Voltage  220/380 V    L3100  L445  B1175
 Frequency  50 Hz    B2125  n-d4~10x18
 Power  0.55 kW
 Rotate speed  2.8 Kr/min



Model number CZR90
 Profile size（mm)   L305 B410  H440
 Full pressure 1.9Kpa   Air outlet flange size (mm)  B1197  H2155  D1127.5
 Flow rate 20 m3/min     D2108.5 D368   4-d1φ8.5x13.5
 Noises  90 dB  Base plate and anchor screw hole size (mm)  H1238  I1130  I290
 Voltage  220/380 V    I397  I460  B1175
 Frequency  50 Hz    B2124.5  n-d4~10x18
 Power  0.75 kW
 Rotate speed  2.8 Kr/min
