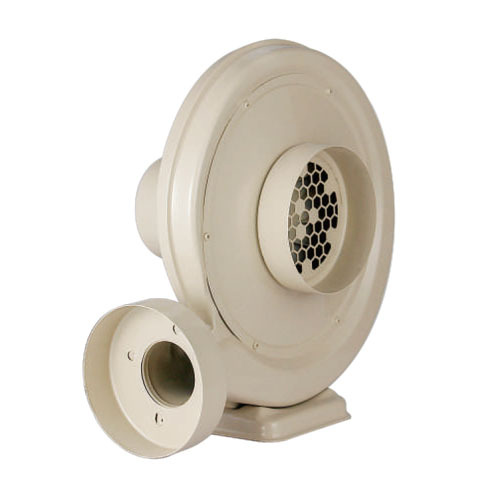

New waterproof medium pressure blower series

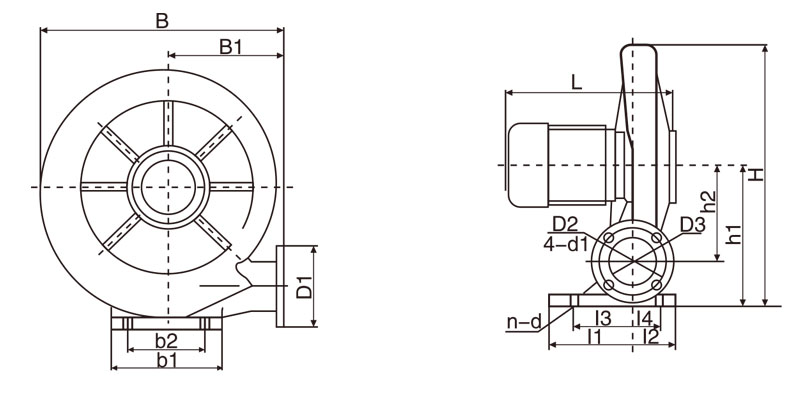

Schematic diagram

The main parameters

Model number CZR80		Profile size（mm)	L305	B410	H440
Full pressure	1.9Kpa	Air outlet flange size (mm)	B1197	H2155	D1127.5
Flow rate	20 m3/min		D2108.5	D368	4-d1φ8.5x13.5
Noises	90 dB	Base plate and anchor screw hole size (mm)	H1237	I1128	I290
Voltage	220/380 V		I397	I460	B1175
Frequency	50 Hz		B2124.5	n-d4~10x18
Power	0.75 kW
Rotate speed	2.8 Kr/min
