Product Details

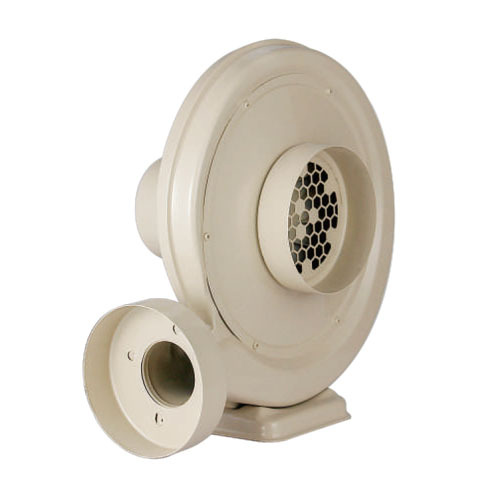

 New waterproof medium pressure blower series

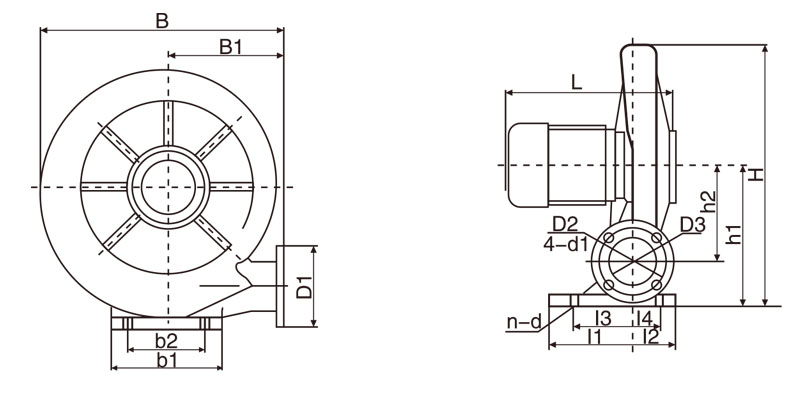

Schematic diagram




The main parameters


Model number CZR80
 Profile size (mm) L250 B405 H440
Full pressure 1.7 Kpa Air outlet flange size (mm) B1195 h2166 D1127.5
Volume 18 m3/min   D2108.5 D368 4-d1φ8.5x13.5
Noise 86 dB Base plate and anchor screw hole size (mm) h1238 L1130 I280
Voltage 220/380 V   L3100 L445 b1175
Frequency 50 Hz   B2125 n-d4~10x18
Power 0.55 kW



rotate speed 2.8 Kr/min
