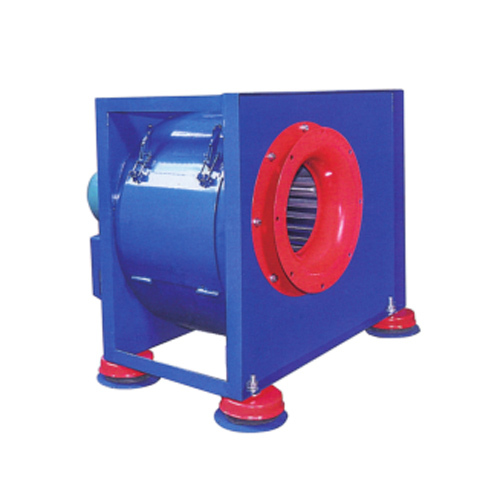

 XBF-62 kitchen smoke exhaust blower

 XBF series multi-wing low-noise kitchen smoke exhaust centrifugal blower is the application and absorption of the American "LAV" brand impeller design technology, using 11-62 series and CF series multi-wing blade structure form, and for its impeller in the kitchen smoke use is difficult to clean oil pollution, core research and improvement, with exquisite technology and rich experience design and manufacturing.

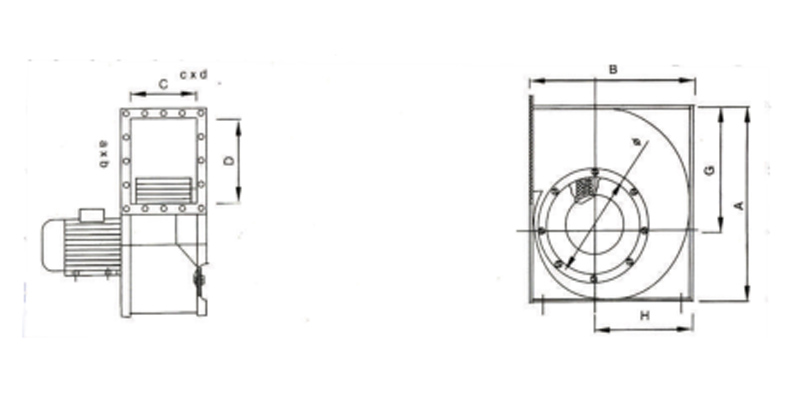

Schematic diagram




The main parameters

NO. r/min Kw-p m3/h Pa Db(A)
2.8A 1400 0.75 1375-2500 446-509 ≤73

3A

 910 0.75 1589-2648 281-270 ≤78
1400 1.5 2400-4000 640-615 ≤68

3.5A

 910 1.1 2814-4138 438-276 ≤81
1420 3 4250-6250 1000-630 ≤72
4A 960 3 4250-8000 569-434 ≤78

5A

 960 4 6000-9500 971-992 ≤83
960 5.5 7000-12000 1002-788 ≤85

6A

 720 5.5 9000-13500 808-514 ≤85
960 11 12000-18000 1436-914 ≤84

6.5A

 720 7.5 9750-15750 939-738 ≤84
970 15 13000-21000 1669-1312 ≤91
7A 720 11 14000-22000 1170-987 ≤88


 NO. A  B  C  D  E  F  1   2 G  H
 2.8A  330  340  275  275  340 340  280  330  228  292
 3A  650  340  290  275  355 340  280  330  238  303
 3.2A  650  340  320  275  385 340  320  370  251  310
 3.5A  710  340  290  275  355 340  350  410  290  337
 4A  805  380  380  310  450 380  400  460  310  380
 4.5A  888  380  390  310  460 380  450  510  350  343
 5A  1020  380  450  310  520 380  600  660  402  562
 6A  1155  380  470  310  540 380  600  660  402  562
 7A  1260  460  560  380  640 460  700  770  455  615
