Product Details

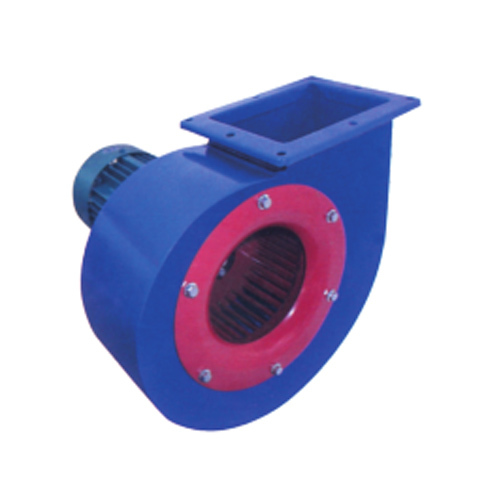

 DF Low noise centrifugal blower

  DF-11 series multi-wing blower process design is excellent, solid material, reliable performance, with low noise, high efficiency, long life, easy installation and other characteristics, widely used in telecommunications, electric power, electronics, geology, media mining, ships, papermaking and other industries, especially plastic machinery, printing machinery, mapping machines, dryers, blow molding machines, underground facilities cooling, temperature control and ventilation.

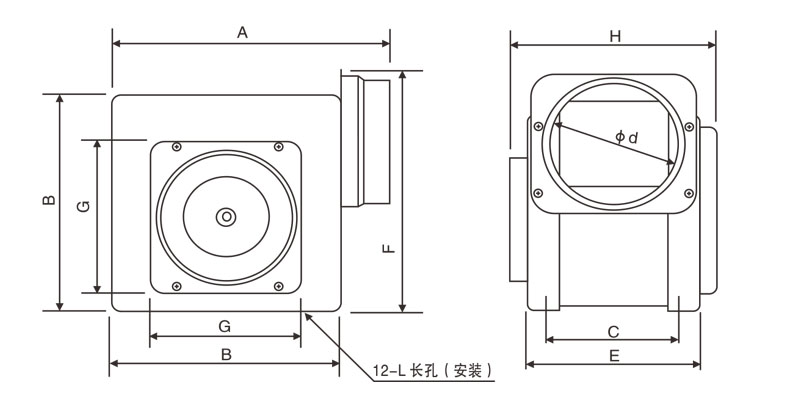

Schematic diagram



The main parameters

No. Speed(r/min) Motor(Kw-p) Flow(m3/h) Full pressure(pa) Noise (db A)
1.1 2800 0.12 305 412 72
1.3-Ⅰ 2800 0.18 405 450 75
1.3-Ⅱ 2800 0.25 504 860 75
1.6-Ⅰ 2800 0.37 660 850 76
1.6-Ⅱ 2800 0.55 860 1020 76
2-Ⅰ 2800 0.75 1200 1210 80
2-Ⅱ 2800 1.1 1900-2500 1300-1128 82
