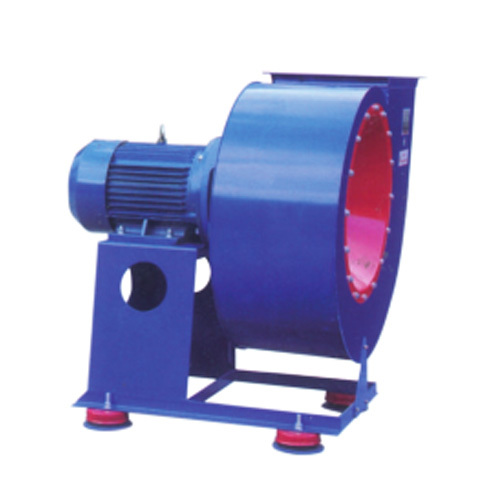

 WQE type high temperature resistant centrifugal blower



WQE type high temperature resistant centrifugal blower is a new product developed for drying industry, boiler industry, cleaning industry, painting industry, food drying industry. The use temperature of the fan is between 150 °C and 200 °C, if the conveying temperature exceeds 200 °C, the water pipe should be connected to cool down to ensure the life of the blower. The gas transported is air or other gases that do not spontaneously combust, do not self-explode, do not entangle, are harmless to the human body, and are not corrosive to steel materials. It can also be used as a non-corrosive, non-spontaneous combustion, non-viscous substance hot gas, steam, flue gas in various industries. Other similar properties can also be used, but the temperature of the conveying medium must not exceed its rated temperature range. There is no sticky substance in the gas, the dust and hard plasmid contained in it are not more than 150m/m³, if the amount of dust is large, a dust removal device with an efficiency of not less than 85% must be installed before the blower to reduce the dust content of the flue gas entering the blower, so as to improve the life of the blower.



Product model Equipped with motor(kw-p) rotate speed(r/min) Flow(m3/h) Full pressure(pa)

2.5A

 0.75-2Single 2900 829-1727 815-497
0.75-2triphasic 2900 829-1727 815-498



2.8A



 1.5-2Single 2900 1164-2426 1023-624
1.5-2triphasic 2900 1164-2426 1023-624
0.75-4Single 1450 582-1213 256-157
0.75-4triphasic 1450 582-1213 256-157



3.2A



 2.2-2Single 2900 1738-3587 1338-816
2.2-2triphasic 2900 1738-3587 1338-816
1.1-4Single 1450 869-1810 333-204
1.1-4triphasic 1450 869-1810 333-204


3.6A


 3-2triphasic 2900 2717-5373 1625-1018
1.1-4Single 1450 1371-2713 405-254
1.1-4triphasic 1450 1371-2713 405-254



4.0A



 5.5-2triphasic 2900 4093-7567 2074-1359
4-2triphasic 2900 4093-7567 1728-1133
1.1-4Single 1450 2066-3820 516-339
1.1-4triphasic 1450 2066-3820 516-339

4.5A

 7.5-2triphasic 2900 5826-10773 2605-1707
1.1-4triphasic 1450 2913-5386 653-428

5A

 15-2triphasic 2900 7882-15755 3250-2059
2.2-4triphasic 1450 3941-7885 813-520
5.6A 3-4triphasic 1450 7203-10082 985-781

6A

 4-4triphasic 1450 6810-13620 1162-739
1.5-6triphasic 960 4508-9017 513-327
