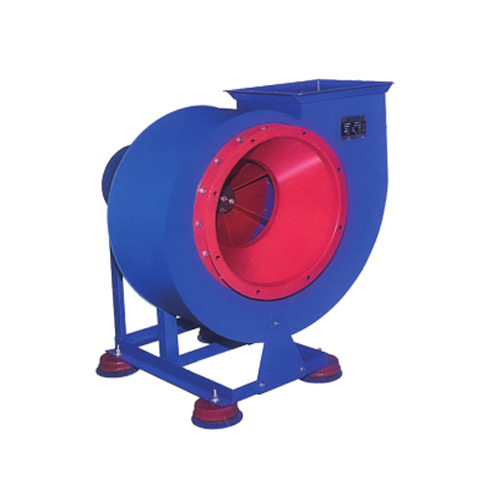

 6-46-11 Dust exhaust centrifugal blower


1. The 6-46-11 blower has a wide impeller, which is especially suitable for discharging air mixtures containing wood debris, fibers and dust, and the medium temperature does not exceed 80 °C, and can also be used as general ventilation.
2. The blower has 6 forward-curved blades, the front and rear discs of the flat plate and the cast iron hub, which has the characteristics of not easy to accumulate dust, wear resistance, etc., and the impeller is corrected by dynamic balance, so the performance is particularly stable and the operation is stable.
3. The blower has motor direct drive (A type) and belt drive (C type).

The main parameters

No. Rotate speed(kw-p) Flow rate(m3/h) Flow pressur(r/min) Electric motor model Power(kw)
3A 2900  1183-2891 1452-1205  Y100L-2   3
4A 1450  1404-3420  676-568 Y100L-4  2.2
5A 1450  2733-6660  1117-930 Y132S-4  5.5



6A


 		 1450  4725-8609  1607-1548 Y132M-4  7.5
1450  9580-11552  1490-1343 Y160M-4  11
960  3130-5710  706-626 Y112M-6  3
960  6355-7045  656-598 Y132S-6  3





3C




 		 3090  1260-3070  1646-1362 Y100L-2  2.2
2700  1100-2682  1254-1048  Y90S-2 2.2
2422  985-2406  1009-843 Y90S-2  1.5
2230  904-2206  853-706 Y90S-2  1.5
2030  827-2017  706-588 Y80S-2  1.1
1830  746-1718  578-480 Y90S-4  1.1





4C




 		 2320  2240-5460  1735-1441 Y132S1-2   5.5
2030  1962-4790  1333-1107 Y112M-2   4
1810  1747-4260  1058-882 Y100L-2  3
1665  1608-3918  892-745 Y90L-2  2.2
1520  1468-3582  745-617 Y90L-2  2.2
1305  1260-3080  549-461 Y90S-4  1.1





5C




 		 1740  3280-8005  1627-1333 Y132S2-2  7.5
1620  3054-7450  1401-1156 Y12S2-2  5.5
1390  2620-6400  1029-835 Y112M-2  4
1275  2183-5340  862-715 Y100L-2  3
1160  1960-4781  715-598 Y100L-2  3
1040  4398-10740  579-480 Y100L-2  2.2



6C


 		 1350  4080-9920  1402-1156 Y132S2-2  7.5
1255  3780-9219  1205-1000 Y132M-4  7.5
1160  3450-8427  1029-853 Y 132S-4 5.5
1060  3141-7670  862-715 Y112M-4  4



6C 965 3141-7670 715-588 Y100L2-4 3
