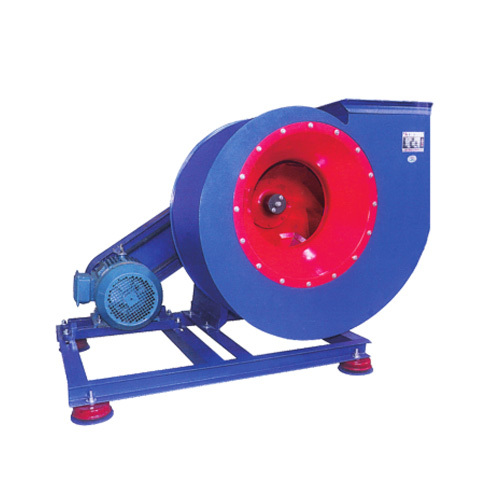

 C4-73 type dust extraction centrifugal blower


C4-73 centrifugal blower has the characteristics of not easy to accumulate dust and wear resistance, suitable for discharging dust, wood chips, fine fibers and other gases (if it contains hard plasmids, dust removal device must be added in front of the blower), and can also be used as general ventilation. The blower is mainly composed of impeller, air inlet, casing, transmission part and motor. Fans are available in right-handed and left-handed versions.

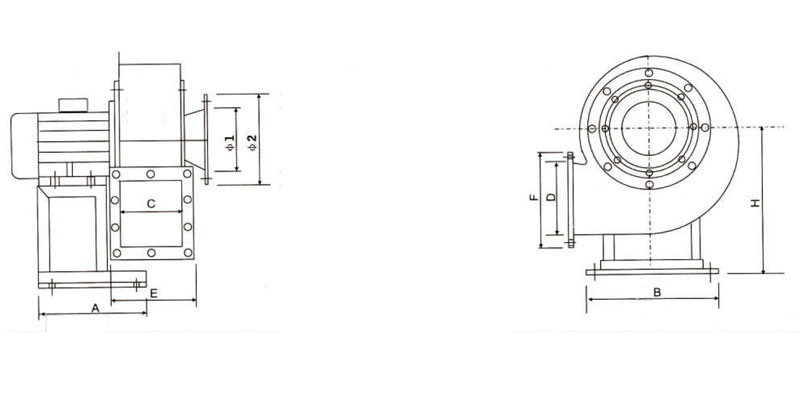

Schematic diagram



The main parameters



Number

rotate speed(r/min)

Equipped with motor(Kw-p)

flow rate(m³/h)

Full pressure(Pa)

3.6C

4000

7.5-2

4250-7760

3138-1863

3150

4.0-2

3100-5750

1863-1127

2500

2.2-2

2640-4870

1225-735

2240

1.5-2

2380-4350

1029-588

1800

0.75-4

1930-3510

637-392

1600

0.75-4

1725-3150

490-294

4.5C

3550

2-15

7400-13500

3922-2255

2800

7.5-2

5800-10500

2451-1422

1800

2.2-2

3700-6800

980-588

1400

1.1-4

2900-5300

608-362

5.5C

2800

2-22

10600-19350

3667-2177

2240

11-2

8400-15350

2314-1372

1800

5.5-2

6800-12400

1471-872

1400

3-2

5260-9650

902-539

1120

1.5-4

4220-7700

578-343


Number

A

B

C

D

E

F

1

2

G

H

3.6C

460

850

255

290

315

350

360

415

250

440

4.5C

460

850

320

360

380

420

450

510

300

520

5.5C

580

1000

390

440

450

500

550

610

370

580
