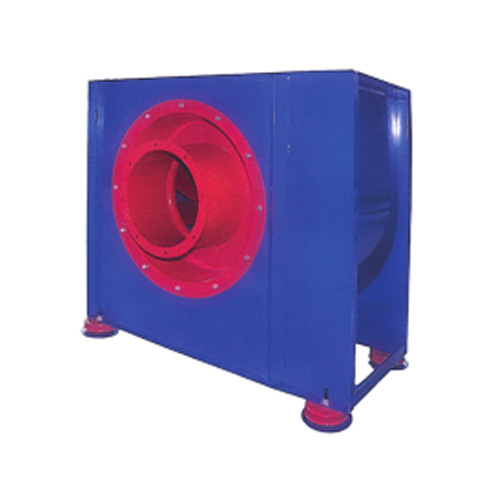

 FC6-48 type textile dust exhaust ventilator


FC6-48-11 Textile Dust Exhaust Blower is a product trial-made for the cleaning and cotton absorption of cotton in the dust removal system of textile mills. This product can also be used to convey raw cotton, wool or other fibers Quality. The mechanism is divided into two kinds of right-handed and left-handed, from the motor end or the bearing seat end to the impeller clockwise rotation is called the right cyclone, on the contrary, it is the left-hand cyclone, and the outlet position of the blower is the machine.
The angle of the air outlet of the shell is indicated. This series of blowers is designed with No.3.55.4 4.5. 5. 6.3. 8. 9. 10、 11.2. 12.5 A total of 10 specifications, using C-type transmission and A-type transmission. Users can choose according to the working conditions.
This machine is mainly composed of impeller, air inlet, actuator, seat, protective parts, etc. The impeller is made of 8 sheets, 10 sheets, and the straight plate blade is connected to the shaft disc - body, and the dynamic balance is checked and the operation is flat
The material is ZL104 aluminum Taiwan gold first, which has the characteristics of explosion-proof and non-spark-producing; The impeller is semi-open, and the surface is filed, which has the characteristics of non-sticking and non-clogging.



Schematic diagram



The main parameters

No

r/min

Kw

m³/h

Pa

3.55A

2880

4

1330-3100

1815-1115

4A

2880

5.5

1980-4645

2345-1445

4.5A

2880

5.5

3960-6155

2345-1445

5A

2880

7.5

4320-6515

2345-1445

6.3A

1440

7.5

3275-7670

1263-777

6A

970

11

9504-16344

1217-939

9A

970

18.5

13752-24390

1493-1154

No

r/min

KW

m³/h

Pa

3.55C

2880

4

1330-3100

1815-1115

4C

2880

5.5

1980-4645

2345-1445

1440

4

1475-3460

820-504

4.5C

2120

5.5

2130-5005

1710-1050

1440

4

1980-4680

998-613

5C

1950

7.5

2770-6515

1883-1180

1440

7.5

3275-7670

1263-777

6.3C

1660

11

3890-9150

1805-1110

920

7.5

8565-14760

1078-829

8C

1000

11

9795-16850

1294-998

1140

15

11160-19190

1617-1248

860

11

12020-21280

1160-894

920

15

12890-22790

1323-1019

9C

1000

18.5

14190-25060

1587-1227

1100

22

15300-27040

1841-1421

820

15

13750-24560

1184-916

900

18.5

15050-26820

1419-1098

10C

970

22

16235-28980

1649-1279

1070

30

18290-37020

2090-1617

730

15

15700-28040

1103-850

820

18.5

17170-30670

1325-1029

11.2C

860

22

18000-32330

1474-1144

970

30

20270-36220

1844-1426

560

15

20730-37202

892-696

600

18.5

22210-39660

1029-794

12.5C

630

22

23320-41650

1127-882

740

30

27390-37250

1559-1216

740

30

42340-46280

1559-1216

740

30

48920

1559-1216

780

37

28870-51560

1735-1343
