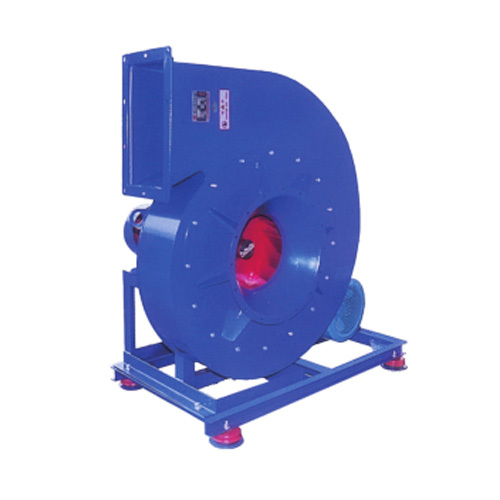

 Y6-41 Series boiler induced draft blowers


This product is the induced draft blower of various industrial boilers with evaporation capacity of 0.5~10t/h, there are two types of left-handed and right-handed are single suction, and the air outlet position "left" and "right" can be made into 0°, 90°, 180°, 270°Four angles. The transmission mode of the blower is C and D, and the adjustment door, base and shock absorber can be configured according to the user's needs.

Schematic diagram



The main parameters

Number

rotate speed(r/min)

Equipped with motor(Kw-p)

flow rate(m³/h)

Full pressure(Pa)

3.55C

2950

1.5-2

2962-841

588-1448

4C

3450

3.0-2

3996-1355

1893-2676

4.5C

2925

4.0-2

4970-2317

1667-2327

3250

5.5-2

5522-2574

2058-2873

5.4C

2600

7.5-2

7980-3900

2002-2604

2900

11-2

8901-4350

2491-3240

7.1C

2100

4-15

15100-7800

2230-2990

2200

18.5-4

15820-8170

2500-3280

9C

1650

4-22

24020-12410

2190-2930

10C

1600

4-37

32140-16600

2570-3450

Number

A

B

C

D

E

F

1

2

N

H

3.55C

450

850

115

230

175

290

230

290

250

430

4C

500

950

135

260

195

320

250

310

280

450

4.5C

500

1000

155

286

215

346

280

340

310

500

5.4C

500

1200

190

345

250

405

340

420

470

550

Number

A

B

C

D

E

F

1

2

G

H

7.1C

770

1350

230

450

310

530

440

520

500

780

9C

1100

1750

290

570

370

650

550

640

630

950

10C

1300

1850

320

630

420

730

620

720

700

1050
