Product Details

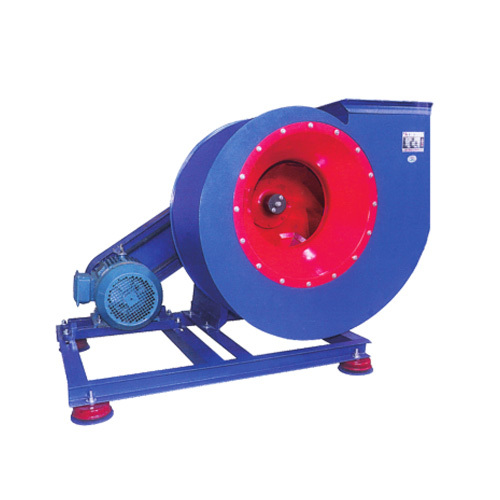

 Boiler centrifugal blower of type Y5-48

Y 5 - 48 boiler centrifugal induced draft blower, is designed for industrial boilers (1-20 tons/hour) equipped with smoke and dust removal devices that are suitable for burning various coal qualities. All the intake conditions are comparable and the performance is suitable, but the maximum temperature shall not exceed 250 °C. The medium of the blower is flue gas, the gas temperature of Y5-48N.4C~6C is 200 °C, and the gas density is 0.745kg/m³. No.8C~12.5C, the gas temperature is 140C, and the gas density is 0.851kg/m³. Before the induced draft blower, a dust removal device must be added to ensure that the dust content of the flue gas entering the blower is less than 400mg/m³.

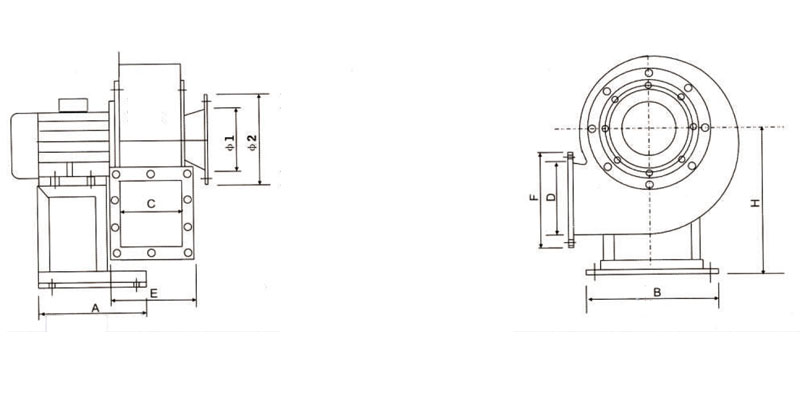

Schematic diagram



The main parameters

Number

rotate speed(r/min)

Equipped with motor(Kw-p)

flow rate(m³/h)

Full pressure(Pa)

4C

3250

5.5-2

2932-5564

2221-1501

3150

4.0-2

2602-4937

1746-1180

2800

3.0-2

2313-4388

1377-932

2500

2.2-2

2065-3622

1097-742

5C

3150

11-2

5304-9851

2819-1913

2800

7.5-2

4515-8757

2223-1509

2500

5.5-2

421-7818

1769-1202

2240

4.0-2

3772-7005

1416-964

6.3C

2800

2-22

9432-17516

3545-2403

2500

2-15

8421-15639

1819-1913

2240

11-2

7546-14013

2259-1533

2000

7.5-2

6737-12511

1798-1221

8C

2000

4-30

13794-25619

3323-2253

1800

4-22

12415-23057

2686-1823

1600

4-15

11035-20495

2118-1438

1400

11-4

9656-17933

1619-1100

10C

1800

75-4

22250-44634

4483-2958

1600

55-4

19778-39674

3531-2332

1400

37-4

17305-34715

2696-1782

1250

4-22

15451-30995

2145-1419

12.5C

1400

110-4

33800-67803

4234-2794

1250

75-4

30179-60538

3365-2223

1120

55-4

27040-54242

2696-1782

1000

37-4

24143-48431

2145-1419
