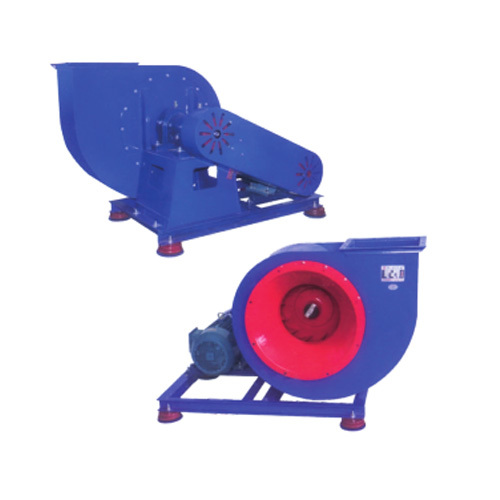

Y 5 - 47 boiler centrifugal induced draft blower has the characteristics of low noise, simple structure, flexible adjustment of air volume and wind direction, and is suitable for burning various coal quality and equipped with smoke and dust removal device of industrial boiler gas supply temperature ≤ 250 °C. The fan transmission mode is C type and D type, with water-cooled integral bearing housing and air volume adjustment door. If the shock absorber is selected, the user can directly place the blower on the concrete floor level without foot bolts, which is easy to install and debug.
Number(No.) |
rotate speed(r/min) |
Equipped with motor(Kw-p) |
flow rate(m³/h) |
Full pressure(Pa) |
3.15C |
3250 |
1.5-2 |
1323-2496 |
1049-716 |
2990 |
1.5-2 |
1218-2297 |
883-608 |
|
2750 |
1.5-2 |
1120-2112 |
745-520 |
|
4C |
3300 |
4.0-2 |
2751-5190 |
1922-1393 |
2900 |
3.0-2 |
2417-4561 |
1481-1079 |
|
2870 |
3.0-2 |
2393-4514 |
1451-1059 |
|
5C |
2900 |
7.5-2 |
4723-8909 |
2324-1687 |
2620 |
5.5-2 |
4267-8048 |
1893-1373 |
|
2900 |
7.5-2 |
4723-8909 |
2324-1687 |
|
5.5C |
2900 |
11-4 |
11200-4000 |
1580-2260 |
6C |
2850 |
18.5-2 |
8020-15129 |
3150-2160 |
2620 |
2-15 |
3364-2452 |
2844-2069 |
|
6.3C |
2930 |
2-22 |
8245-17300 |
3550-2589 |
7C |
2600 |
37-4 |
11529-21250 |
3756-2750 |
8C |
1820 |
4-22 |
25360-13780 |
1730-2530 |
9C |
1740 |
37-4 |
34550-18780 |
2000-2920 |
10C |
1450 |
4-30 |
39490-21470 |
1667-2440 |
12C |
1450 |
75-4 |
37080-68300 |
3570-2440 |

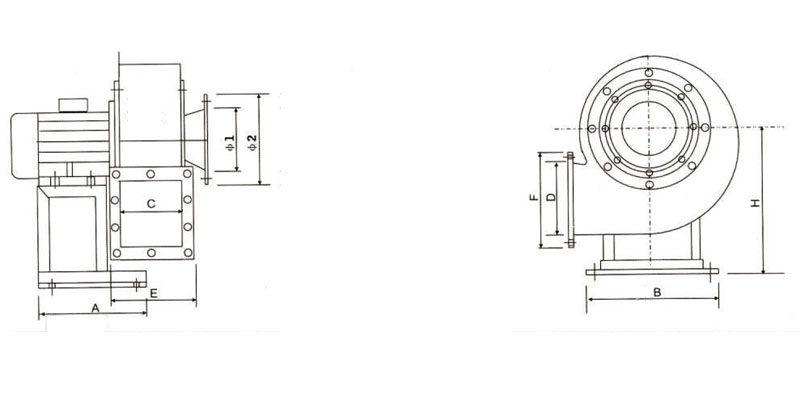

Number |
A |
B |
C |
D |
E |
F |
1 |
2 |
G |
H |
3.15C |
460 |
850 |
155 |
200 |
215 |
260 |
320 |
360 |
205 |
420 |
4C |
460 |
850 |
200 |
255 |
260 |
315 |
400 |
460 |
245 |
510 |
5C |
580 |
1000 |
250 |
315 |
310 |
375 |
500 |
560 |
335 |
636 |
6C |
580 |
1300 |
300 |
380 |
380 |
460 |
600 |
660 |
400 |
760 |
6.3C |
580 |
1300 |
315 |
400 |
395 |
480 |
630 |
690 |
390 |
760 |
