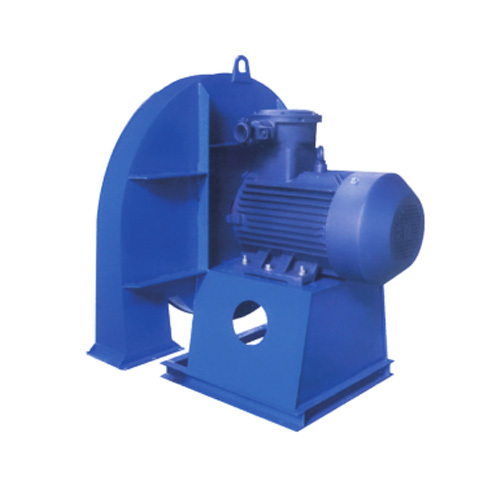

 B9-19 High pressure explosion-proof blower


B9-19 high-pressure centrifugal fan can be widely used to convey materials, air and non-corrosive, non-spontaneous combustion and non-sticky gases. The temperature of the conveyed medium generally does not exceed 80 °C, and the dust and hard particles contained are not more than 150 mg/m³. It is suitable for high-voltage forced ventilation and material transportation in grain, feed, mineral powder, plastics and other processing industries in general forging, glass, ceramics, radio, electroplating, battery and other industries, and the impeller is aluminum alloy, and the motor explosion-proof type.

Schematic diagram


The main parameters

Number

rotate speed(r/min)

Equipped with motor(Kw-p)

flow rate(m³/h)

Full pressure(Pa)

4A

2900

3.0-2

824-1704

3584-3253

4.5A

2900

5.5-2

1174-2504

4603-4112

5A

2900

11-2

1610-3488

5697-5080

5.6A

2900

18.5-2

2262-4901

7182-6400

6.3A

2900

30-2

3220-6978

9149-8148

Number

A

B

C

D

E

F

1

2

G

H

4A

340

415

95

135

155

195

200

260

310

465

4.5A

340

420

100

140

160

200

200

260

315

490

5A

370

440

120

155

180

215

200

260

335

500

5.6A

430

440

130

175

190

235

230

290

370

540

6.3A

460

540

150

190

210

250

290

340

435

550
