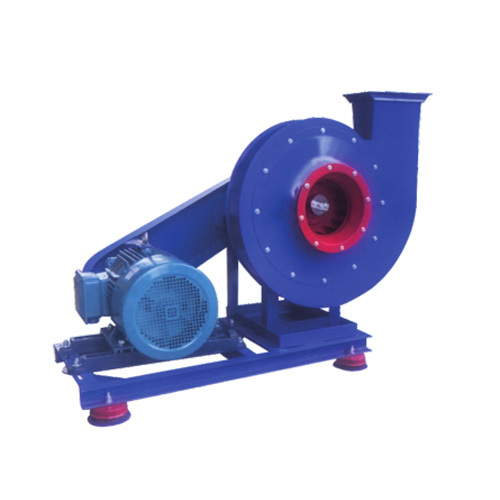

9-19 9-26 C High pressure centrifugal blower

Schematic diagram

The main parameters

Number（No.）	rotate speed(r/min)	Equipped with motor(Kw-p)	flow rate(m³/h)	Full pressure(Pa)
4C	2900	5.5-2	2198-3215	3852-3407
4.5C	2900	11-2	3130-4792	4910-4256
5C	2900	18.5-2	4293-6762	6035-5180
5.6C	2900	30-2	6032-9500	7616-6527
6.3C	2900	55-2	8588-13525	9698-8310
7.1D	2900	110-2	12292-19360	12427-10635
8D	2900	200-2	17584-27696	15955-13634
	1450	30-2	8792-13848	3834-3294
9D	1450	45-4	12518-19717	4869-4181
10D	1450	75-4	17172-30052	6143-5056
11.2D	1450	132-4	24126-42221	7747-6382
	960	37-6	15973-27953	3346-2763
12.5D	1450	250-4	33540-58695	9713-7993
	960	75-6	22206-38860	4179-3450
14D	1450	410-4	47121-82463	12285-10096
	960	110-6	31197-54596	5262-4341
16D	1450	850-4	70339-123090	16250-13324
	960	220-6	46569-81496	6911-5696

Number	A	B	C	D	E	F	1	2	G	H
4C	440	420	130	196	190	256	220	585	308	472
4.5C	530	490	145	220	205	280	250	310	390	560
5C	540	520	160	245	220	305	280	320	380	540
5.6C	730	560	180	275	240	335	320	365	410	630
6.3C	800	620	202	310	262	370	360	410	463	685
