Product Details

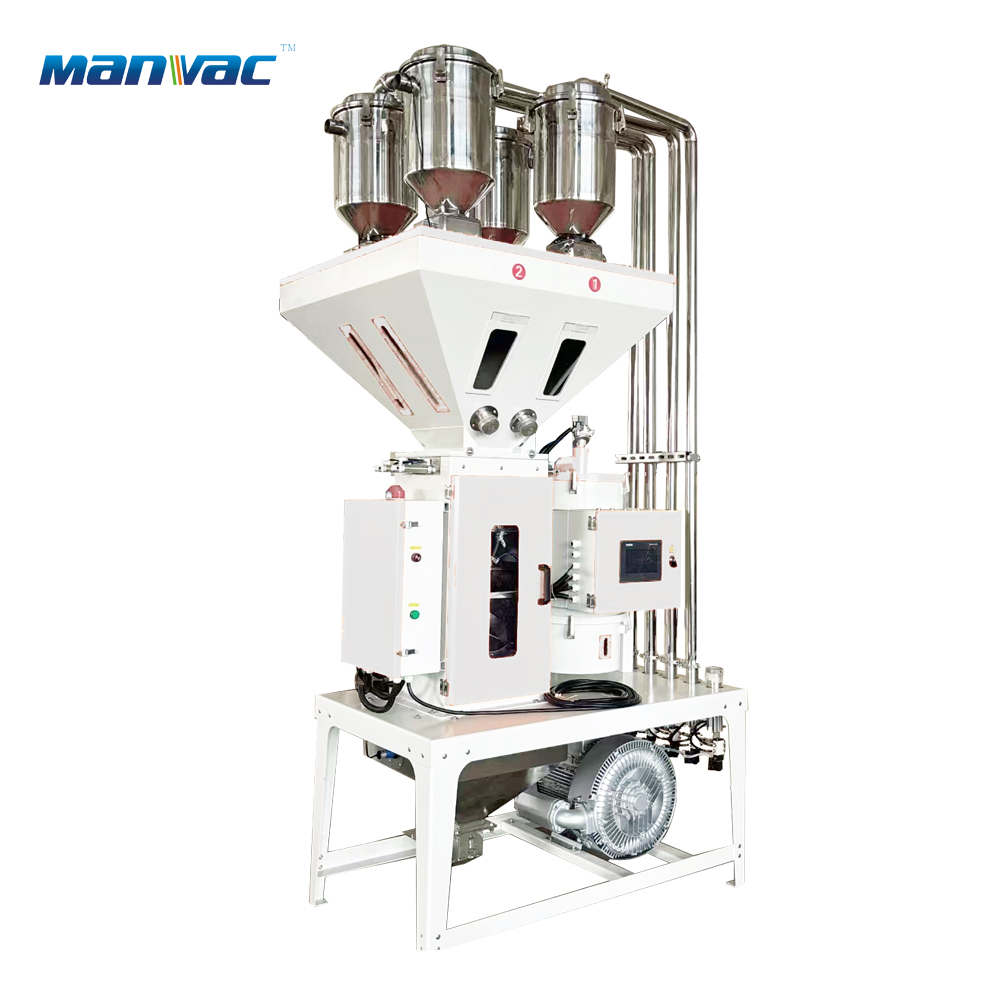

Gravimetric Weight Mixer / Blender /Gravimetric Dosing Unit for Plastic Granules


Gravimetric Batch Blender
The modulized components can be disassembled for easy cleaning.
The adopted PLC panel shows reliable performance and easy maintenance.
The adopted functions such as advanced algorithm of controlling, autonomous optimization, automatic calibration and
anti-vibration, can ensure the highest accuracy.
The standard models can process four dosing. (Six-dosing modules can be customized)
Touch screen operation is achieved with multiple languages option and diagrams with colors.
Model
MV-200-7
Components
4
Mixing Capacity
200kg/hr
Batch Weight
2.2kg
Main Material Dosing Range
5%-100%
Additive Material Dosing Range
0.5%-10%
Main Hopper Volume
32L
Additive Hopper Volume
32L
Mixing Barrel Volume
20L
Total Power
0.25kw /220v 1p 50/60hz
Compressed Air
6-8kg/cm²
Max Noise
＜75dB
