Product Details

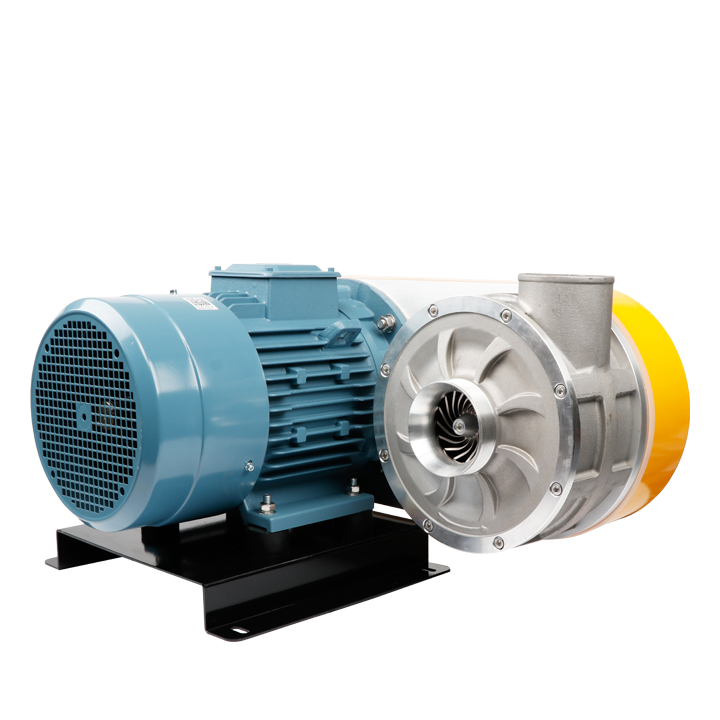

Manvac high speed belt drive centrifugal blower is a powerful and efficient machine that provides numerous advantages to different industries. Here are some of the many benefits of using a high speed belt drive centrifugal blower:

1. High Efficiency: The high speed belt drive centrifugal blower is designed for maximum efficiency. With its advanced technology and design, this machine can deliver high volumes of air or gas at a very low energy cost.

2. Operates Quietly: Unlike other types of blowers, the high speed centrifugal blower operates with minimal noise. This means that it can be used in any setting without causing unnecessary disturbance.

3. Provides Versatility: The high speed centrifugal blower is versatile and can be used in a wide range of applications. It is specifically designed to meet different requirements, making it ideal for different industries such as food processing, pharmaceutical, chemical, and many others.

4. Easy to Install and Maintain: High speed centrifugal blowers are designed to be easy to install and maintain. Once installed, they require minimal maintenance, which makes them a cost-effective investment for businesses and industries.

5. Durable and Long-Lasting: The high speed centrifugal blower is made with high-quality materials, which makes it robust and durable. This means that it provides long-lasting service and requires minimal replacement.

In conclusion, the high speed belt drive centrifugal blower is a powerful and efficient machine that provides numerous advantages to different industries. With its high efficiency, quiet operation, versatility, ease of installation and maintenance, durability, and long-lasting service, it is an excellent investment for businesses and industries looking to improve their operations.


Model



Motor





Power

Voltage

Max airflow

Frequeny

Pressure

Vacuum

inlet&out

Weight

(KW)

(V)

(m³/h)

(Hz)

(mbar)

(mbar)

(mm)

KG

MANVAC-70-5.5

IEC/NEMA

5.5(7.5HP)

380

1200

50

240

-220

102mm &76mm

91

MANVAC-70-7.5

IEC/NEMA

7.5(10HP)

380

1470

50

260

-225

102mm &102mm

101

MANVAC-85-7.5

IEC/NEMA

7.5(10HP)

380

1700

50

180

-170

102mm &102mm

103

MANVAC-100-11

IEC/NEMA

11(15HP)

380

1700

50

240

-220

102mm &102mm

140

MANVAC-150-15

IEC/NEMA

15(20HP)

380

2100

50

240

-230

102mm &102mm

156

MANVAC-150-18.5

IEC/NEMA

18.5(25HP)

380

2125

50

290

-270

102mm &102mm

185
