Product Details


■ Operating efficiency beyond imagination (≥85%)

Manvac EXP series high-speed centrifugal fans compared with other similar high-speed centrifugal fans, under the same power and pressure,the air volume of DPT series high-speed centrifugal fans is more than 30% higher.

■ Longer life

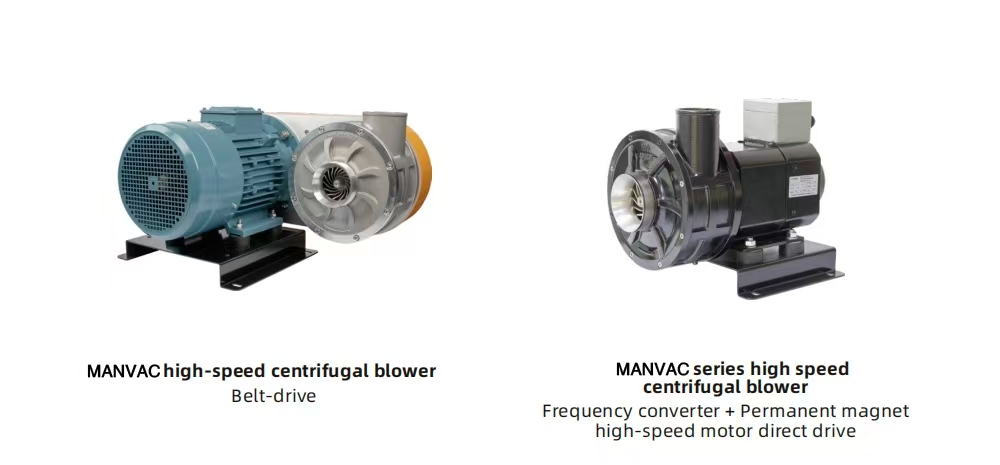

Manvac EXP' series high-speed centrifugal fans are directly driven by efficient permanent magnet synchronous motor and inverter, without belt, tightening wheel system and other wearing parts, with higher stability and longer service life.

■ Lower energy consumption

Manvac EXP series high-speed centrifugal fans DPT-85(7.5Kw) operate with the same flow and blowing force as Manvac -100(11Kw), resulting in higher efficiency with lower energy consumption and an annual power saving of 25,000 KWH.

■ Wider application range

Manvao EXP series high-speed centrifugal fans are only 50% of the volume and weight of belt driven series high-speed centrifugal fans, making installation and transportation more convenient. European standard IE3 or E4 permanent magnet high efficiency motor can be selected. Special models can withstand the temperature of 200℃ to inhale water vapor can still operate normally.









Model

Power

Voltage

Frequency

Max airflow

Pressure/Vacuum

Current

inlet&out

Speed

Weight

(KW)

(V)

(Hz)

(m³/h)

(mbar)

(A)

(mm)

rpm

KG

EXP-65-4

4.0KW





380

500Hz





1400m3/h





180mbar /

-160mbar





10.8





76mm(3"）

&102mm(4"）





15000





32

EXP-70-5.5


5.5kw
(7.5HP)

380

560Hz

1620(m³/h)

200mbar / -180mbar





14.5

76mm(3'') &102mm(4'')

16800

33

EXP-85-7.5

7.5kw (10HP)

380

600Hz

1800(m³/h)

240mbar / -200mbar





16

76mm(3'') &102mm(4'')

18000

34

EXP-100-11

11kw (15hp)

380

600Hz

2400(m³/h)

260mbar / -200mbar

23

102mm(4') &135mm

18000

43

EXP-150-15

15kw (20hp)

380

600Hz

2500(m³/h)

260mbar / -240mbar





33.5

102mm(4') &135mm

18900

45

EXP-200-18.5

18.5kw ( 25hp)

380

650Hz

2650(m³/h)

280mbar / -260mbar





38.7

102mm(4') &135mm

19500

48

EXP-300-22

                     22KW





380

                 700Hz





           2800m3/h





300mbar /

-280mbar





45.0

102mm(4"）

&135mm





21000

48
