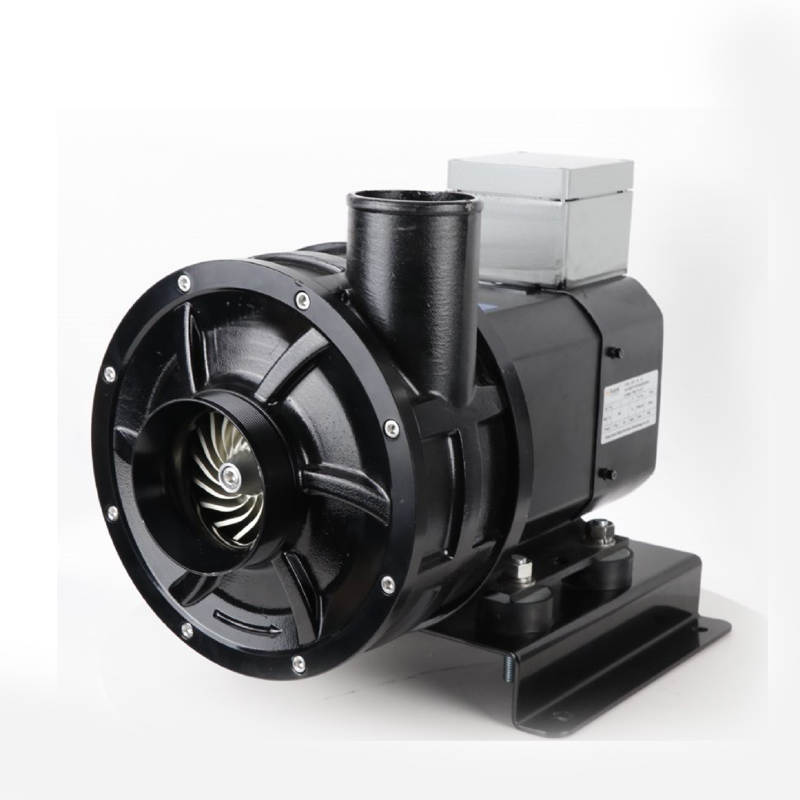

22kw Direct Drive Away Core Fan

Model:22kw Direct Drive Away Core Fan

Phase:3
Stage:
Frequency:700 (HZ)
Power:22 (kw)
Voltage:380 (V)
Current:45 (A)
AirFlow:2800 (m3/h)
Vacuum:-280 (mBar)
Pressure:300 (mBar)
Sound:85 (Db)
Weight:48 (kg)

Dimensions(L*W*H): (mm)

Product Details

■ Operating efficiency beyond imagination (≥85%)

Manvac EXP series high-speed centrifugal fans compared with other similar high-speed centrifugal fans, under the same power and pressure,the air volume of DPT series high-speed centrifugal fans is more than 30% higher.

■ Longer life

Manvac EXP' series high-speed centrifugal fans are directly driven by efficient permanent magnet synchronous motor and inverter, without belt, tightening wheel system and other wearing parts, with higher stability and longer service life.

■ Lower energy consumption

Manvac EXP series high-speed centrifugal fans DPT-85(7.5Kw) operate with the same flow and blowing force as Manvac -100(11Kw), resulting in higher efficiency with lower energy consumption and an annual power saving of 25,000 KWH.

■ Wider application range

Manvao EXP series high-speed centrifugal fans are only 50% of the volume and weight of belt driven series high-speed centrifugal fans, making installation and transportation more convenient. European standard IE3 or E4 permanent magnet high efficiency motor can be selected. Special models can withstand the temperature of 200℃ to inhale water vapor can still operate normally.

Model	Power	Voltage	Frequency	Max airflow	Pressure/Vacuum	Current	inlet&out	Speed	Weight
Model	(KW)	(V)	(Hz)	(m³/h)	(mbar)	(A)	(mm)	rpm	KG
EXP-65-4	4.0KW	380	500Hz	1400m3/h	180mbar / -160mbar	10.8	76mm(3"） &102mm(4"）	15000	32
EXP-70-5.5	5.5kw (7.5HP)	380	560Hz	1620(m³/h)	200mbar / -180mbar	14.5	76mm(3'') &102mm(4'')	16800	33
EXP-85-7.5	7.5kw (10HP)	380	600Hz	1800(m³/h)	240mbar / -200mbar	16	76mm(3'') &102mm(4'')	18000	34
EXP-100-11	11kw (15hp)	380	600Hz	2400(m³/h)	260mbar / -200mbar	23	102mm(4') &135mm	18000	43
EXP-150-15	15kw (20hp)	380	600Hz	2500(m³/h)	260mbar / -240mbar	33.5	102mm(4') &135mm	18900	45
EXP-200-18.5	18.5kw ( 25hp)	380	650Hz	2650(m³/h)	280mbar / -260mbar	38.7	102mm(4') &135mm	19500	48
EXP-300-22	22KW	380	700Hz	2800m3/h	300mbar / -280mbar	45.0	102mm(4"） &135mm	21000	48
