Product Details

 Product Overview

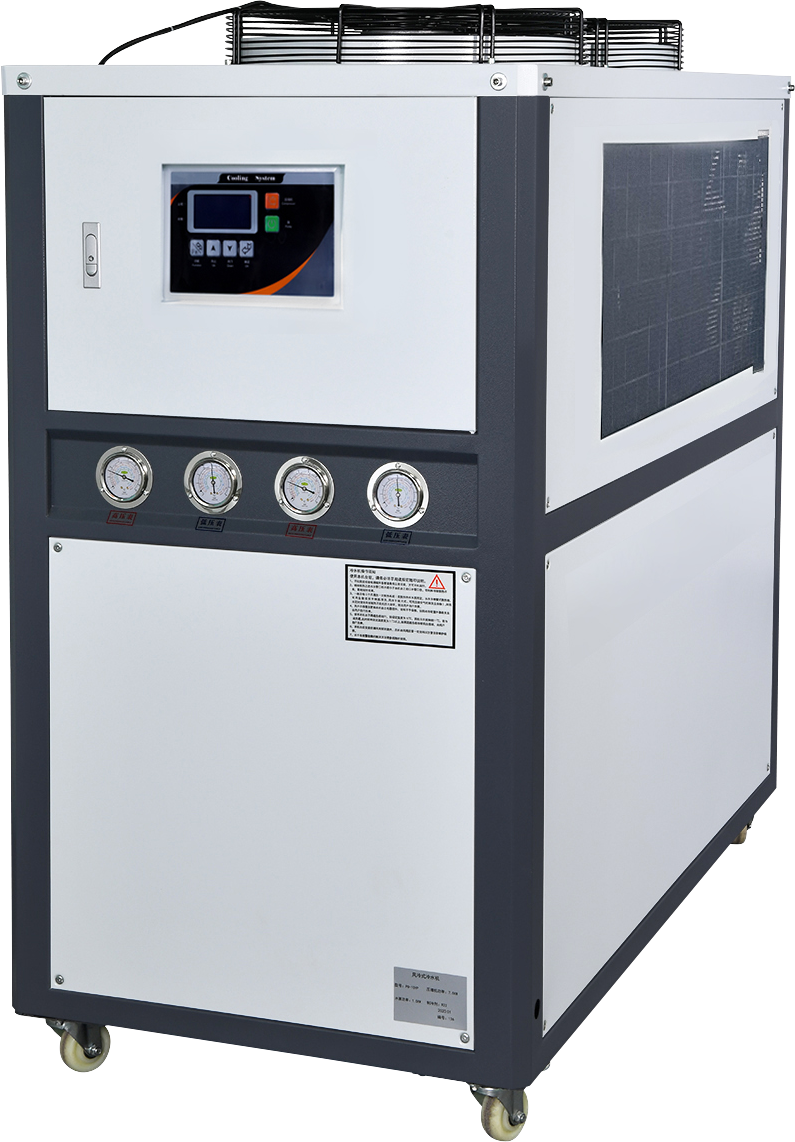

AIR COOLING CHILLER

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation
design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.
FEATURES AT A GLANCE

1.Microcomputer Controller

2.Drying Filter System

3.Efficient Cooling System

4.High and Low Pressure Protection System
5.Water Pumps

PRODUCT SPECIFICATIONS
Model
Unit
1HP
3HP
5HP
8HP
10HP
15HP
25HP
Refrigerating capacity
Kcal/h
2500
7500
12500
20000
25000
37500
52500
Refrigerant
Type
R22 Thermal expansion valve
Compressor power
Hp
1
3
5
8
10
15
25
Fan Cooler
power
0.15
0.15*2
0.21*2
0.25*2
0.25*2
0.6*2
0.98*2
Water Tank
L
50
100
100
180
300
300
460
Pump
Power
0.37
0.37
0.37
1.1
1.5
1.5
2.2
lift(m)
14
16
16
22
22
22
22
