Material of Parts |
|
|
Outllet: |
Cast lron |
|
Pump body: |
Stainless steel/ Cast iron |
|
Impeller. |
Brass |
|
Motor Body: |
Die cast Aluminum |
|
Bearing: |
NSK |
|
Screw: |
Stainless Steel |
|
Motor: |
Brushless DC motor |
|
Controller shell: |
Die - cast Aluminum (IP67) |
Material of Parts

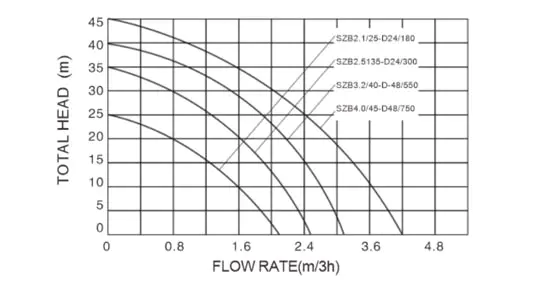

Curve

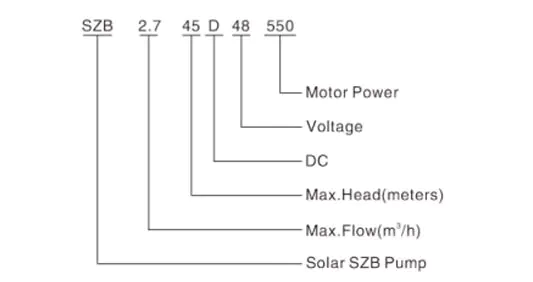

Model Expla nation
|

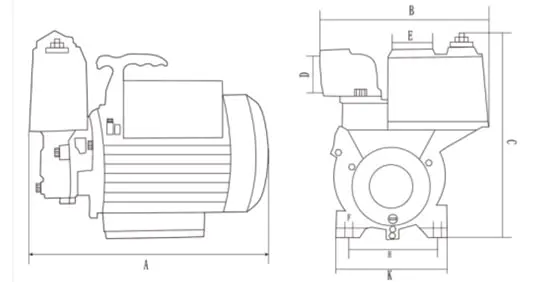

Model |
A |
B |
C |
D |
E |
F |
G |
H |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
SZB2.1/25-D24/180 |
220 |
220 |
205 |
1 |
1 |
7.5 |
93 |
115 |
|
SZB2.5/35-D24/300 |
220 |
220 |
205 |
1 |
1 |
7.5 |
93 |
115 |
|
SZB3.2/40-D48/550 |
285 |
285 |
250 |
1 |
1 |
10 |
110 |
135 |
|
SZB4.0/45-D48/750 |
285 |
285 |
250 |
1 |
1 |
10 |
110 |
135 |

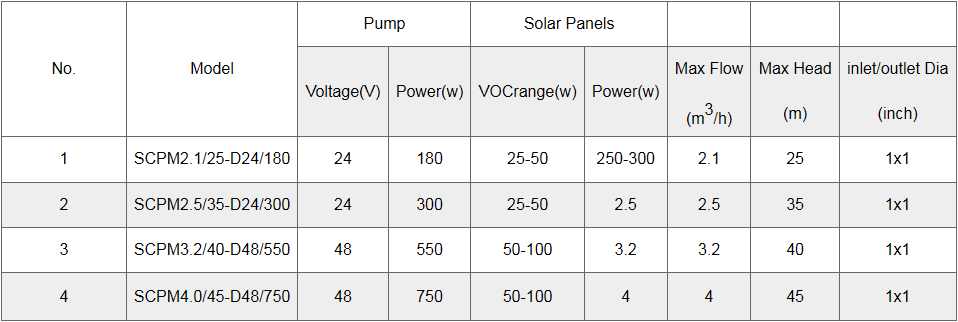

Technical data
Our factory located in dongguan, with 6000m2 area,three buildings for produce, half finished products stock, and finished products warehouse.
